Dorma ED800 J User Manual

MAIN
ARM
6 mm HEX KEY
LOCK WASHER
PINION SCREW
ARM SHOE
ROD
CONNECTING
ARM

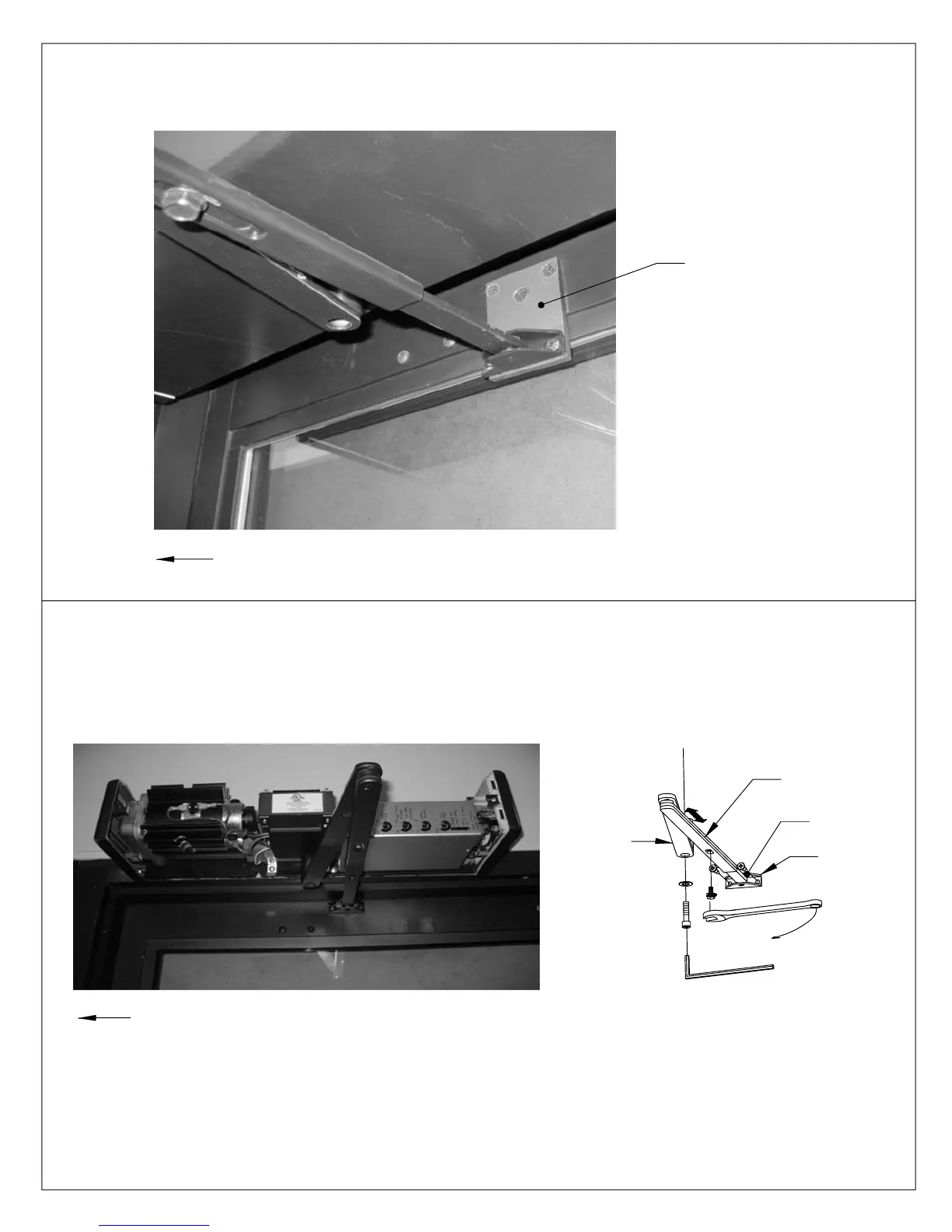

If required, attach 830 arm shoe drop plate to top rail with three screws provided.
Orient arm as shown. Attach arm shoe to door or 830 arm shoe drop plate. Place wrench on top
pinion shaft and rotate pinion slightly toward latch edge of door. Slide main arm over bottom pinion
shaft. Fasten securely with pinion screw and lock washer provided. Loosen screw in connecting
arm so arm slides freely. Adjust connecting arm length so rod and connecting arm are 90° to door.
Re-tighten screw.
08102710 05/07ED800-10
830 DROP PLATE
HINGE SIDE OF DOOR
HINGE SIDE OF DOOR

Dorma ED800 J Specifications

Power

voltage	120 Volts AC
operating frequency	50/60 Hz
current	2 Amp

Fuse Specifications

fuse current	3 Amp
fuse type	type AGC
fuse size	1/4" x 1 1/4"

Auxiliary Power Output

auxiliary voltage range	10 to 25 Volts DC
auxiliary current	500mA
relay contact rating	48 VAC/DC @ 1 Amp Max.

Radio Frequency Receiver

frequency	300 MHz std. or 310 MHz jumper selectable
supply voltage	12 - 30 Volts AC/DC
power consumption rest	16mA

Wall Switch Specifications

switch type	SPDT
switch rating	15 Amp @ 125 or 250 Volts AC
battery type	9 Volt NEDA 1604
