6 79/RT/E7900/770/E-760/660 Series PK3678_T 04-18

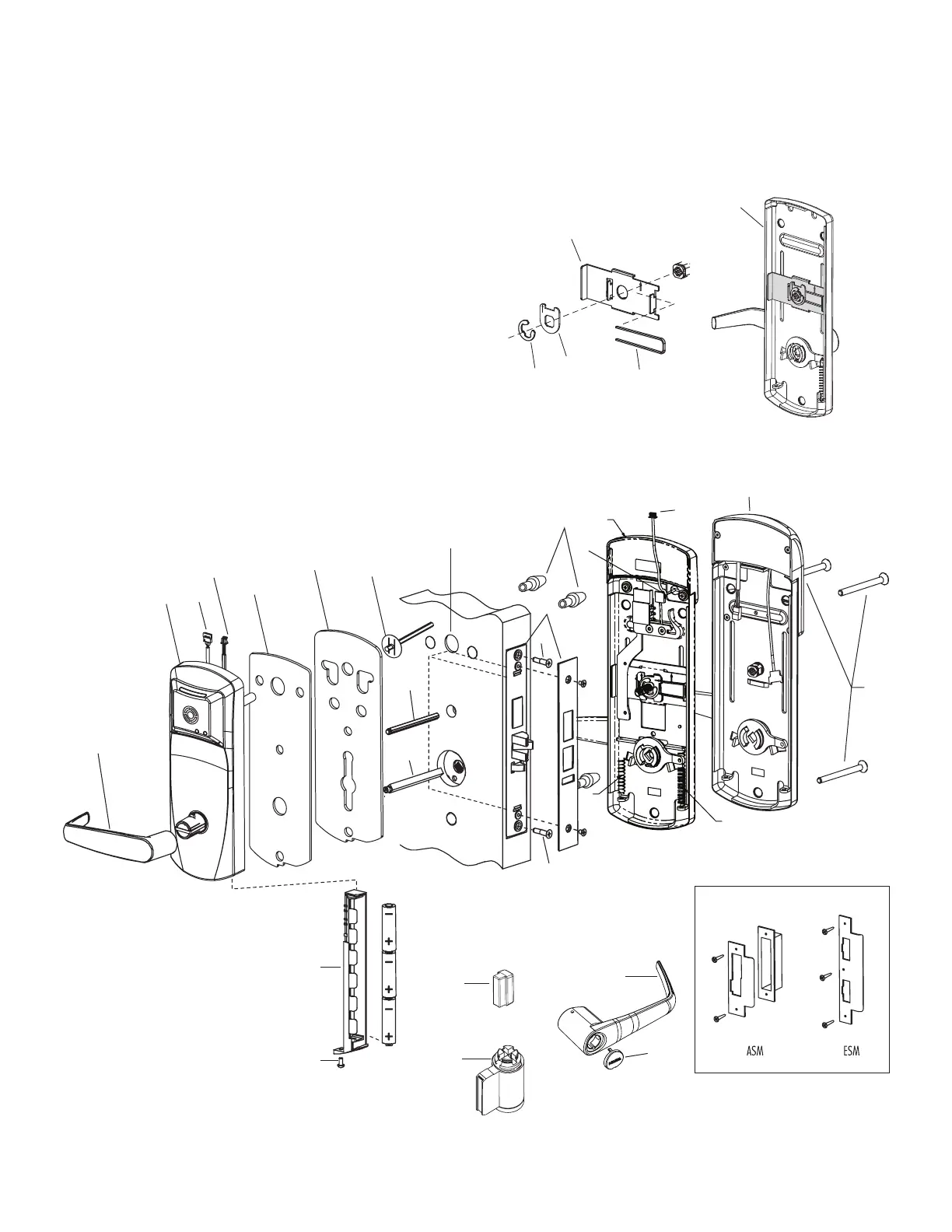

2.3 Autodeadbolt ASM Inside Trim Assembly
NOTE: The inside trim assembly (E1), (E2) and (E3) for auto-
deadbolt models includes the parts (M1 TO M4) shown, as-
sembled at the factory.
For ASM Office and ASM/ESM Store-room models, only
some of the parts (M) are used. See instructions in Appendix
A.3 and A.4.
Parts (M) also available separately (kit #062-510484) to
convert the standard lock to Autodeadbolt ASM, ASM Of-
fice or ASM/ESM Storeroom functions.
2.4 ASM, ESM, 79T Toggle Mode (For cylindrical, see
appendix B and section 2.7).
E1/E2
M4
M3
M2
M1
Fully assembled view
2 Checklist and Exploded Views
A
C
C2
B
H1
N
N
F1
E3
F2
D
S
W
W
I
E2
G
J
L
L
J
K
A3
A2
A1
A4
W
W
Note: D - American Standard Mortise illustrated.
For all model
except E-7900
To Next Page
