Dormakaba ED 100 Mounting Instructions

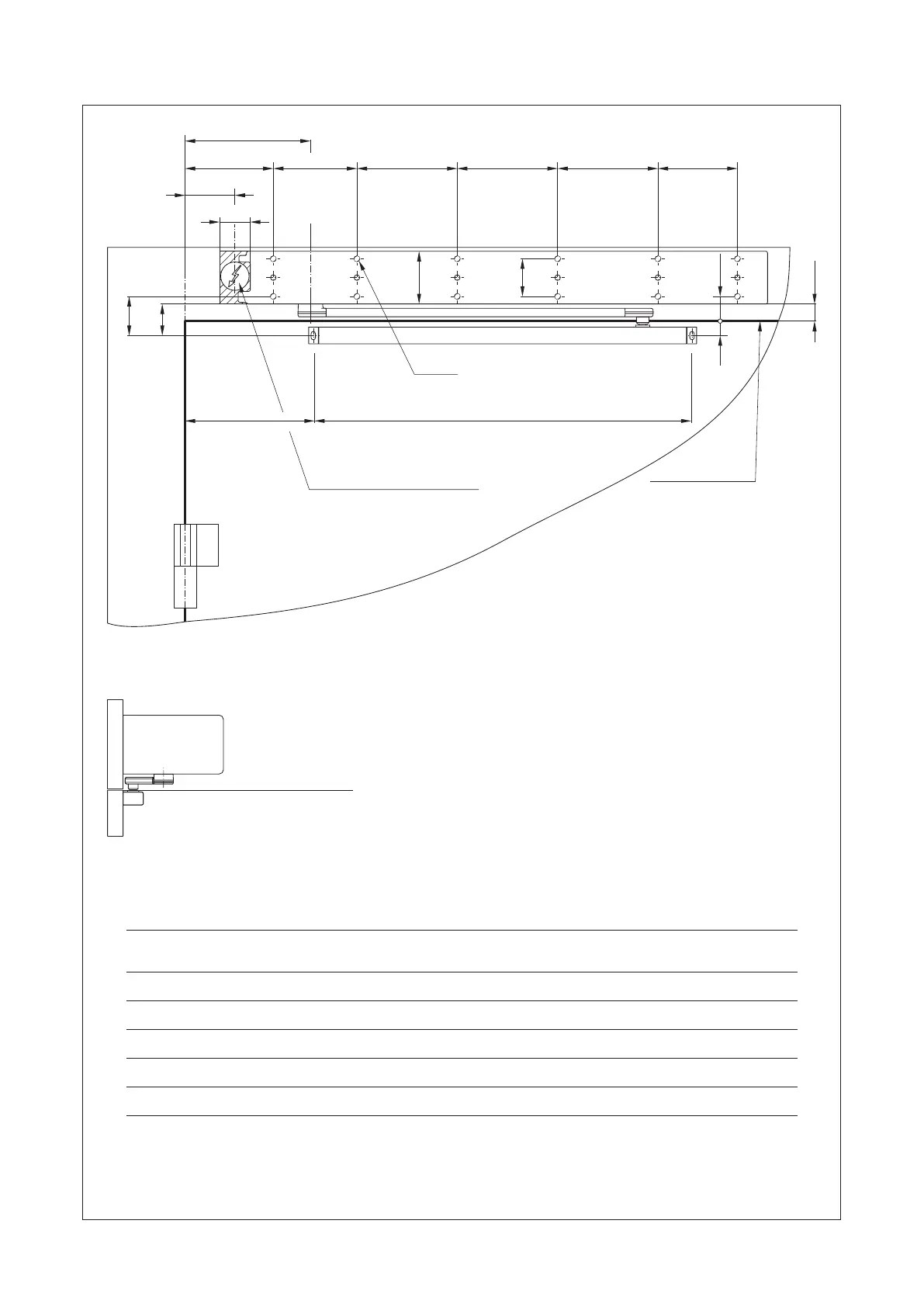

Assembly on the hinge side pull version with slide channel and short lever bolt
45
150
106
45
120 120 95
451
155
B
D
A
C
120100
32
17
63
Ø 6,6
Upper edge door
Upper edge door
Lintel depth maximum ± 30 mm
Space for cable feed
Door without rabbet
Axis extension ED 100 ED 250 A B C D
Standard ● ● 31 mm 50 mm 22 mm 41 mm
20 mm ● ● 51 mm 70 mm 42 mm 61 mm
30 mm ● ● 61 mm 80 mm 52 mm 71 mm
60 mm ● ● 91 mm 110 mm 82 mm 101 mm
90 mm --- ● 121 mm 140 mm 112 mm 131 mm
11
dormakaba Preparing for installation
ED 100, ED 250
Mounting instructions
WN 059799 45532 2019-07
