3 Product description

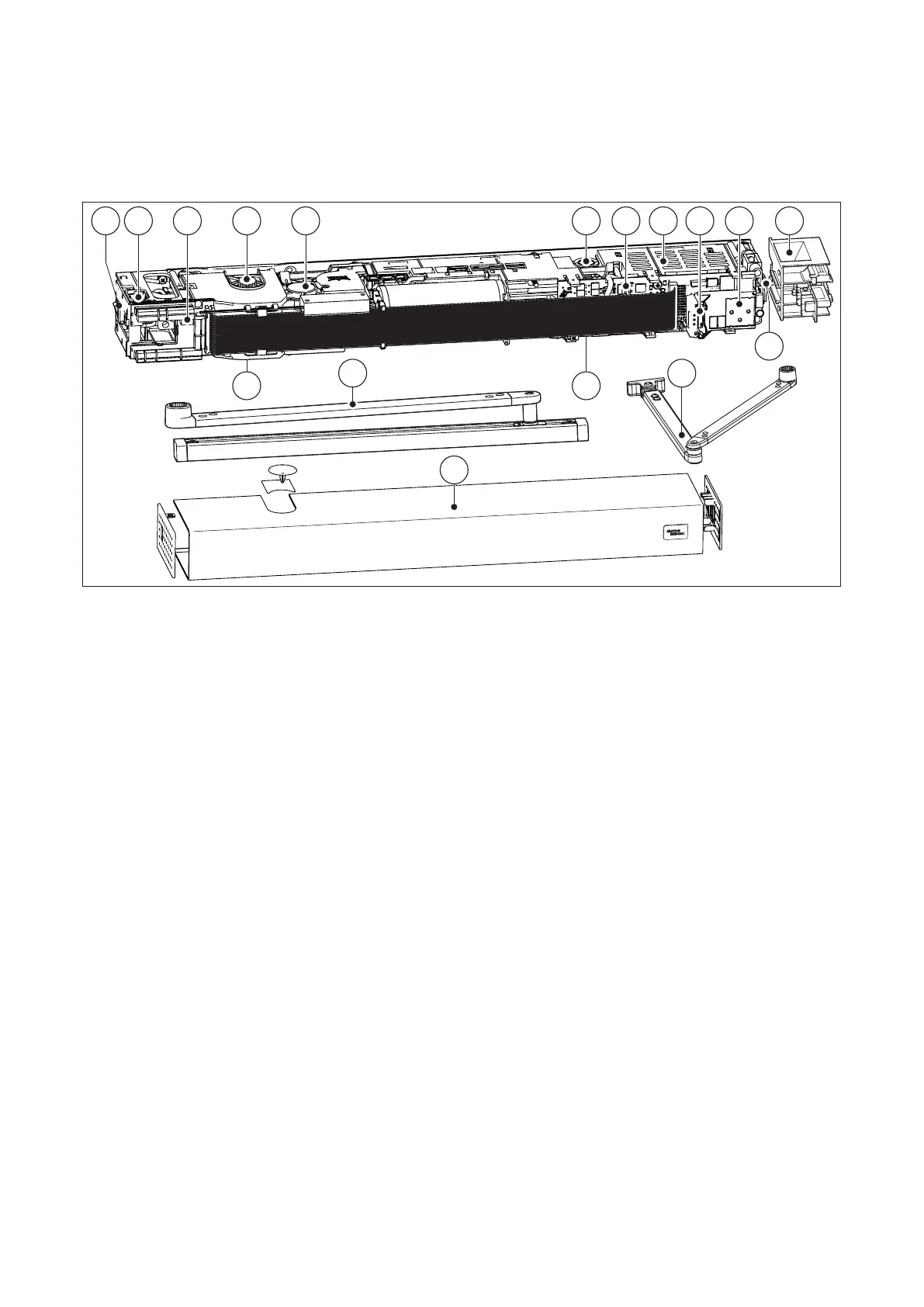

3.1 Drive unit
The drive unit comprises all the core components.
The drive unit is selected according to the door leaf
width and the door leaf weight.
1315
14
4 6
12
10 11987654321
(1) Mains switch
(2) Mains connection
(3) Connection unit
(4) Axle output on both sides
(5) Drive unit (motor/gear/closer spring)
(6) Closing force adjuster
(7) Control unit
(8) Switching power supply unit
(9) Slot for Upgrade Cards
(10) User interface with information display
(11) * ED Cover Basic RM, ED Cover Vario RM
(12) Internal program switch
(13) * Standard arm
(14) * Complete cover
(15) * Slide channel (set)
* Not included in the drive unit’s scope of delivery.
3.2 Functions
3.2.1 Operating modes
The ED 100, ED 250 can be operated in 2 modes: as
a door closer or an automatic swing door drive. In
the door closer mode (see chapter parameterization,
parameter hd = 1), the drive unit is optimized for
manual use. This operating mode is to be used with
the power-assist function optionally available in this
operating mode if the doors are operated mainly
manually and if a door closer-like behavior is desired.
The automatic mode (see chapter parameterization/
service, parameter hd = 0) is designed for the
automatic passage following a pulse generated by a
motion sensor or pushbutton.
3.2.2 Power-assist-function
In the door closer mode, the power-assist function
(see chapter parameterization/service, parameter
hd = 1) can be activated. Power assistance will then
be available during the manual opening. The power
assistance will be automatically adjusted to the set
door closer parameter. The power assistance can be
adjusted so that the requirements of the DIN 18040,
DIN Spec 1104, CEN/TR 15894, BS 8300/2100 and
document “M“ are met even up to EN 6.
The smallest adjustable opening force is
23N (5 lbf) unless the hold-open system has been
activated or the power failed. This power-assist
function allows you to comply with the requirements
of the EN 1154 and at the same time to allow for a
barrier-free access in normal mode.
A combination with the Push & Go function or the
wind load control is not possible as they counteract
the easy manual opening.
3.2.3 Push & Go
The Push & Go function (see chapter
parameterization/service, parameter PG = 1) can be
activated in both operating modes. The door will then
be automatically opened when the door is manually
moved from the “CLOSED“ position by an angle
of 4° into the “OPEN“ direction.
3.2.4 Wind load control
The drive units ED 100 and ED 250 are especially
suited for external doors that are exposed to
changing wind loads or internal doors separating
rooms in which pressure differences might occur. In
automatic mode, the wind load control monitors the
4
dormakaba Product description
ED 100, ED 250
Mounting instructions
WN 059799 45532
2019-07
