actual speed and will compensate for it if the speed
deviates from the set value. In combination with the
Upgrade Card Full Energy the drive unit can provide
up to 150 N at the main closing edge, which can then
be used to compensate for environmental influences.
The closing process during the last 5° can be
additionally supported by the electronic latching
speed. The door can be passed through manually. We
recommend using the Push & Go function.
3.3 Low energy product
The ED 100/250 can be adjusted so that the
requirements of a low energy application (low energy
drive unit) are in accordance with the EN 16005
or DIN 18650, ANSI 156.19 and BS 7036-4. During
the commissioning, the drive parameters must
be adjusted according to the specifications of the
respective standard.
The required safety of the system will be achieved
with the following characteristics:
• Reduced dynamic door panel forces/contact forc
• Low speed
• Reduced static door panel forces/contact forces
• Force limitation
Due to system tolerances, the actual forces on the
door panel have to be measured after the teach-in
run and adjusted, if necessary, in order to comply with
the local standards and regulations. Additional safety
sensors to safeguard the rotational movement are
not required but optional if this becomes necessary
due to a risk assessment to be carried out individually.
The safeguarding of the secondary closing edge must
be considered separately.
3.4 Control elements
The drive units ED 100 and ED 250 are
electromechanical drives. The interaction between
motor gear unit and control unit makes the automatic
opening and closing possible in the first place. The
control unit must know certain parameters of the
door in order to achieve the ideal behavior.

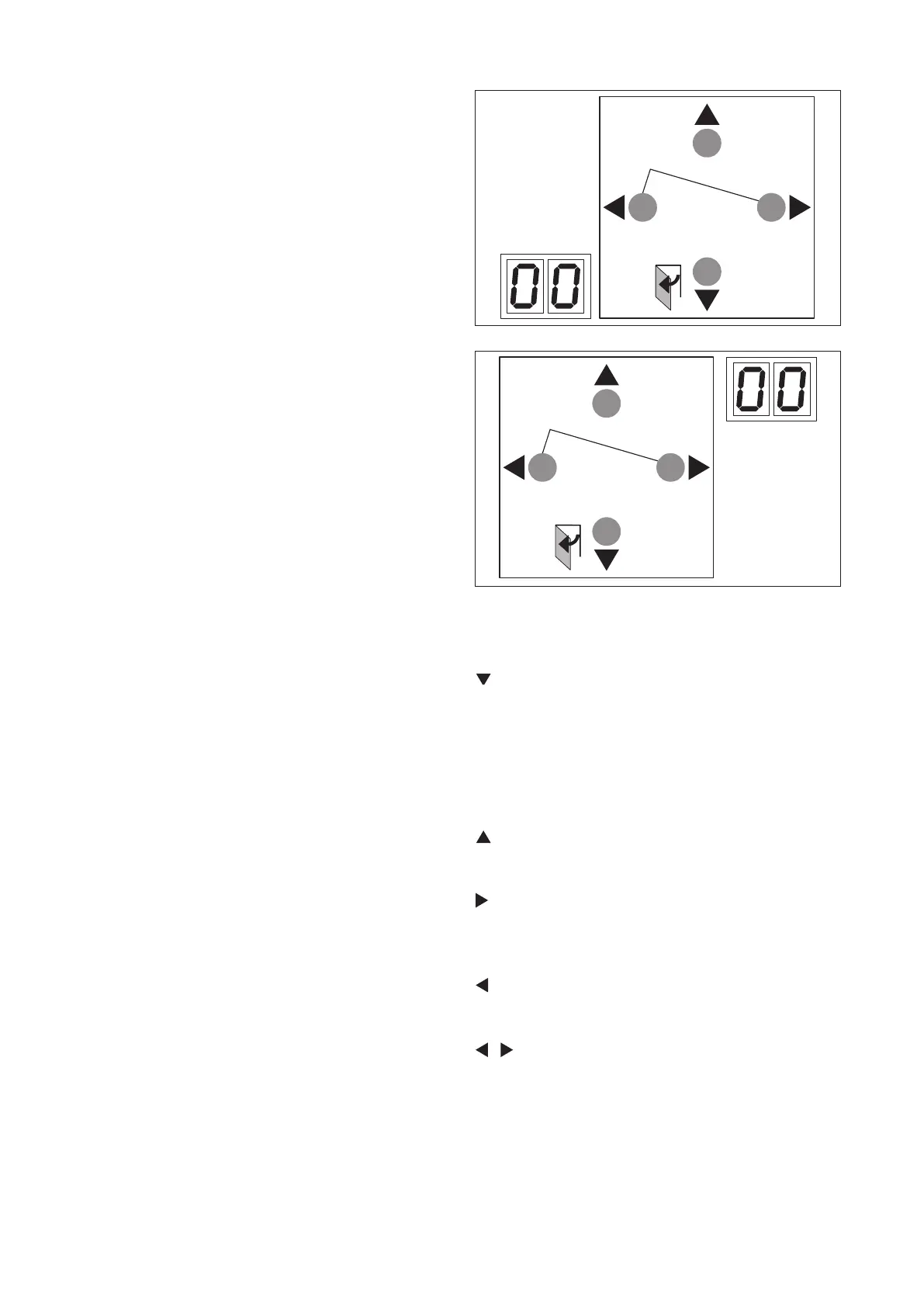

The control unit is equipped with a user interface
featuring 4 pushbuttons and a 2 digit display. This
allows you to make all settings specified in the
parameter list.
During the commissioning, the key functions and
the display are configured in such a way that -
independent of the installation direction of the
pushbuttons - always the same functions and the
numbers and digits are shown correctly. The legend of
the pushbuttons can be removed and turned.
< 3s Quit
> 3s Reset
< 3s
> 3s
LEARN
> 8s
Fact-Setup
> 3s
PRG
< 3s Quit
> 3s Reset
< 3s
> 3s
LEARN
> 8s
Fact-Setup
> 3s
PRG
By pressing the pushbuttons, you can execute the
following functions:
Lower pushbutton
• Setting of the installation direction following a
mains reset
• Browsing in parameters and error messages
• Reducing the parameter value
• Opening pulse
• Teach-in run
• Reset with factory setting (Fact-Setup)
Upper pushbutton
• Browsing in parameters and error messages
• Increasing the parameter value
Right pushbutton
• Open parameter menu
• Change selected parameter
• Save changed value
Left pushbutton
• Cancel parameter change
• Exit parameter menu
Left and right pushbutton simultanuously
• Error acknowledgement
• Reset
5
dormakaba Product description
ED 100, ED 250
Mounting instructions
WN 059799 45532 2019-07
