6
ED250 01-2018DL4614-090
dormakaba ED250 IG Owner's Manual Chapter 5
Minimum
activating
detection
zone
Guide rail
Guide rail
Safety
detection zone
Clear door
opening
43”
[1092 mm]
Daily safety check procedure
NOTICE
All figures and diagrams are for purposes of
illustration only and are from AAADM
automatic swinging door manual, reprinted
with permission.
.. Performing daily safety checks
Perform safety checks daily on your automatic swinging
door to insure your customer and employee safety.
The daily safety checks are listed in Chapter , Safety
Information labels.
TIPS AND RECOMMENDATIONS
Perform these checks while traffic is restricted
from all detection and sensing zones.
.. Sensor activation, presence detection safety
. Check activation sensor by walking toward door
opening at moderate speed, door should:
• Start opening when you are about four feet from
door.
• Open smoothly.
• Stop at fully open without impact.
. Move slowly through door opening (approximately six
inches/second) stop in door swing path, and pause
for ten seconds.
• Door should remain open.
. If two way traffic, repeat from other side of door.
. Step out of sensor zone activating area.
• After a brief delay (minimum . seconds) door
should close smoothly and without impact.
. For one way traffic, approach safety side of door and
have someone else approach activating side.
• Door equipped with overhead mounted presence
sensor (Fig ..), as long as you are in safety area of
door it should not open.
• Door equipped with door mounted presence sensors
(Fig ..), door may start to open but should
reverse, stop or slow down.
. Stand motionless in door for at least seconds.
• Door equipped with overhead mounted presence
sensor (Fig ..), door should not close.
• Door equipped with door mounted presence sensors
(Fig ..), door may start to close but should
reverse, stop or slow down.
Minimum
activating
detection
zone
Guide rail
Guide rail
Safety beam
Safety zone
Safety zone

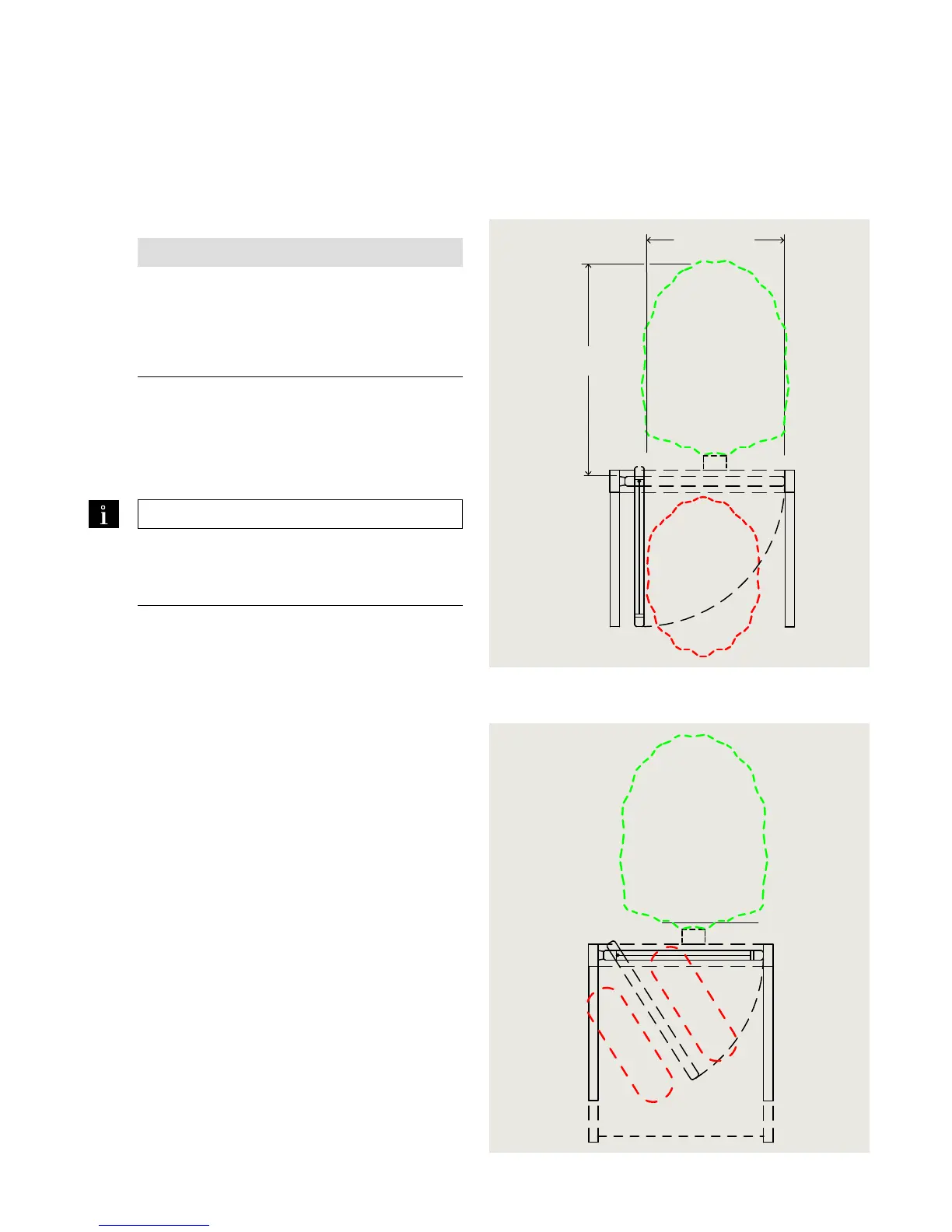

Fig. 5.1.1 One way traffic, overhead mounted presence
sensor
Fig. 5.1.2 One way traffic, door mounted presence
sensors
. Full energy power operated
swing doors
