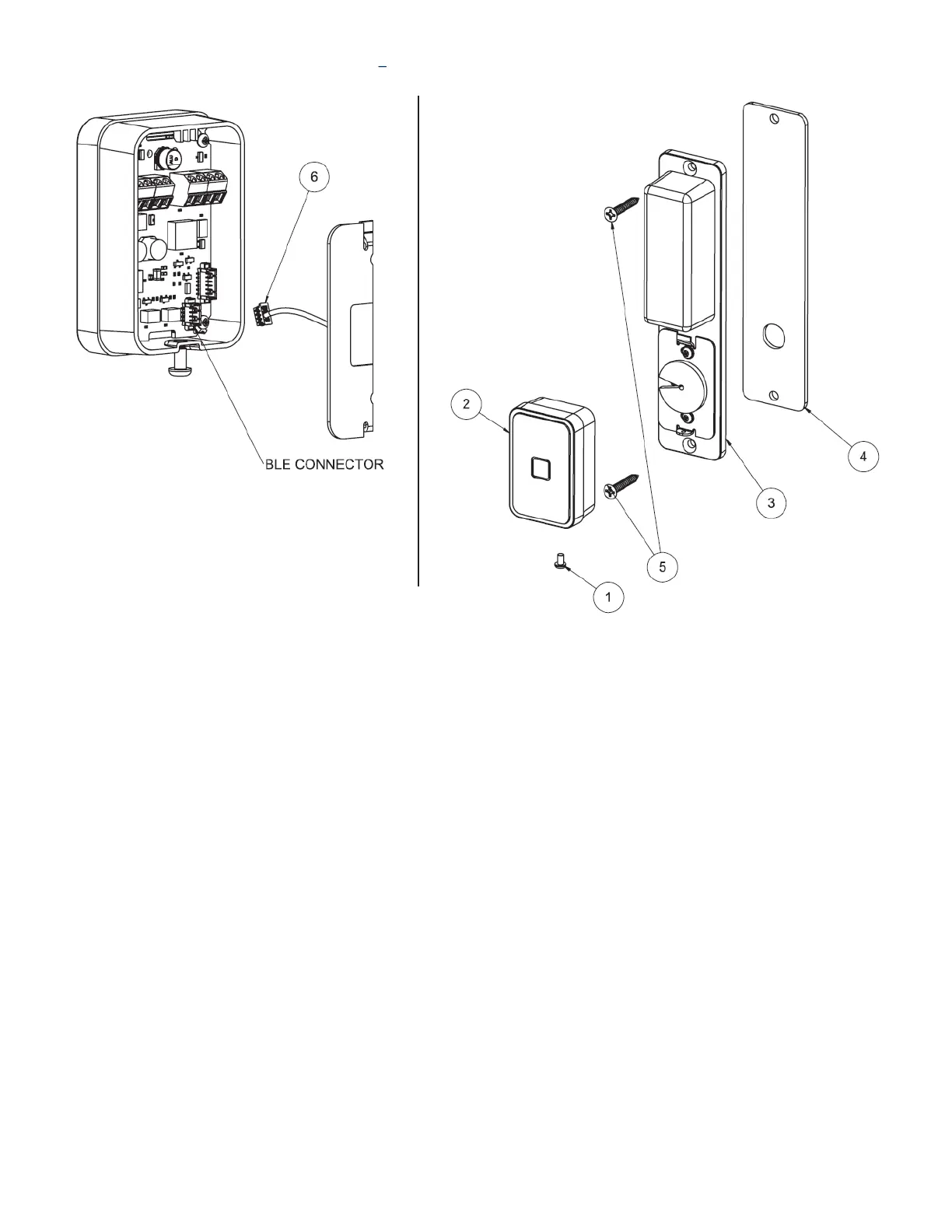

Figure 16 RFID Wall Reader BLE Narrow Stile
RFID Wall Reader BLE Narrow Stile Instructions
1. Remove screw (item #1) to gain access to reader assembly (item #2)
2. Disconnect BLE cable (item #6), if necessary
3. Remove protective film from reader face (item #2)
4. Pull cable(s) for RAC through hole in the back plate and, if applicable, through the gasket then attach
plate (item #3) to surface using gasket (item #4) and screws (item #5) that are included in the hardware
bag
5. Connect cables for RAC5 as per Annex E and F
6. Re-connect BLE cable (item #6)
7. Re-assemble reader (item #2) to assembly and secure with screw (item #1)
