06-2023 dormakaba Canada Inc. RAC5 MFC Installation Guide – PK3738 | 29

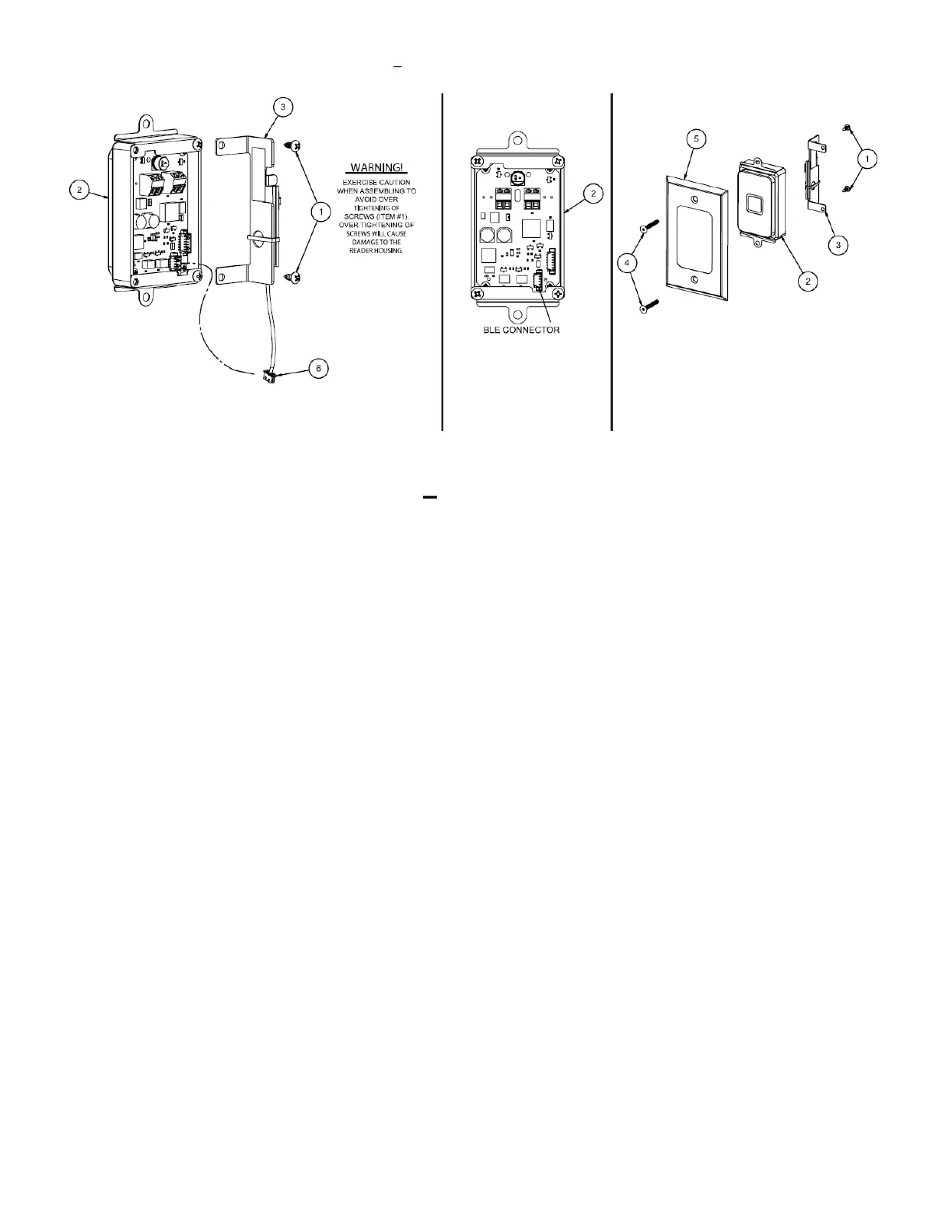

Figure 19 RFID Wall Reader Flush Mount

RFID Wall Reader Flush Mount Adding BLE Instructions

1. Remove screws (item #4) and faceplate (item #5) to gain access to reader (Figure 19 C)

2. Disconnect cables

3. Remove screws (item #1)

4. Install BLE assembly (item #3) using screws (item #1) oriented as shown with the cutout at the top and

cable facing downward. Refer to warning above

5. Connect cables for RAC5 as per Annex E and F

6. Connect BLE cable (item #6) to BLE connector (Figure 19 B)

7. Re-assemble reader (item #2) assuring that the BLE connector is at the bottom

Figure 19 (A)

Figure 19 (B)

Figure 19 (C)
