4.
4
Prepar
atory work
4.4.
1
Mill-cut and drill door
leaf for
tubular
fr
ame locks

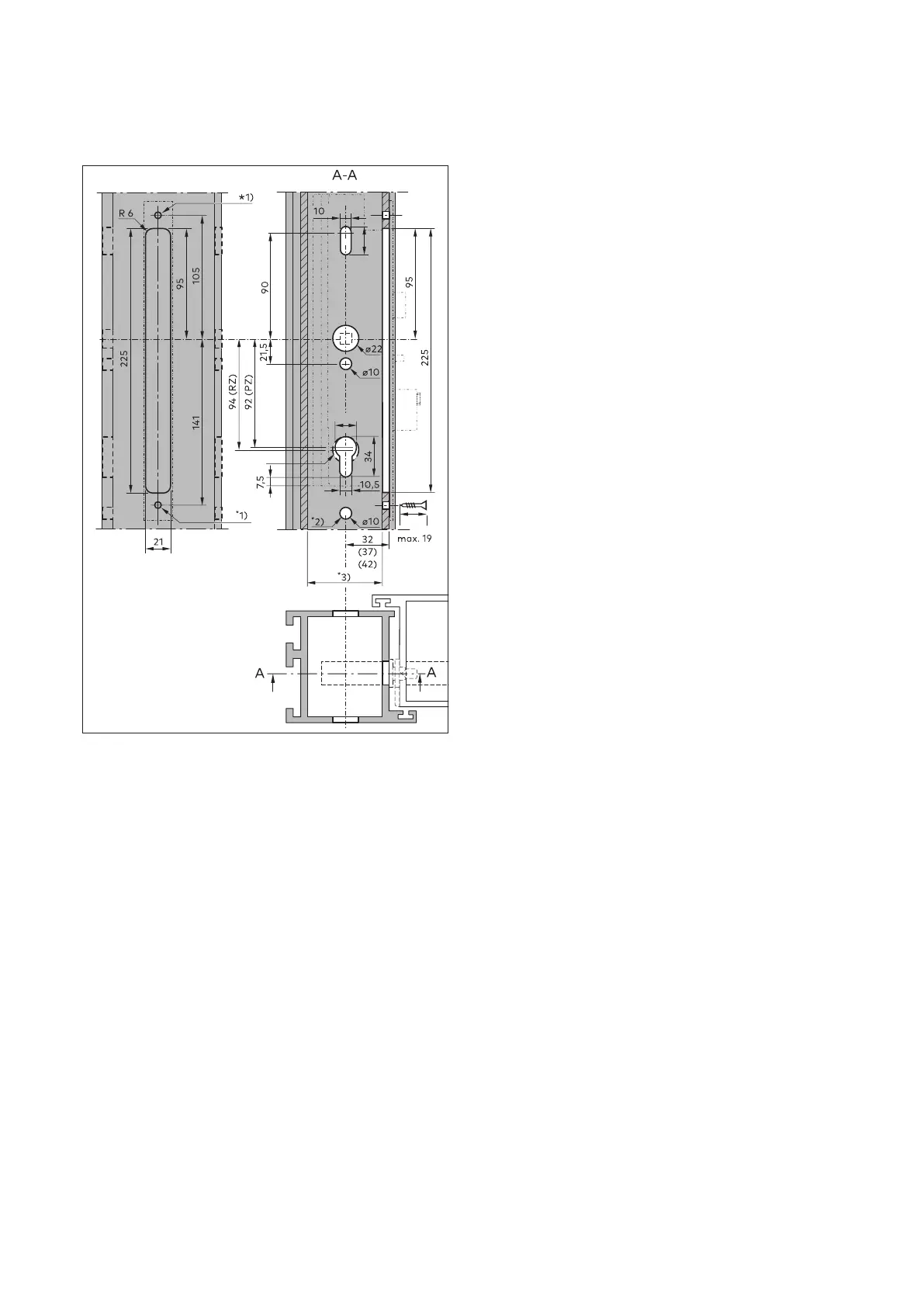

Fig. 13
RZ
PZ
16
*1)
ST 3.
9x19 A2-
70 (EN ISO 7050
)
*2)
depending on fitting
*3)
45 at backset 35
50 at backset 40
55 at backset 45
Recesses and pr
e-drilled holes in door leaf
11
SV
A door
locks
2019-07
WN 0597
43 45532
dormakaba
Mounting instructions
Mounting
10
12
