7.2 Smoke detector

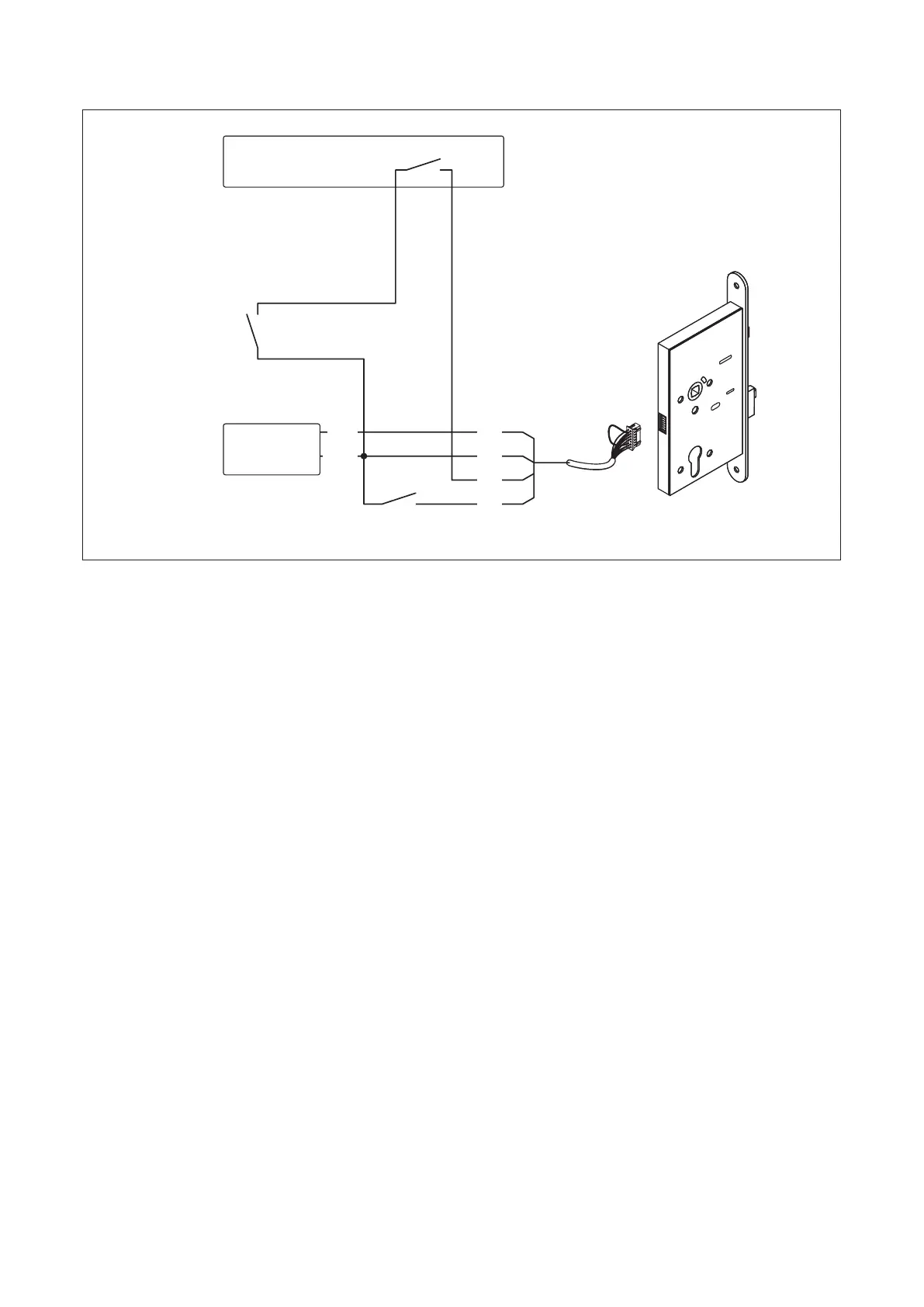

Fig. 28
SD
Control
Option: Door contact
24V power
supply unit
24V
GND
bu
rd
bk
wh
Wiring of smoke detectors with a SVP 2000/SVP
2000F
8 Complete mounting
1. Check all gaps. If necessary, adjust the leaves in
the door frame (Abb. 12).
2. Check that all the parts provided have been
mounted and that no subsequent modifications
have been made or additional locking devices
added.
3. Make sure that the locking points are not blocked.
4. Use a force gauge to measure and record the
actuating forces required to release the escape
door lock. The actuating forces may be max. 70 N
for escape doors according to EN 179 and max. 80
N for escape doors according to EN 1125.
5. This manual must be handed over to the facility
operator and regular maintenance and recording
duties must be observed (see chapter10).
19SVA door locks 2019-07WN 059743 45532
dormakaba Mounting instructions Complete mounting
