4.5 Mount locks
4.5.1 Mount tubular frame lock

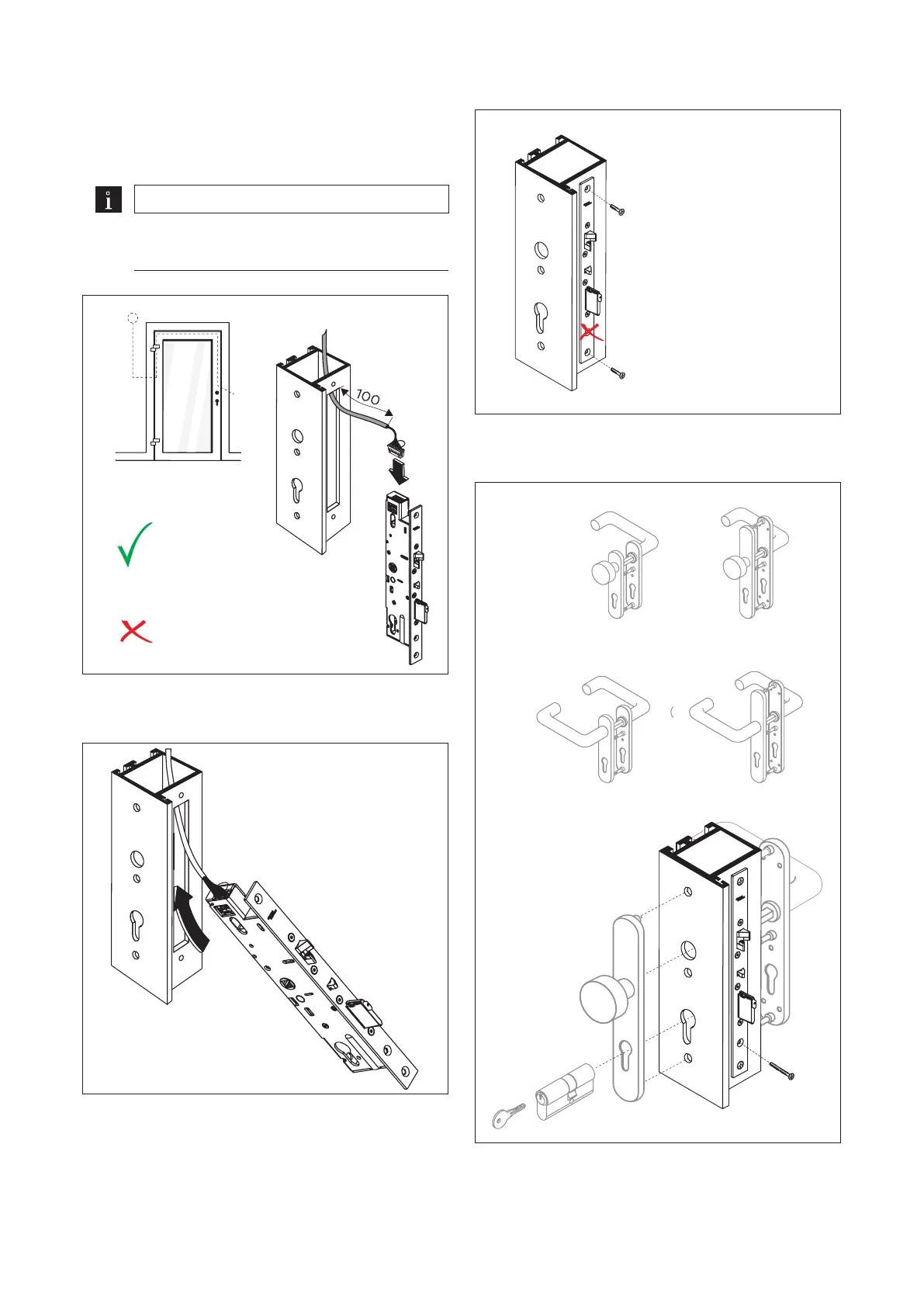

1. Connect the cable (Abb. 16).
TIPS AND RECOMMENDATIONS
In the case of earthed door frames, the
bridge on the plug must be disconnected.
Fig. 16
SVA 2000
SVA 2000F
SVA 4000
SVA 6000
SVA 5000
Connect cable
2. Insert the door lock into the door leaf recess (Abb.
17).
Fig. 17 Insert door lock
3. Screw the door lock tight (Abb. 18).
Fig. 18 Screw door lock tight
4. Mount the door handle and locking cylinder (Abb.
19).
Fig. 19
SVA 2000
SVA 2000F
SVA 4000
SVA 5000
SVA 6000
Mount door handle and locking cylinder
SVP-A 1100/2100
