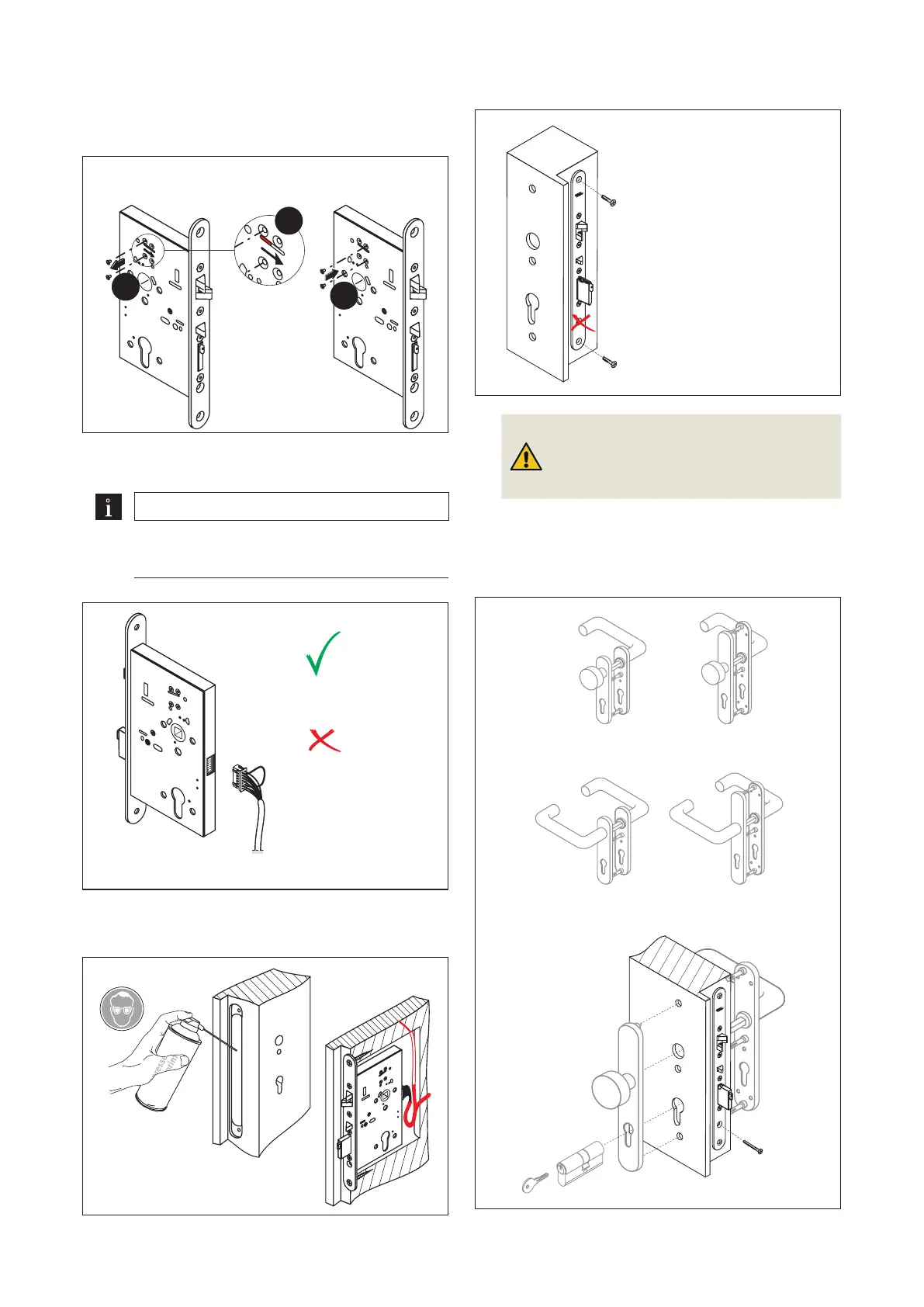

4.5.2 Mount solid door lock
1. If necessary, change operating current (OC) to
quiescent current (QC) (Abb. 20).
Fig. 20
OC
QC
1.
2.
3.
SVA 6000 only
Change operating current to quiescent current
2. Connect the cable (Abb. 21).
TIPS AND RECOMMENDATIONS
In the case of earthed door frames, the
bridge on the plug must be disconnected.
Fig. 21
SVA-A 1100/2100
SVA 2000
SVA 2000F
SVA 4000
SVA 6000
SVA 5000
Connect cable
3. Insert the door lock into the door leaf recess (Abb.
22).
Fig. 22
Compressed air
air comprimé
Druckluft
Insert door lock
4. Screw the door lock tight (Abb. 23).
Fig. 23 Screw door lock tight
5.
Attention!
Risk of property damage due to the use
of an incorrect cylinder screw with the
locks SVA 2000 and SVA 2000F.
Mount the door handle and locking cylinder (Abb.
24). For SVA 2000/2000F locks, use only the
cylinder screw supplied with the lock to secure the
cylinder (DIN EN ISO 7046-1, M5 x (backset + 5
mm)).
Fig. 24 Mount door handle and locking cylinder
14
SVA door locks
2019-07
WN 059743 45532
dormakaba Mounting instructions Mounting
