1.1 Surface Mounting Installation (Glass)

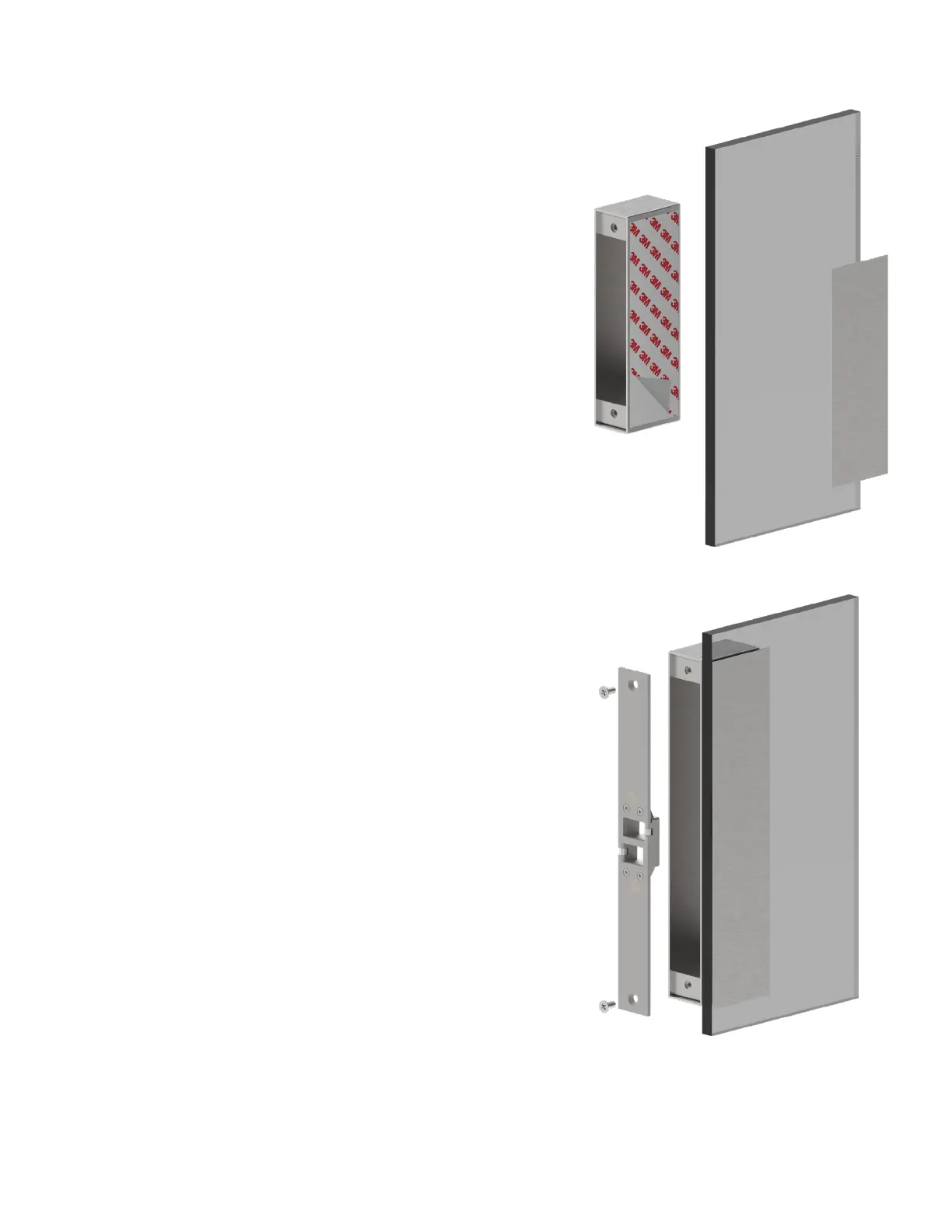

1. Fitting the housing
Clean the glass surface with isopropyl alcohol and peel the
protective layer from the double sided tape of the housing.
Position the housing flush with the edge of the glass, and press
down to adhere tape to surface.
2. Fitting the dress plate
Clean the glass surface with isopropyl alcohol and peel the
protective layer from the double sided tape of the dress plate.
Position the dress plate flush with the edge of the glass and
centered on the housing location, and press down to adhere
tape to surface.
3. Fitting the strike plate
The strike is then placed into the housing and then secured in
place with M5 machine screws (included with housing). Ensure
the strike is oriented so that the bolt hole aligns with the lock
bolt.
