Installation -10
Version 1.36
02/2004
7
REPLACE COFFEE PACK
REFILL WATERTANK
WARMING UP, PLEASE WAIT
stop
COFFEEHOT WATER
6543
1
2

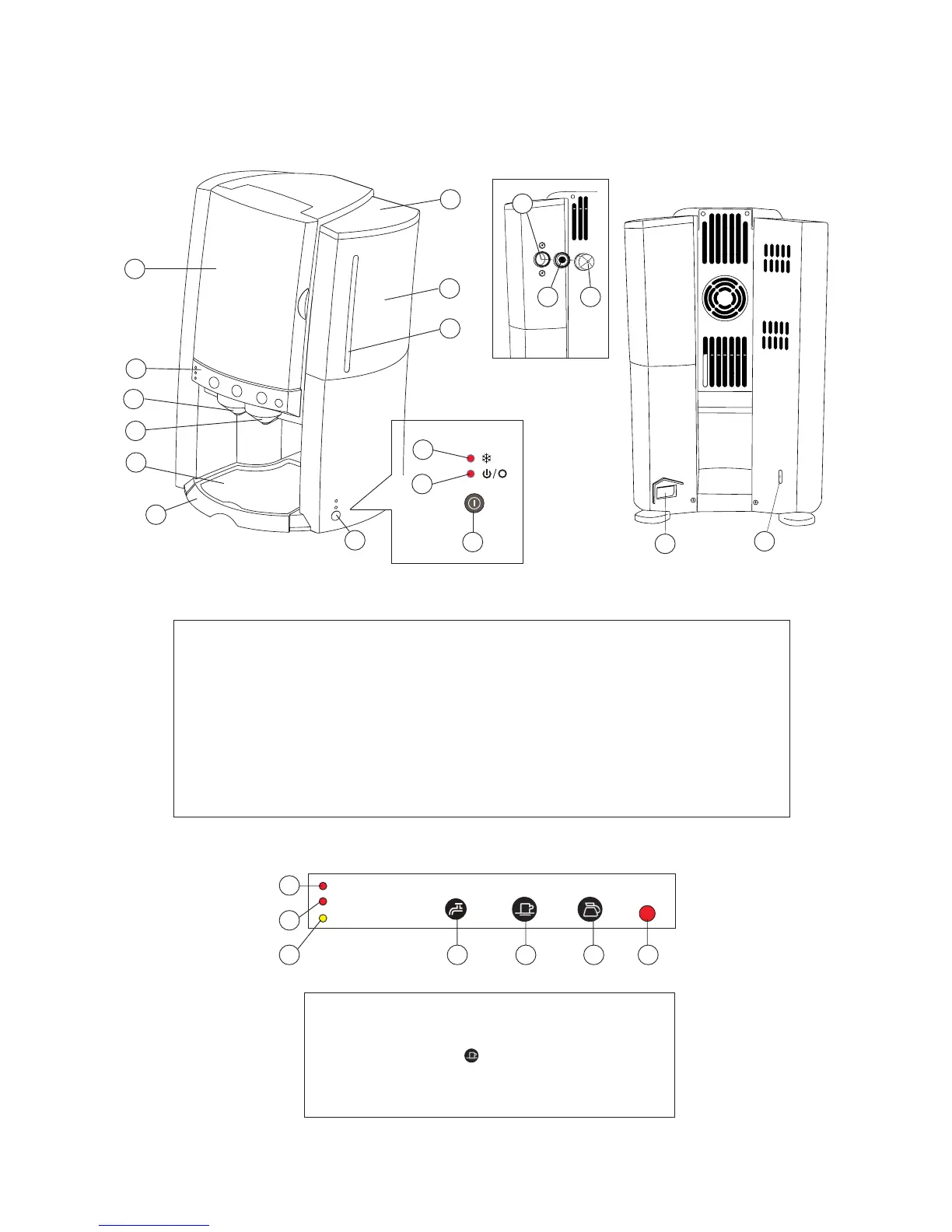

2.4 Dispenser description
3
4
6
9
7
10
12
4
2
8
11
13
14
9. Operation panel
10. Cooling compartment door
11. Cooling temperature high indication
12. Power on/stand-by indication
13. Power inlet
14. Opening for reset switch
Fixed water connection only
15. Water inlet valve
16. Flow restrictor
17. Sieve
1
5
15
16 17
1. Cold water tank lid
2. Cold water tank
3. Cold water level window
4. Main switch
5. Drip tray
6. Cup grille
7. Coffee outlet
8. Hot water outlet
1. Coffee pack empty indication
2. Cold water tank empty indication
3. Boiler temperature low indication
4. Hot water button ( in dispenser up to the 3 series)
5. Coffee (cup) button
6. Coffee (pot) button
7. Stop button
