Functions (water) - 2
Version 1.36
02/2004

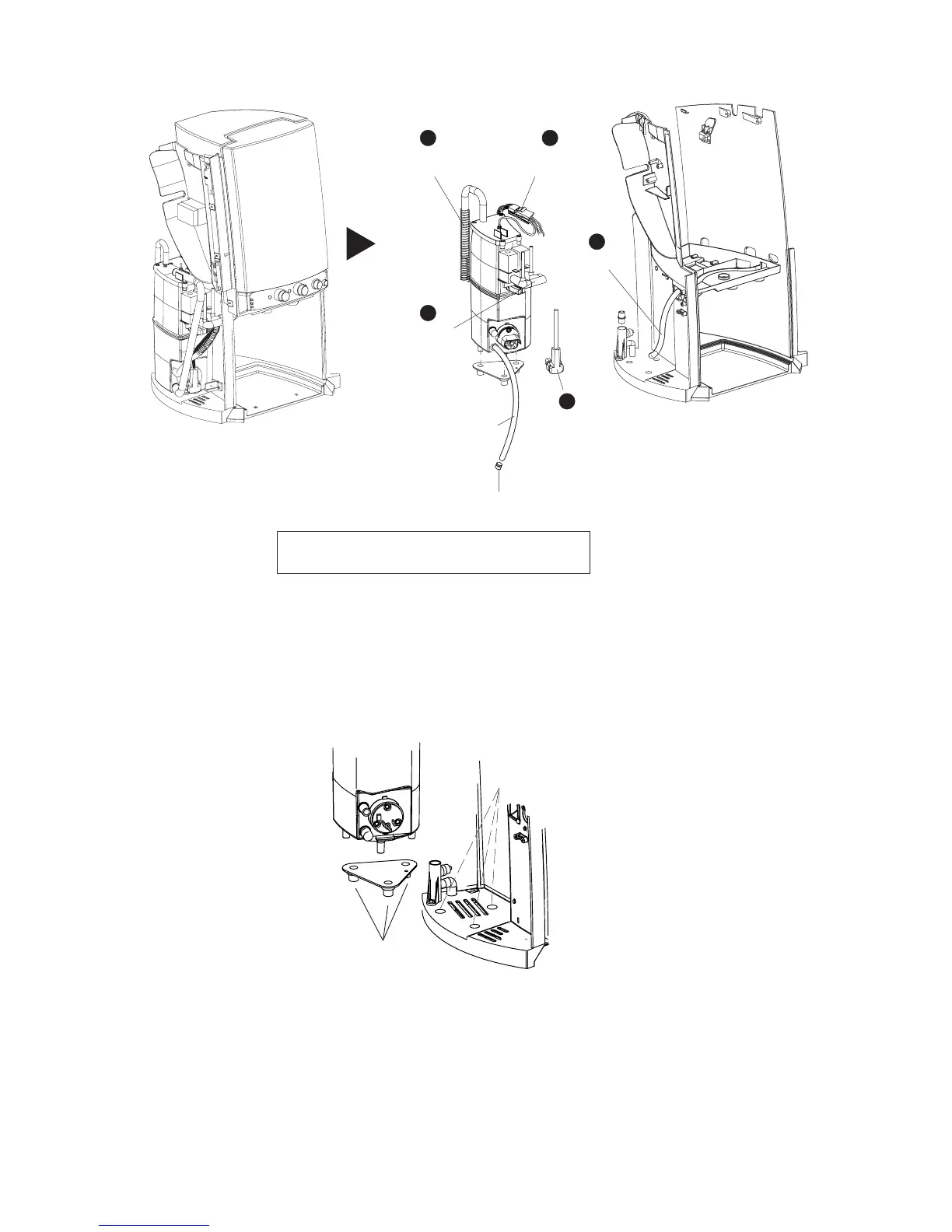

4. Lift the boiler out of the machine (tilt the boiler a little towards you and lift it out).
5. Take the replacement boiler and place the positioning pins under the boiler in the
corresponding holes in the machine frame.
Overflow
hose
Connector,
boiler wiring
Water inlet
hose
Drain hose
Heater
connector
Hose Plug
A
Outlet
tubes
CE
D
B
Boiler disassembly
(machine with fixed water connection)
Positioning pins
Positioning holes
6. Connect the water outlet tubes to outlet spout on the machine frame. Make sure that the
tubes are correctly installed.
