Functions (Cooling) - 4
Version 1.36
02/2004

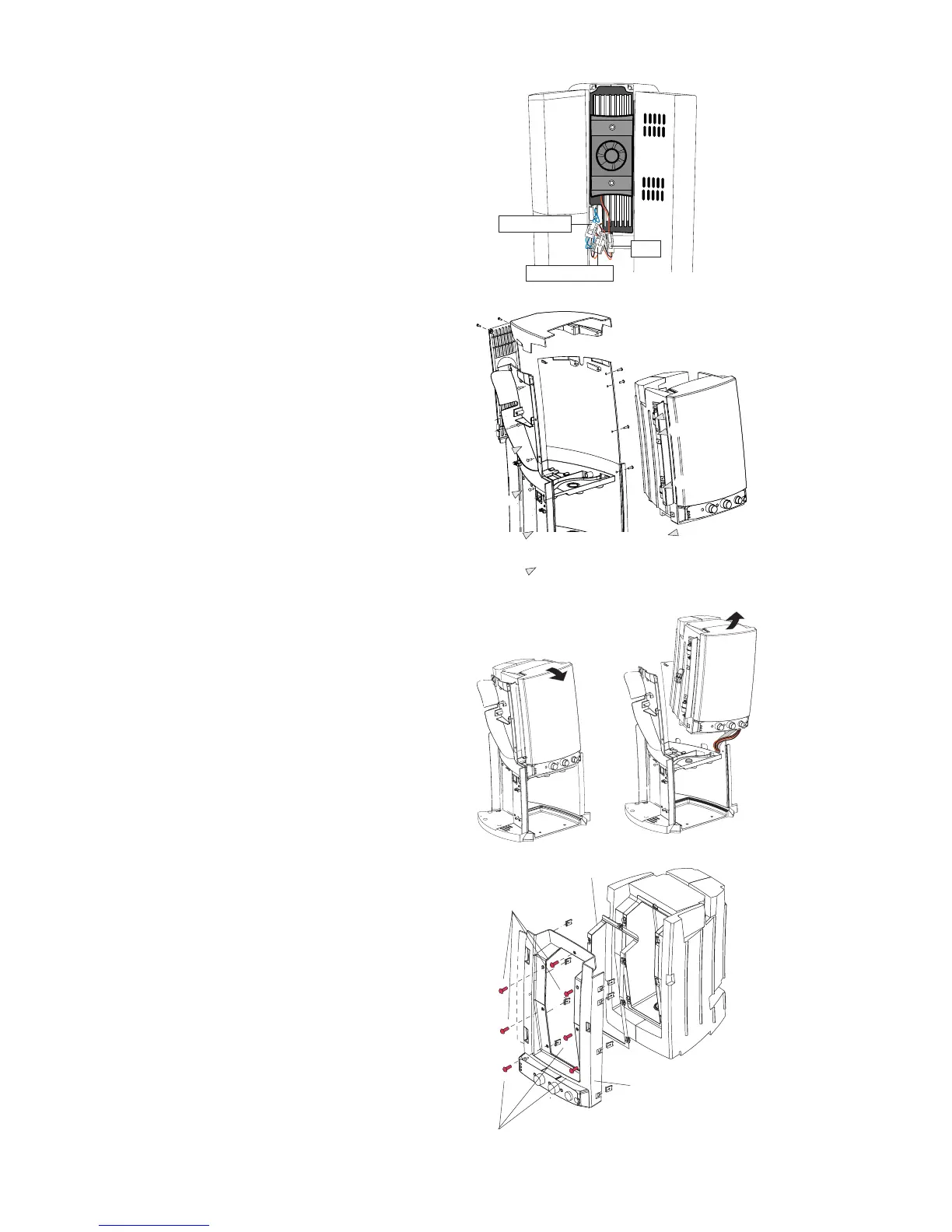

8. Disconnect the wiring of the fan, Peltier
element and the NTC sensor.
(machine rear side)
9. Remove the four retaining screws of the
complete cooling compartment on both sides
of the machine frame.
1
4
2
3
1
4
2
3
10. Tilt the complete cooling compartment a little
towards you.
11. Lift the complete cooling compartment
assembly (including the operation panel)
gentlyfrom the machine, guide the wiring
from the control PCB carefully through the
opening in the frame to prevent damage
to the wiring.
12. Open the door of the cooling compartment
and remove the retaining screws of the mount
of the door.
NTC Sensor
Peltier element
Fan
Door mount
Sealing
Retaining screws
Retaining screws
To Next Page
