DOYON SPIRAL MIXER AEF 035/050/080/100/120

4.1 – GENERAL CHARACTERISTICS

Electric commands come with two modes: manual and automatic mode

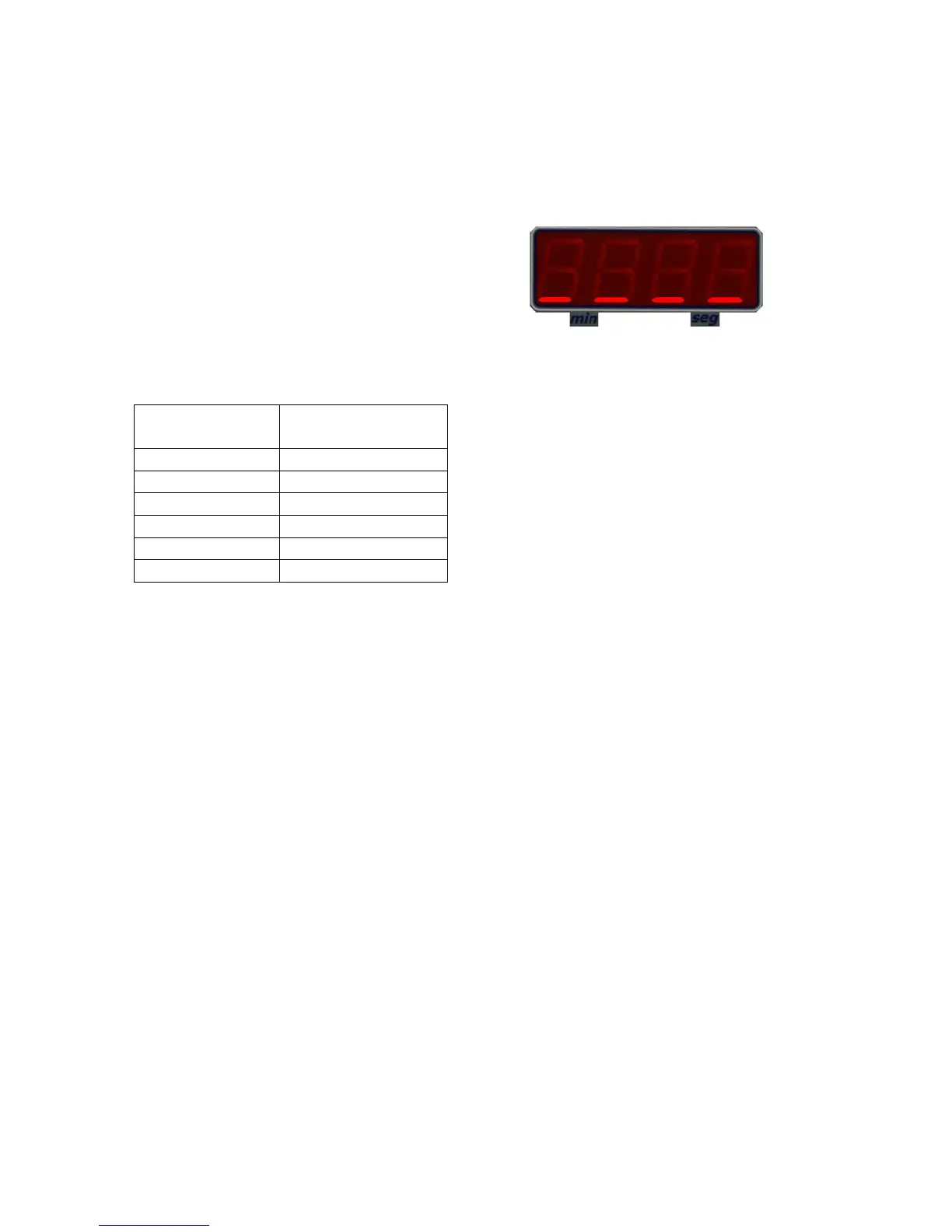

When in stand by, the displays shows four bars:

• 50 Different Programs capacity

• In each program you may adjust the time of work for the 1

and 2

speed

•

Initial program is P1

MODEL

number

NEMA

Plug configuration

AEF015 L15-20P

AEF035 L15-20P

AEF050 15-30P

AEF080 15-50P

AEF100 15-50P

AEF120 15-50P

4.2 – ELECTRIC INFORMATION

• Electrical supply installation must be in accordance with the electrical rating on the

nameplate.

• The plug must be as near as possible of the machine and easily accessible.

4.3 – START

1. Turn the general switch into position I, and verify if the Emergency Stop is unlocked and

the points 2 and 3 will display (4bars _ _ _ _).

2. If the red emergency STOP button is pressed, you must turn the button as shown by the

arrows.

3. Close the safety bars (point 3, fig.3).

4. Press “POWER” (point 1, fig.4), the time display (point 2 and 3, fig.4) will display

“0.00”.

5. The machine always starts in manual mode.

6. Press the green button I (point 15, fig.4).

7. Verify if the bowl and spiral rotations are the same as indicated by the arrow on the

spiral. If not, stop immediately the machine, unplug it, open the electric plug and reverse

one phase for another.

8. When the machine starts working, verify if the protection bars work correctly, when you

lift it, the machine must stop. If not, contact a technician.
