Doyon AEF015 - 3.6. Security System; 3.7. Control Panel; 3.8. Emergency Stop

AEF-A.DOC 02/2003
6
3.6 – SECURITY SYSTEM
The potentially most dangerous area on these machines is the one that surrounds the moving
spiral.
So, there is a safety guard that obstructs the entry in this area. This safety guard is designed
in a way to allow the user to watch the dough.
If you lift the safety guard, the machine will activate the micro switch and stop immediately.
To restart it, close the safety guard and press the green button “start”.
It is forbidden to remove, modify or damage the machine’s security bars.
3.7 – CONTROL PANEL

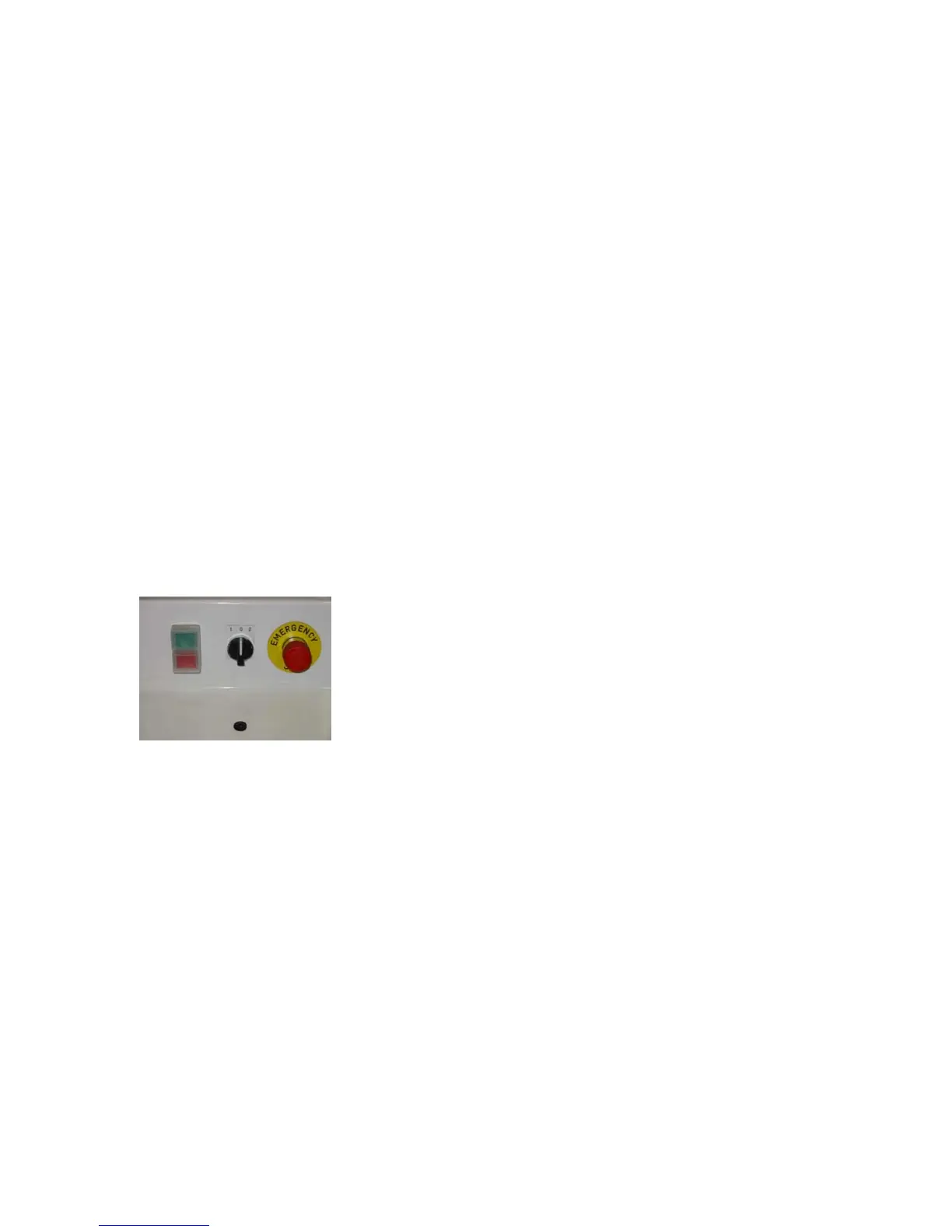

AEF 015 fig.2
Start button (GREEN): If you push it, the machine will start.
Stop button (RED): If you push it, the machine will stop.
Selector switch: For 1
st
and 2
nd
speed.
Emergency stop button: If you push it, the machine will stop immediately.
Fig. 2
3.8 – EMERGENCY STOP
The machine has a mechanism that allows the user to stop it when necessary, blocking the
electric power. To re-establish the normal work of the machine, after having pressed this
button, the user must turn it as shown by the arrows.
