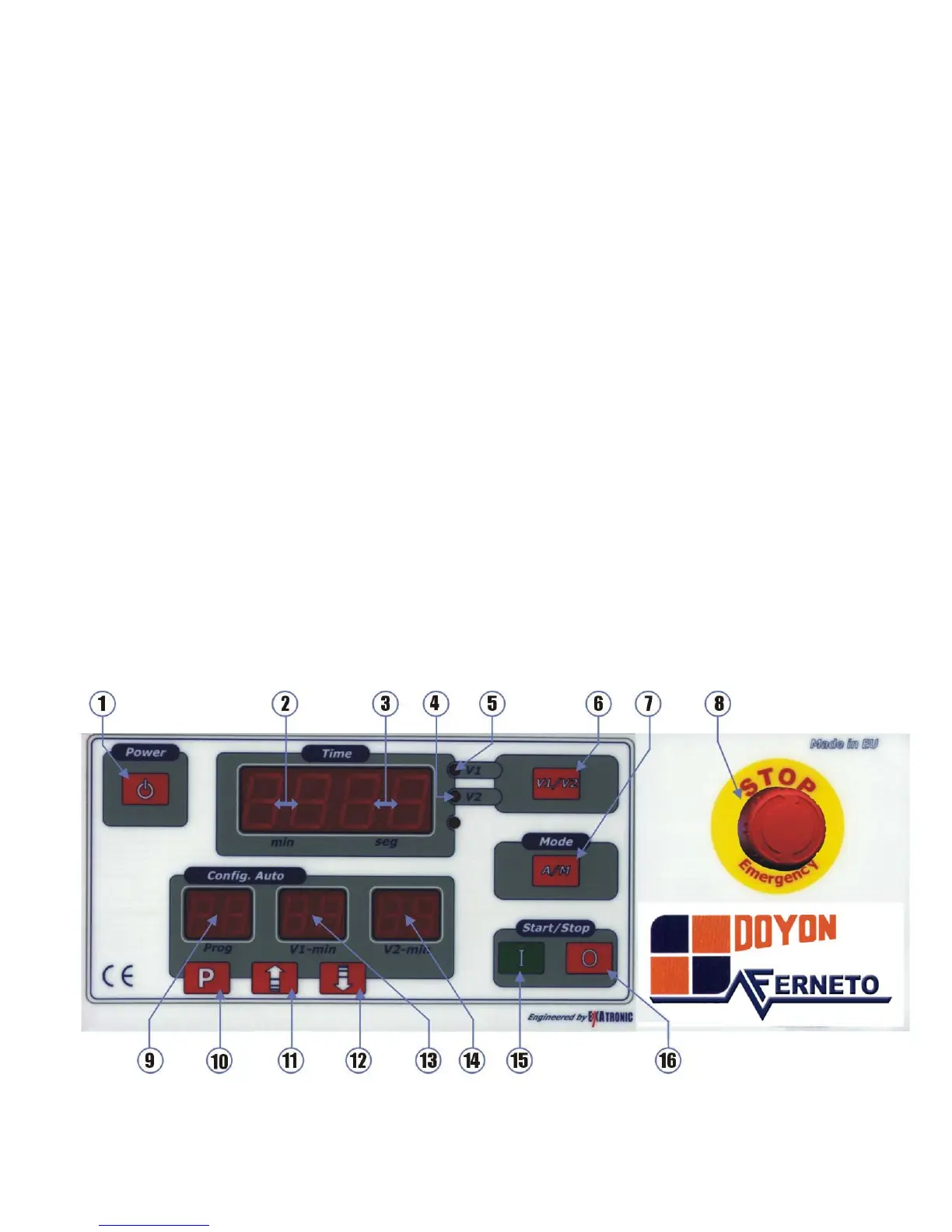

AEF 035/050/080/100/120 Fig.4
Figure # 4
1. Switch on and off button
2. Display to visualise the working minutes
3. Display to visualise the working seconds
4. Light of 2
nd
speed
5. Light of 1
st
speed
6. Speed selector button V1/V2
7. AUT/MANUAL mode selector button
8. Emergency stop
9. Display to visualise the programs
10. Programming button
11. Up button
12. Down button
13. Display to visualise the time of 1st speed
14. Display to visualise the time of 2nd speed
15. Start
16. Stop
• The machine also has a general switch (yellow and red). Position 0 (switch off), the
machine has no electric power.
Position I (switch on), the machine has electric power and the panel lights (point 6, fig.4),
and also will emit a sound signal.
