Grease Fittings
1. There is one grease fitting
below the black belt guard that
needs maintenance (Figure 10):
■ The belt idler arm should
have 1-2 pumps of grease
every 25 operating hours.
Note: Over greasing will cause
grease to leak out of the
seals onto the mower drive
belt. Unless instructed
otherwise, pump only until
you feel slight resistance
(1-2 pumps).
2. The drive chain should be
lubricated with FLUID
FILM
®
lubricant or SAE 30
oil every 25 operating hours—
more often if the machine is
operated in extremely dusty or
wet conditions. Remove the
chain cover, lubricate the
chain and replace the cover
(Figures 11 and 12).

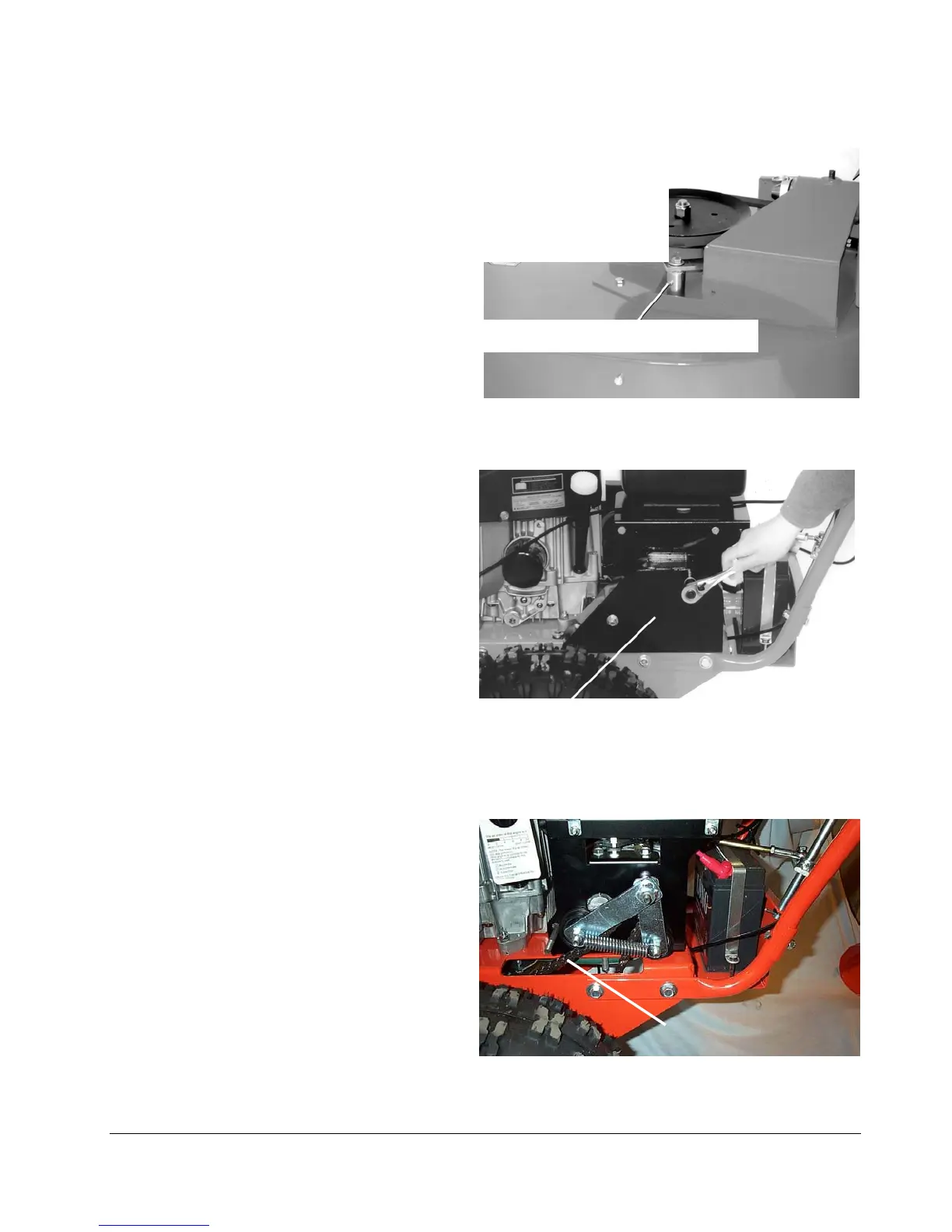

Figure 11
Figure 10
Figure 12
Belt Idler Arm Grease Fittin
g
Remove Chain Cover
Lubricate Chain

DR ALL-TERRAIN Specifications

General

Engine Type	4-Cycle OHV
Side Discharge	Yes
Type	Self-Propelled
Engine	Briggs & Stratton
Starting System	Recoil Start
Mulching Capability	Yes
