To Replace the Drive Belt
Tools Needed:
■ 7/16" socket
■ 1/2" wrench
■ 9/16" wrench
■ Gloves
1. Drain the gas and oil.
2. Remove the blade belt following the instructions as outlined in the previous page.
3. Remove the pin and collar (Figure 15), and then pull the power unit away from the
deck.
4. Tilt the power unit forward onto the attachment pin.

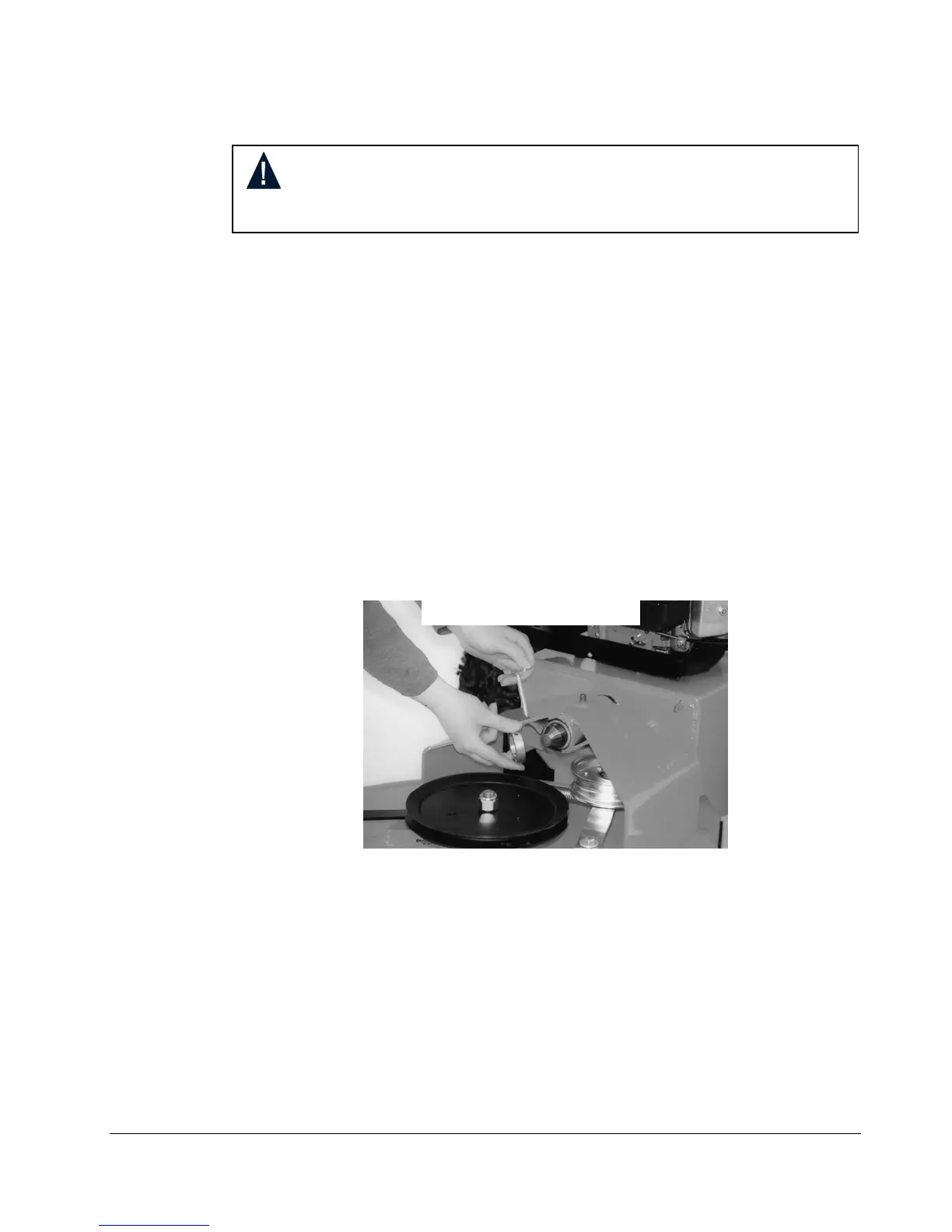

Figure 15
WARNING! Before performing any maintenance procedure, stop the
engine and disconnect the spark plug wire(s).
Remove Pin & Collar
To Next Page
