Removing and Replacing the Belts
To Replace the Blade Belt
1. Remove the black belt guard by
unscrewing the black knob,
lifting the cover, and pulling up
and back to remove it.
2. Release the belt tension lever
(Figure 13).
3. Remove the belt from the
pulley (Figure 14), and then drop
it from the engine pulley below
the machine.
4. To mount the belt, follow the
above procedure in reverse.

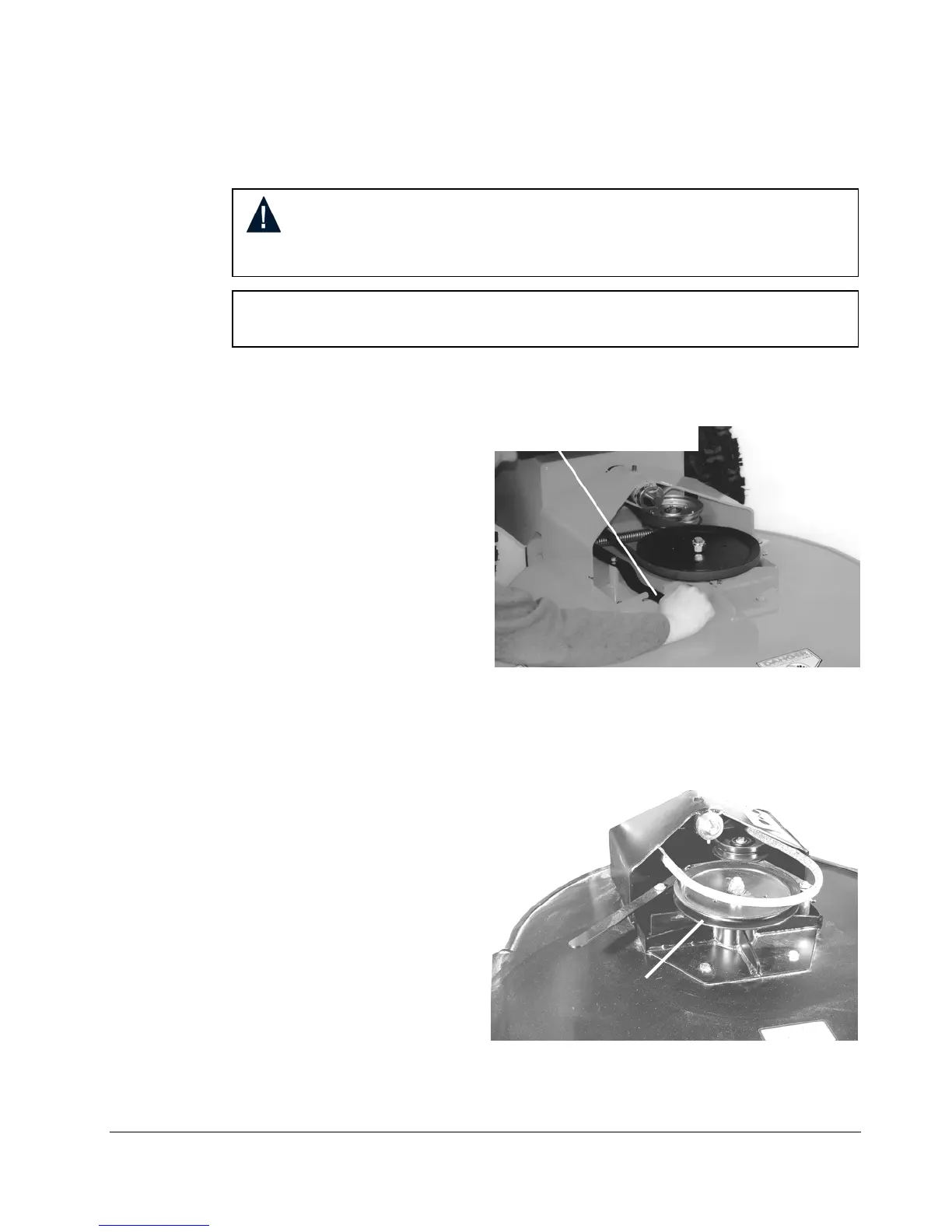

Figure 13
WARNING! Before performing any maintenance procedure, stop the
engine and disconnect the spark plug wire(s).
Important! Use only DR

belts on your machine. They have been
thorou
g
hl
y
tested and
p
roven for man
y
hours of use.
Belt Tension Lever
Belt Removed
Figure 14

DR ALL-TERRAIN Specifications

General

Engine Type	4-Cycle OHV
Side Discharge	Yes
Type	Self-Propelled
Engine	Briggs & Stratton
Starting System	Recoil Start
Mulching Capability	Yes
