DR ALL-TERRAIN User Manual

32 DR

ALL-TERRAIN

FIELD and BRUSH MOWER Safety & Operating Instructions

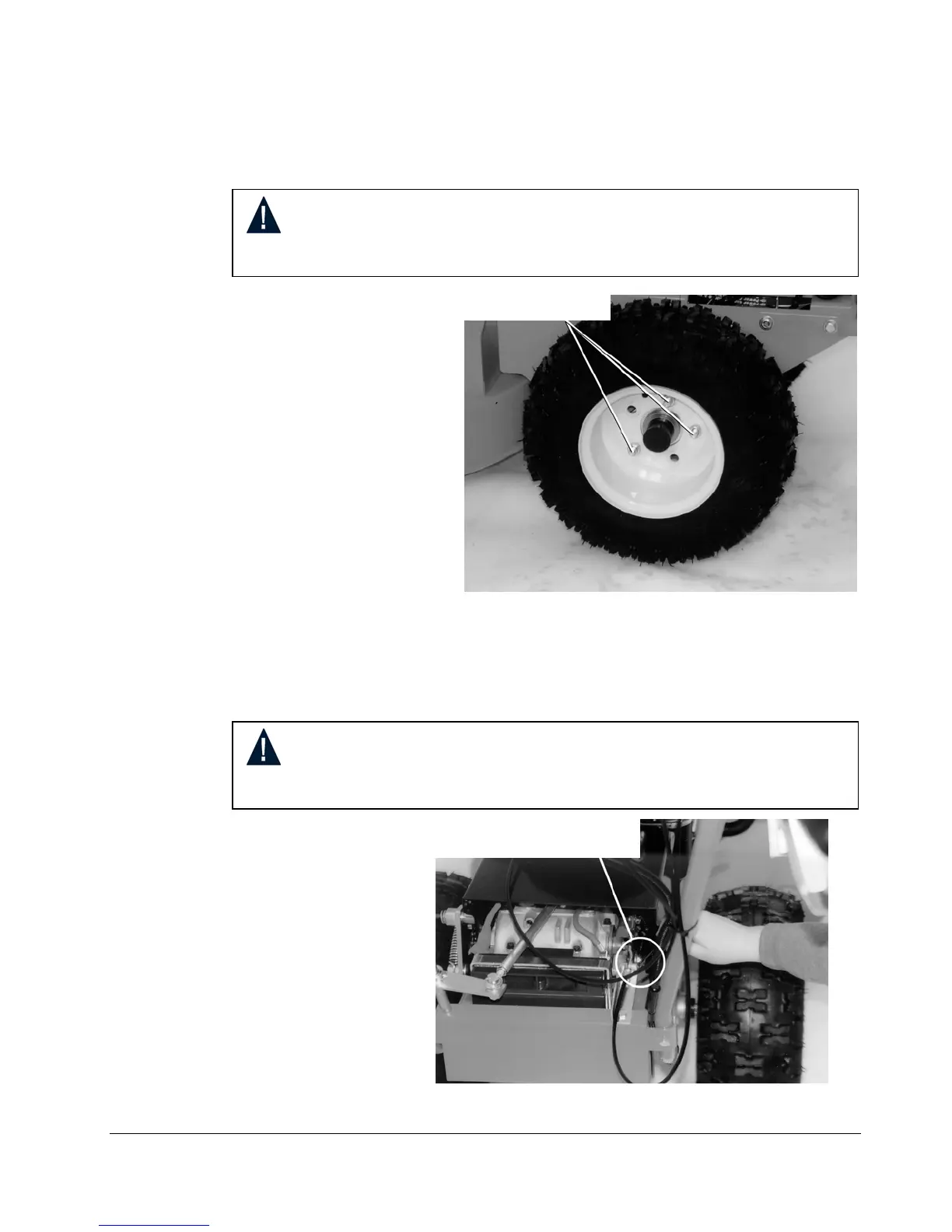

Removing the Wheels
Tool Needed:
■ 3/4" socket with extension
1. Block the machine so the
wheel to be removed is off
the ground.
2. Remove the three nuts and
slide the wheel off. (Figure
25)
Adjusting the Parking Brake
Tool Needed:
■ 1/2" open-end wrench
To adjust the parking
brake, tighten or loosen
the nut shown in Figure 26.
Tightening the nut will
increase pressure and
loosening the nut will
decrease the pressure on
the brake pad.
Figure 25
Figure 26
WARNING! Before performing any maintenance procedure, stop the
engine and disconnect the spark plug wire(s).
WARNING! Before performing any maintenance procedure, stop the
engine and disconnect the spark plug wire(s).
Remove Nuts
Adjust Parking Brake

DR ALL-TERRAIN Specifications

General

Engine Type	4-Cycle OHV
Side Discharge	Yes
Type	Self-Propelled
Engine	Briggs & Stratton
Starting System	Recoil Start
Mulching Capability	Yes
