26 DR

SCOUT

™

FIELD and BRUSH MOWER

Removing and Replacing the Blade

BEFORE PERFORMING ANY MAINTENANCE PROCEDURE, STOP THE ENGINE AND DISCONNECT THE

SPARK PLUG WIRE.

Tools and Supplies Needed:

• 15/16" Wrench or Socket

• Gloves

• Block of wood to brace the blade

1. Brace the Blade with a block of wood between the Blade and the mower frame

(Figure 17).

2. Remove the Blade Bolt (right-hand, regular thread) and washer.

USE CAUTION WHEN PUSHING OR PULLING THE WRENCH NEXT TO THE BLADE. WEAR GLOVES; IF THE

WRENCH SLIPS OFF THE BOLT, YOU MAY BE SERIOUSLY INJURED.

3. Remove the blade.

4. Mount the new Blade, washer, and Bolt.

NOTE: Be sure to seat the Blade completely over the small ridge in the Spindle Hub before tightening the Bolt.

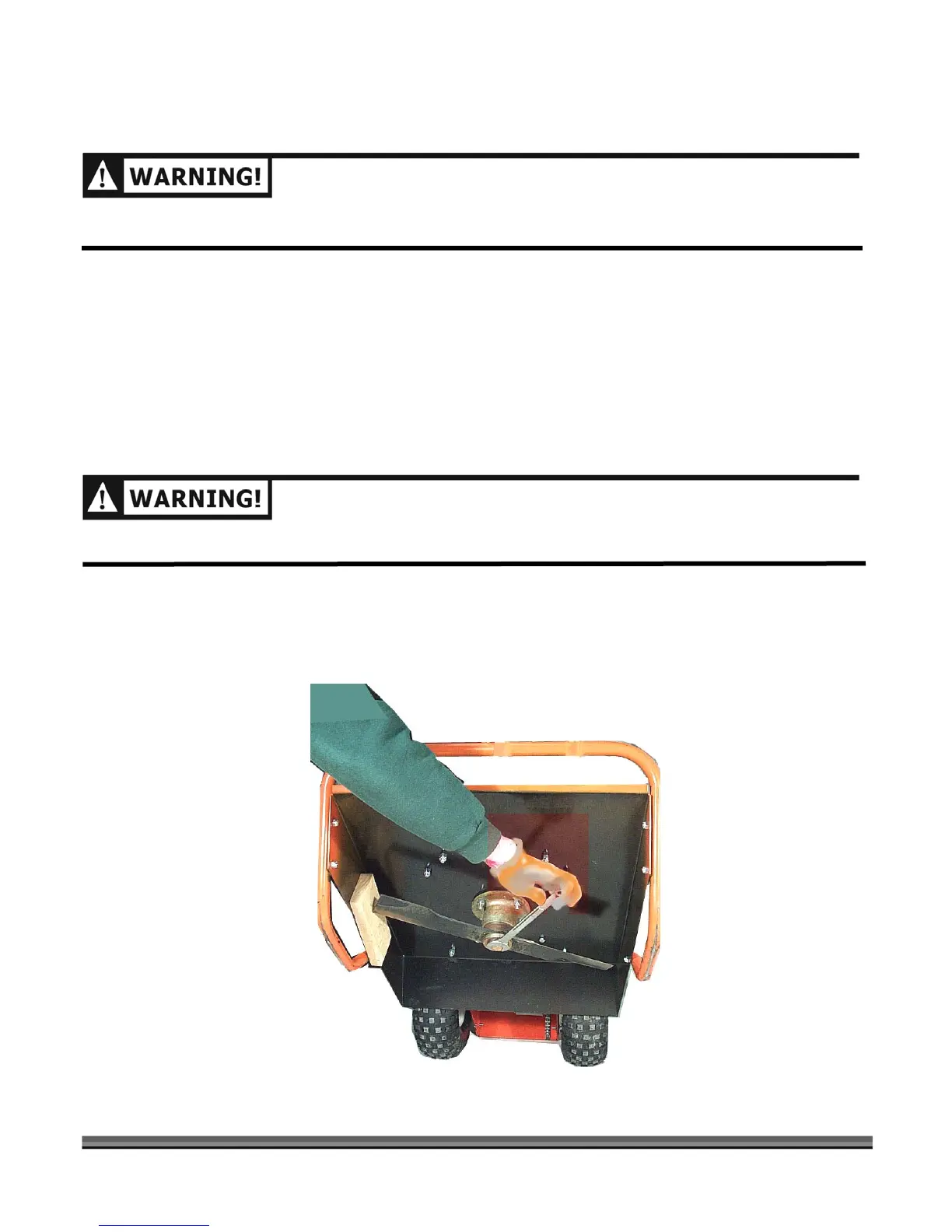

Figure 17

DR SCOUT FIELD and BRUSH MOWER User Manual
