DR SCOUT FIELD and BRUSH MOWER User Manual

34 DR
®
SCOUT
™
FIELD and BRUSH MOWER
Removing the Wheels
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE, STOP THE ENGINE AND DISCONNECT THE
SPARK PLUG WIRE.
Tool Needed:
• (2) 7/16" Wrench or Socket
1. Block the machine so the Wheel you are removing is off the ground.
2. While holding the Shear Bolt Head (Figure 32) with one Wrench, remove the Shear Bolt Nut with
the other Wrench.
3. Remove the Shear Bolt and slide the Wheel off the axle (Figure 32).
4. Replace the Wheel in the reverse order as above.
NOTE: Do not over tighten the Shear Bolt Nut when reinstalling the Wheel.

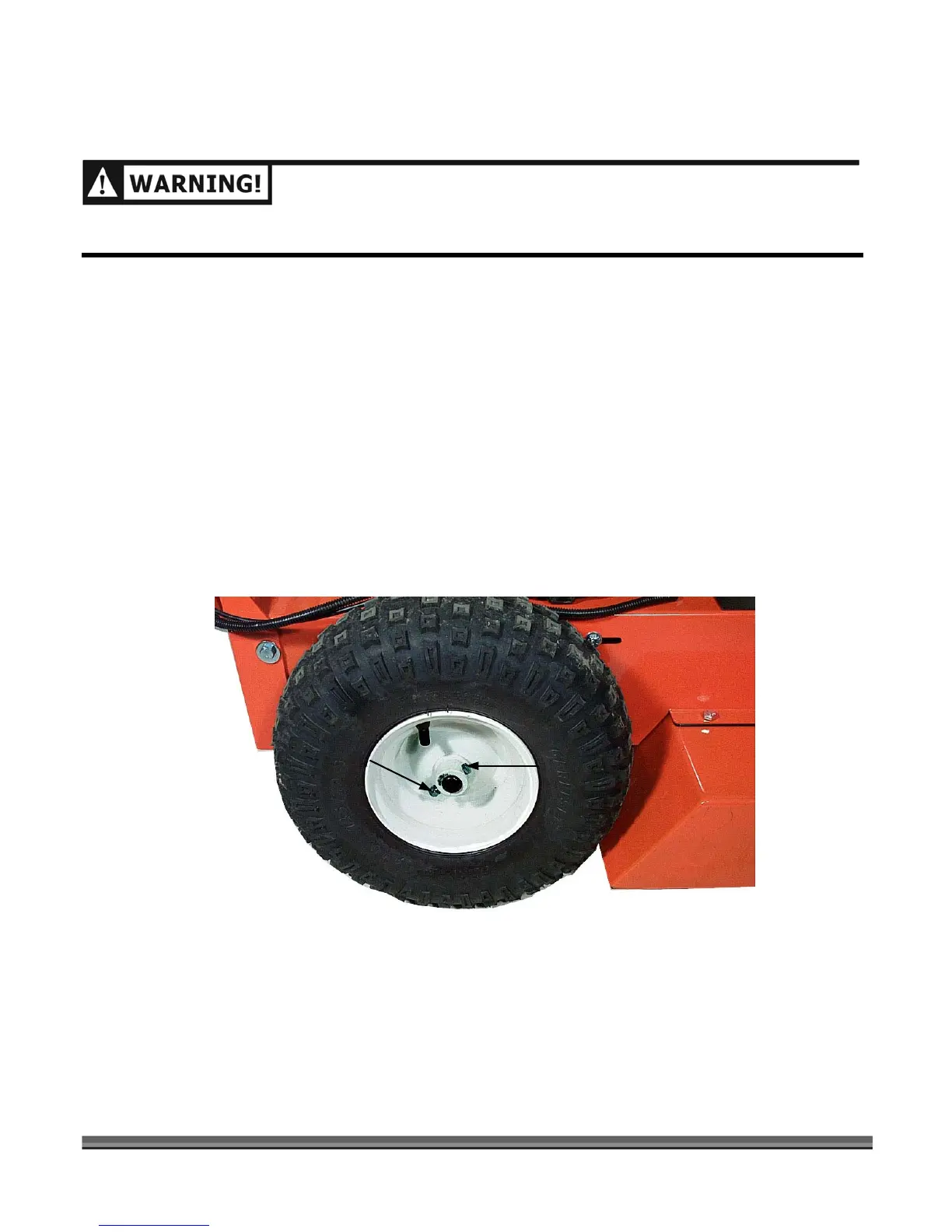

Figure 32
Shear Bolt
Shear Bolt Nut
