What's What

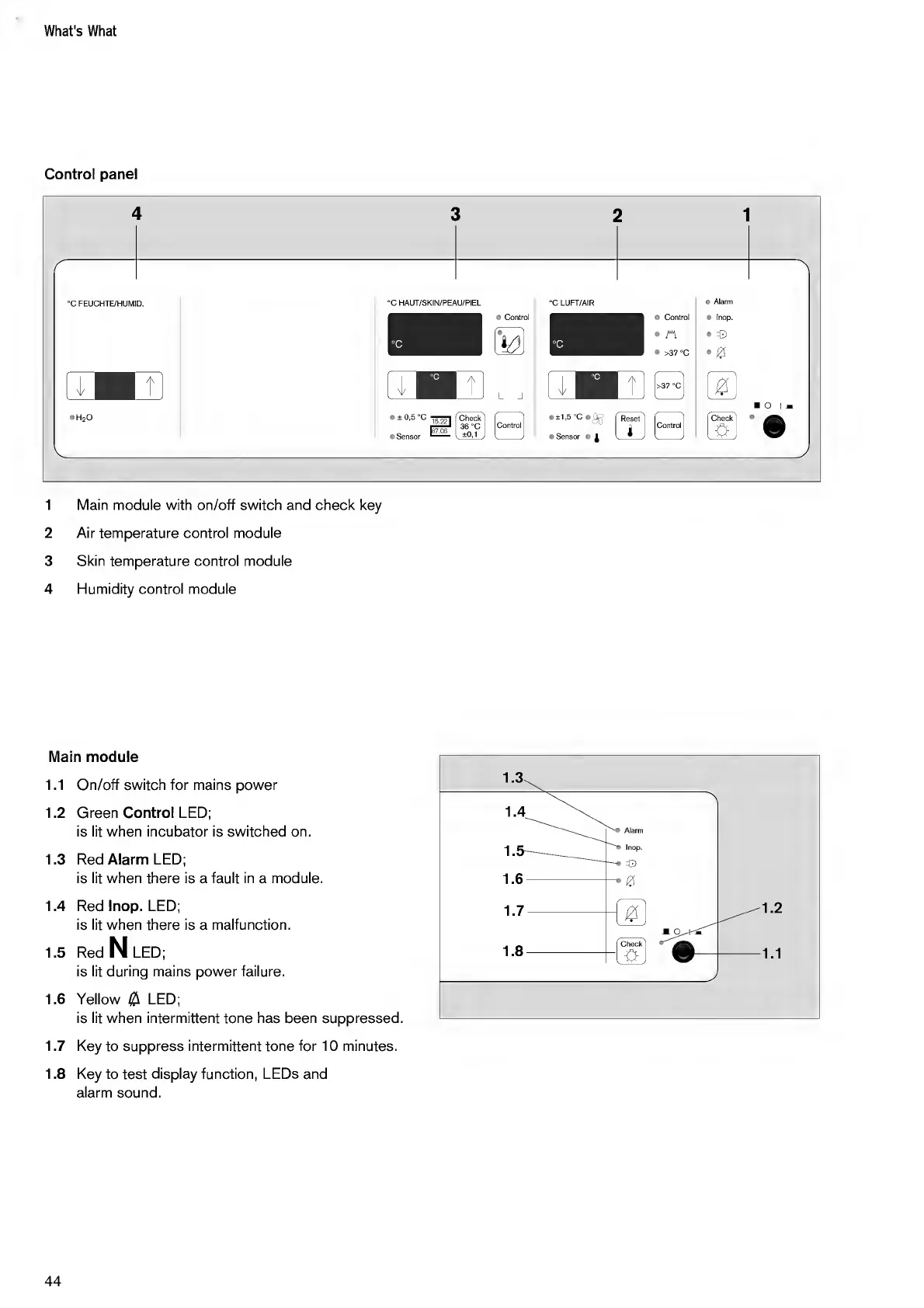

Control panel
1 Main module with on/off switch and check key
2 Air temperature control module
3 Skin temperature control module
4 Humidity control module
Main module
1.1 On/off switch for mains power
1.2 Green Control LED;
is lit when incubator is switched on.
1.3 Red Alarm LED;
is lit when there is a fault in a module.
1.4 Red Inop. LED;
is lit when there is a malfunction.
1.5 Red N LED;
is lit during mains power failure.
1.6 Yellow LED;
is lit when intermittent tone has been suppressed.
1.7 Key to suppress intermittent tone for 10 minutes.
1.8 Key to test display function, LEDs and
alarm sound.
