What's What

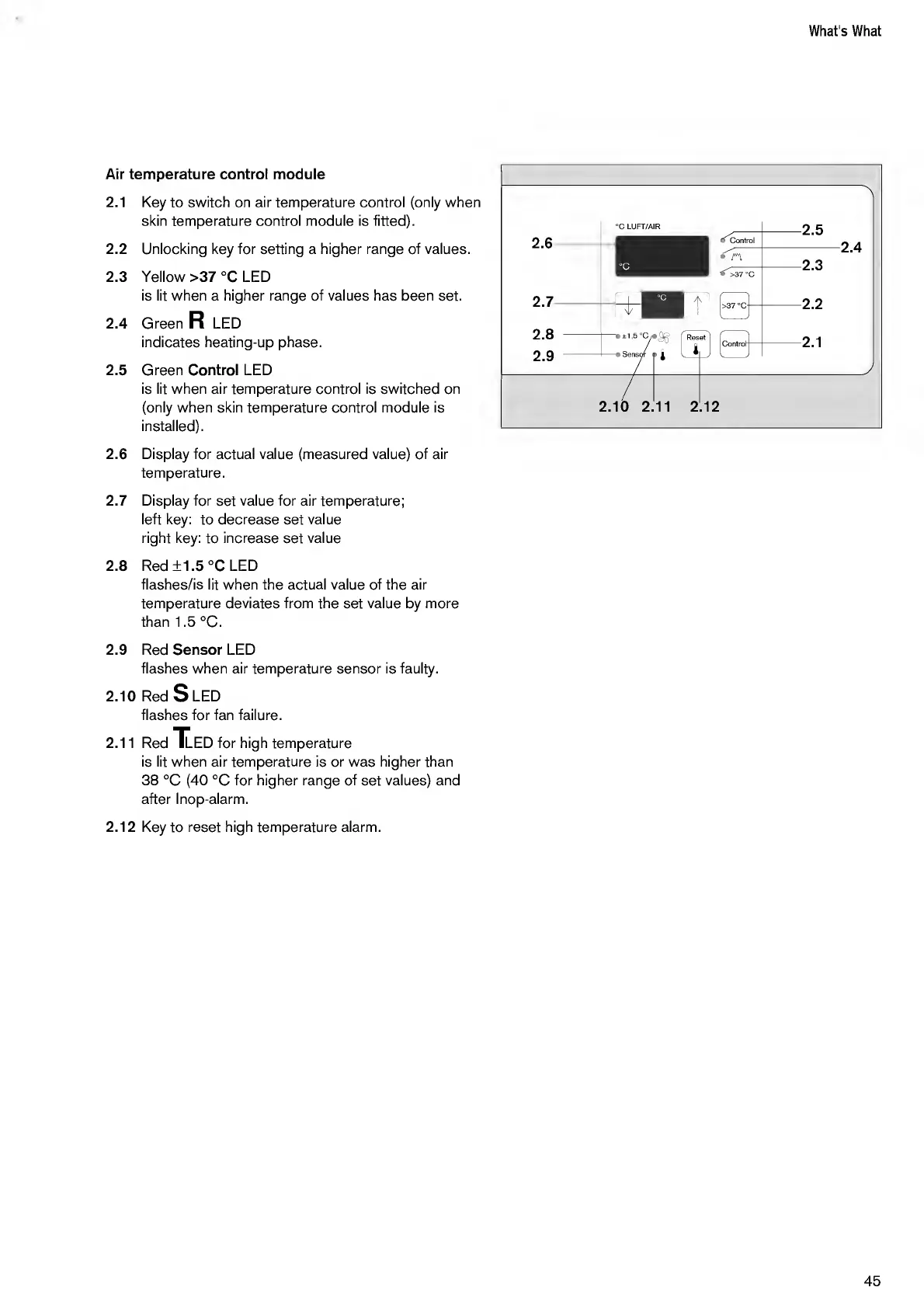

Air temperature control module
2.1 Key to switch on air temperature control (only when
skin temperature control module is fitted).
2.2 Unlocking key for setting a higher range of values.
2.3 Yellow >37 °C LED
is lit when a higher range of values has been set.
2.4 Green R LED
indicates heating-up phase.
2.5 Green Control LED
is lit when air temperature control is switched on
(only when skin temperature control module is
installed).
2.6
2.7
2.8
2.9
°C LUFT/AIR
’C
2.10 2.11 2.12
o 5
^Control
2 3
^ >37°C
2 2
v_/
o 1
Control A. 1
2.4
2.6 Display for actual value (measured value) of air
temperature.
2.7 Display for set value for air temperature;
left key: to decrease set value
right key: to increase set value
2.8 Red ±1.5 °C LED
flashes/is lit when the actual value of the air
temperature deviates from the set value by more
than 1.5 °C.
2.9 Red Sensor LED
flashes when air temperature sensor is faulty.
2.10 Red Sled
flashes for fan failure.
2.11 Red TlED for high temperature
is lit when air temperature is or was higher than
38 °C (40 °C for higher range of set values) and
after Inop-alarm.
2.12 Key to reset high temperature alarm.
