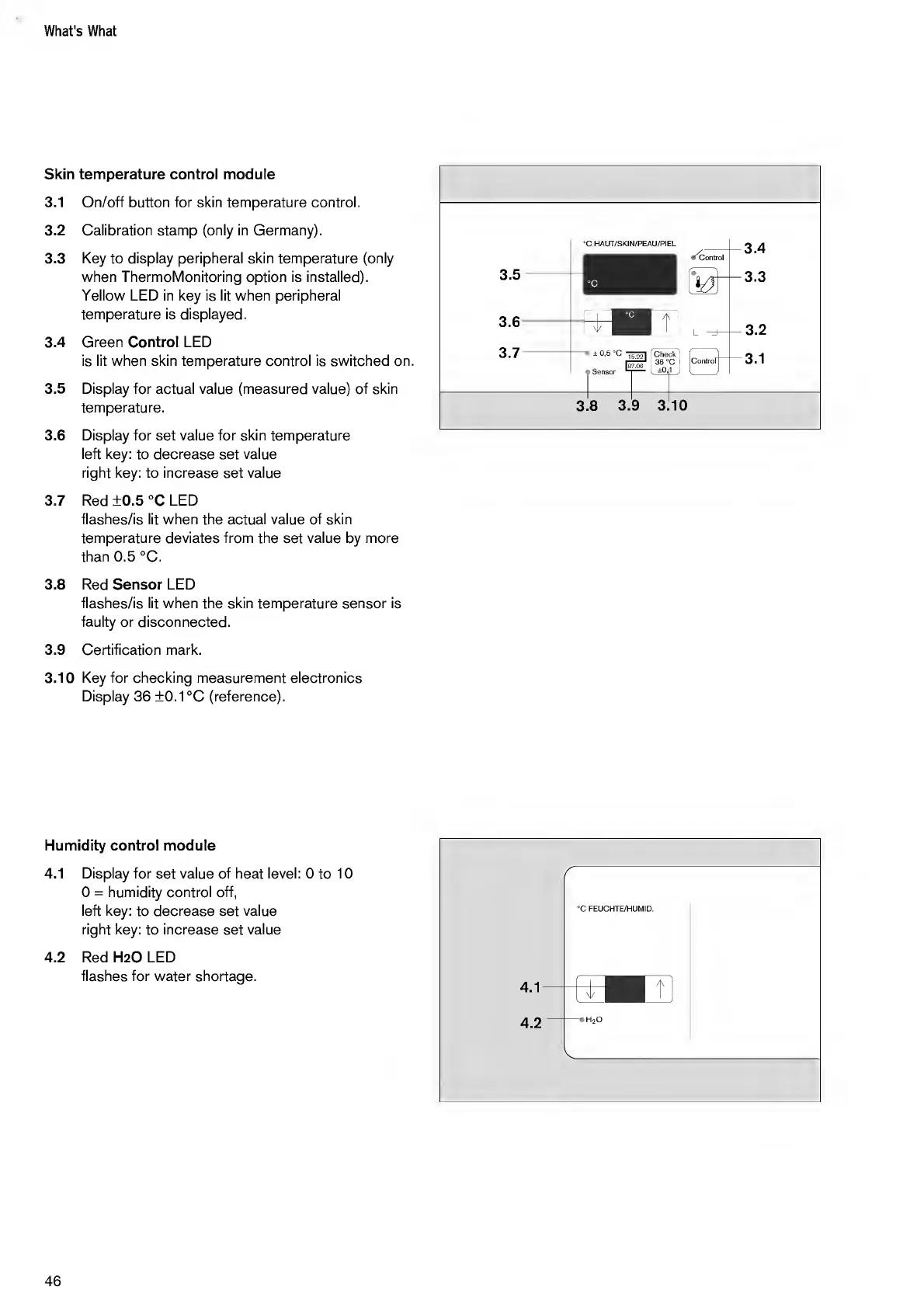

What's What
Skin temperature control module
3.1 On/off button for skin temperature control.
3.2 Calibration stamp (only in Germany).
3.3 Key to display peripheral skin temperature (only
when ThermoMonitoring option is installed).
Yellow LED in key is lit when peripheral
temperature is displayed.
3.4 Green Control LED
is lit when skin temperature control is switched on.
3.5 Display for actual value (measured value) of skin
temperature.
3.6 Display for set value for skin temperature
left key: to decrease set value
right key: to increase set value
3.7 Red ±0.5 °C LED
flashes/is lit when the actual value of skin
temperature deviates from the set value by more
than 0.5 °C.
3.8 3.9 3.10
3.8 Red Sensor LED
flashes/is lit when the skin temperature sensor is
faulty or disconnected.
3.9 Certification mark.
3.10 Key for checking measurement electronics
Display 36 ±0.1 °C (reference).
Humidity control module
4.1 Display for set value of heat level: 0 to 10
0 = humidity control off,
left key: to decrease set value
right key: to increase set value
4.2 Red H20 LED
flashes for water shortage.
