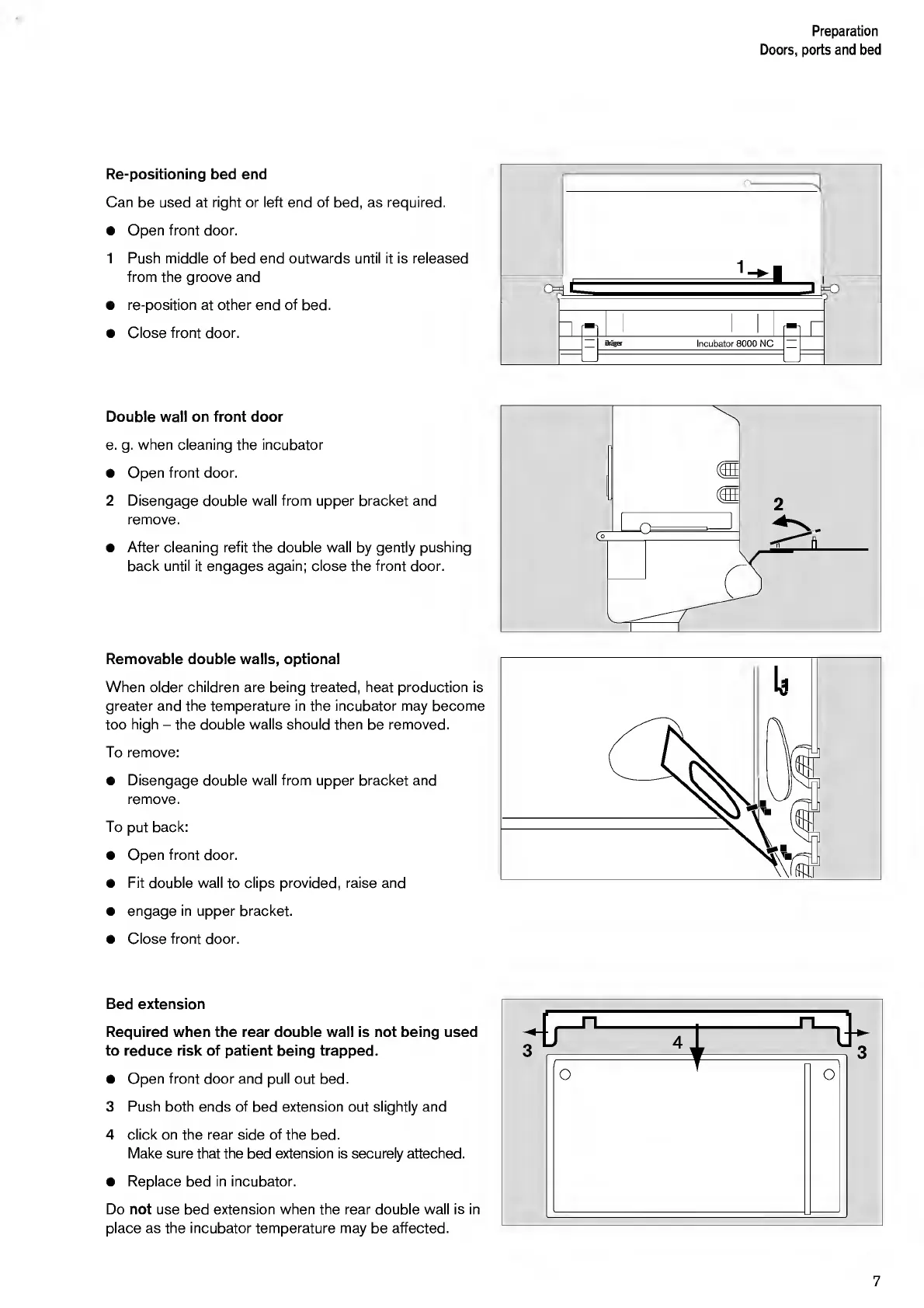

Dräger 8000 NC - Page 7

Preparation
Doors, ports and bed
Re-positioning bed end
Can be used at right or left end of bed, as required.
• Open front door.
1 P ush middle of bed end outwards until it is released
from the groove and
• re-position at other end of bed.
• Close front door.
Double wall on front door
e. g. when cleaning the incubator
• Open front door.
2 D i sengage double wall from upper bracket and
remove.
• After cleaning refit the double wall by gently pushing
back until it engages again; close the front door.
Removable double walls, optional
When older children are being treated, heat production is
greater and the temperature in the incubator may become
too high - the double walls should then be removed.
To remove:
• Disengage double wall from upper bracket and
remove.
To put back:
• Open front door.
• Fit double wall to clips provided, raise and
• engage in upper bracket.
• Close front door.
Bed extension
Required when the rear double wall is not being used
to reduce risk of patient being trapped.
• Open front door and pull out bed.
3 Push both ends of bed extension out slightly and
4 click on the rear side of the bed.
Make sure that the bed extension is securely atteched.
• Replace bed in incubator.
Do not use bed extension when the rear double wall is in
place as the incubator temperature may be affected.
7
