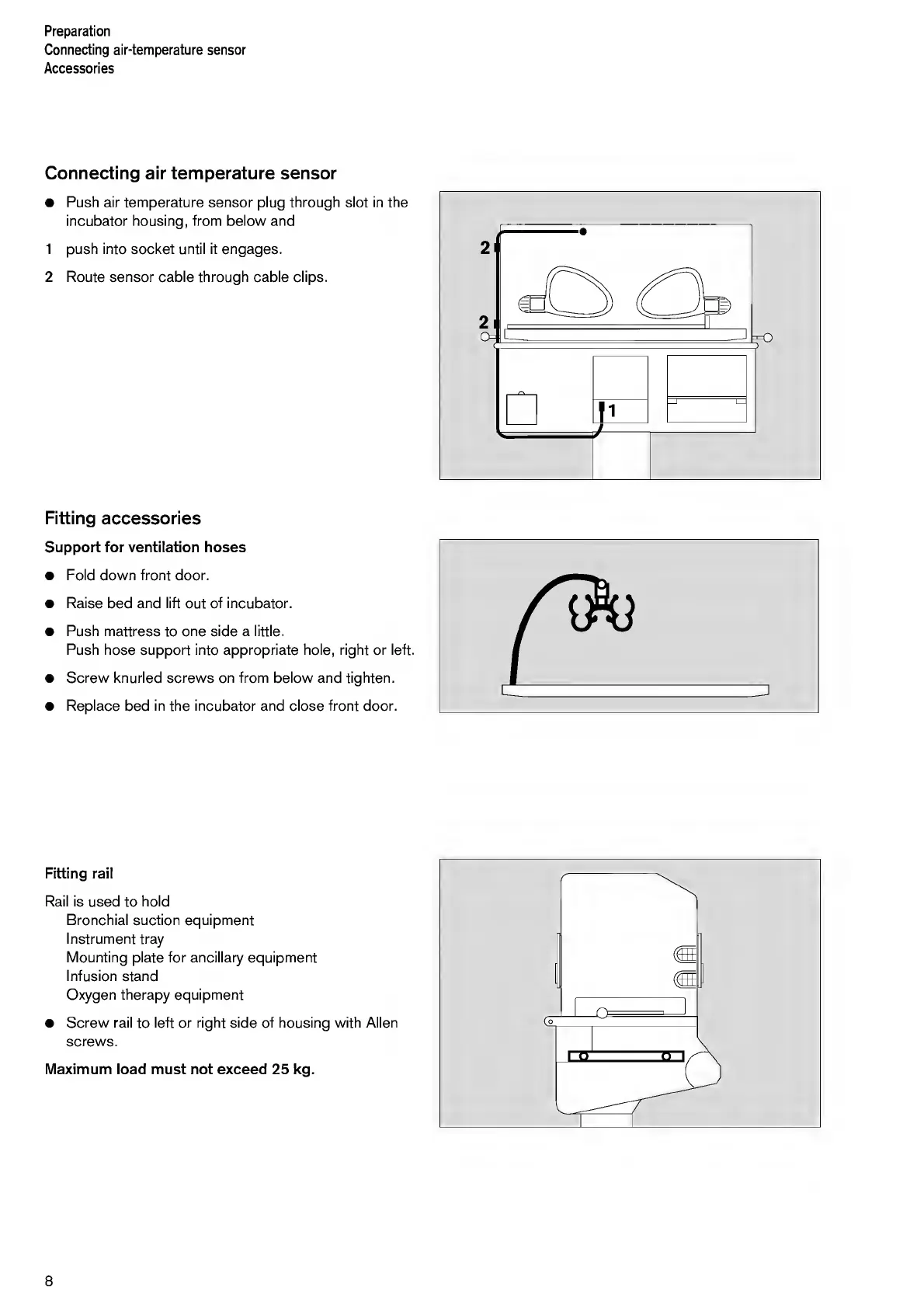

Preparation
Connecting air-temperature sensor
Accessories
Connecting air temperature sensor
• Push air temperature sensor plug through slot in the
incubator housing, from below and
1 push into socket until it engages.
2 Route sensor cable through cable clips.
Fitting accessories
Support for ventilation hoses
• Fold down front door.
• Raise bed and lift out of incubator.
• Push mattress to one side a little.
Push hose support into appropriate hole, right or left.
• Screw knurled screws on from below and tighten.
• Replace bed in the incubator and close front door.
Fitting rail
Rail is used to hold
Bronchial suction equipment
Instrument tray
Mounting plate for ancillary equipment
Infusion stand
Oxygen therapy equipment
• Screw rail to left or right side of housing with Allen
screws.
Maximum load must not exceed 25 kg.
8
