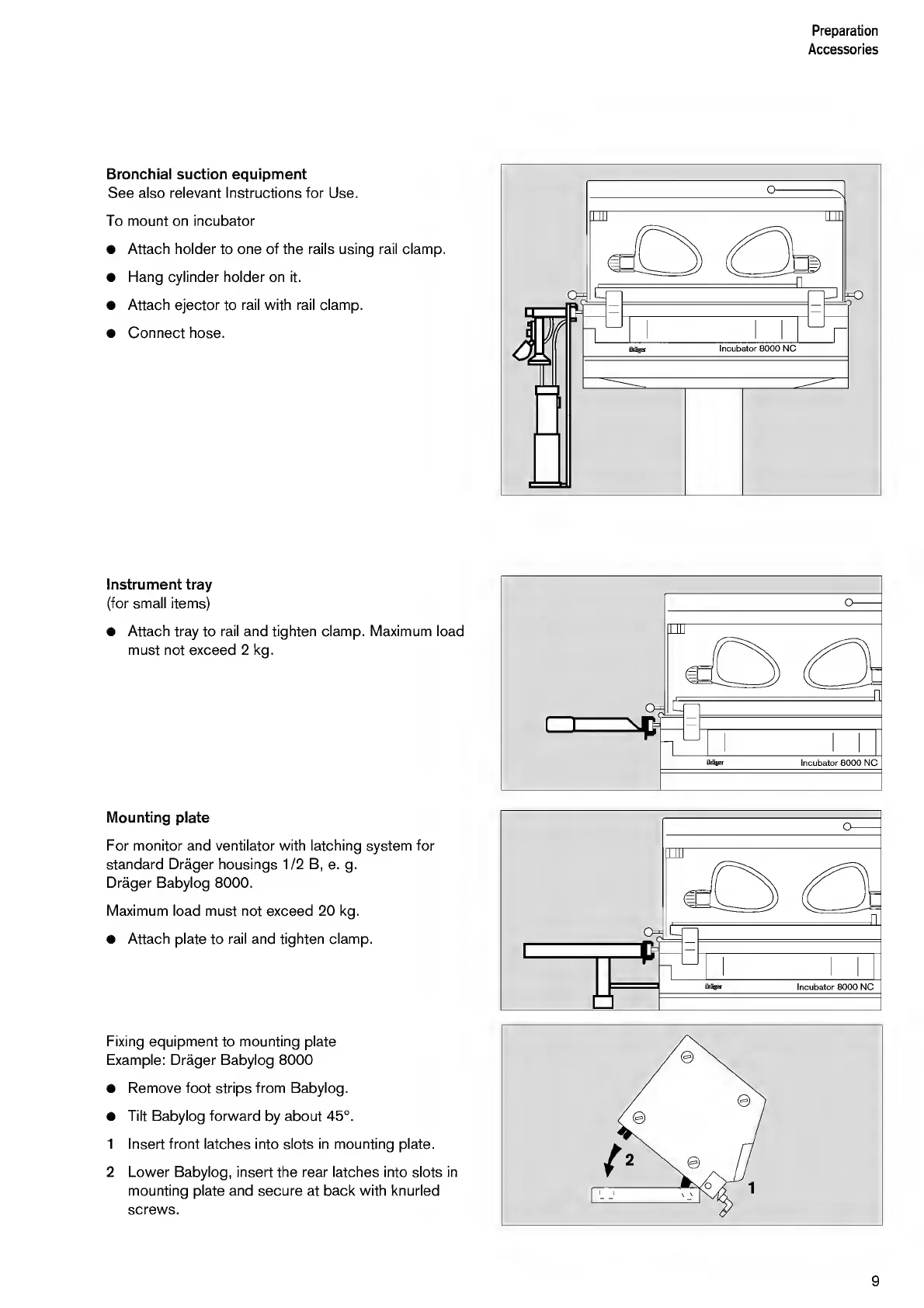

Preparation
Accessories
Bronchial suction equipment
See also relevant Instructions for Use.
To mount on incubator
• Attach holder to one of the rails using rail clamp.
• Hang cylinder holder on it.
• Attach ejector to rail with rail clamp.
• Connect hose.
Instrument tray
(for small items)
• Attach tray to rail and tighten clamp. Maximum load
must not exceed 2 kg.
Orager Incubator 8000 NC
Mounting plate
For monitor and ventilator with latching system for
standard Drager housings 1/2 B, e. g.
Drager Babylog 8000.
Maximum load must not exceed 20 kg.
• Attach plate to rail and tighten clamp.
Fixing equipment to mounting plate
Example: Drager Babylog 8000
• Remove foot strips from Babylog.
• Tilt Babylog forward by about 45°.
1 Insert front latches into slots in mounting plate.
2 Lower Babylog, insert the rear latches into slots in
mounting plate and secure at back with knurled
screws.
9
