Dräger Aerotest HP - Insert the Impactor; Insert Other Tubes

26
Insert the impactor
● Insert the impactor into the
adapter, in accordance with
the Instructions for Use.
● Insert the impactor, with
adapter, in the Dräger tube
holder.
● Pull the bottom end of the
Dräger tube holder and
insert the adapter completely
into the Dräger tube holder.

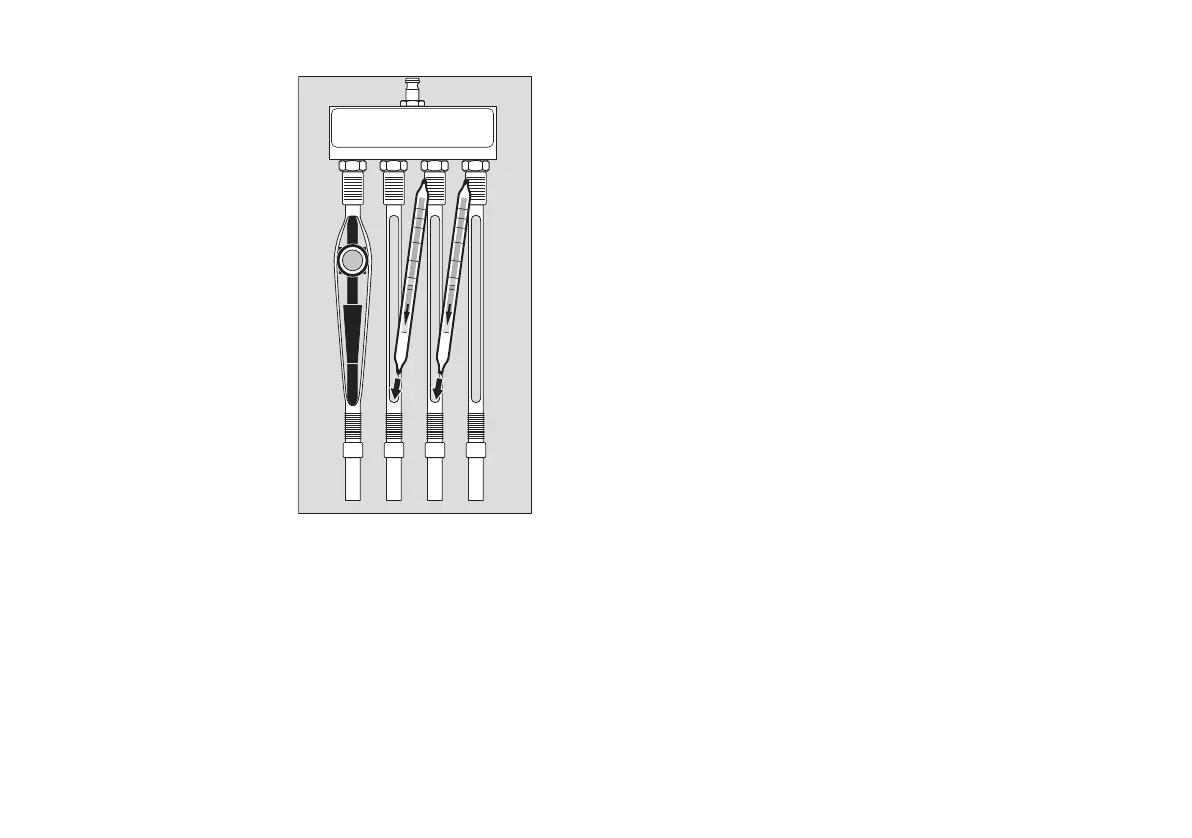

00621765.eps
Oil CO
2
CO H
2
O
Insert other tubes
● Break off Dräger tubes as described, see “Prepare Dräger tube”
on page 25, and insert into the Dräger tube holder in the direction
shown by the arrow.
● Pull on the bottom end of the Dräger tube holder until the Dräger
tube can be completely inserted in the Dräger tube holder.
