Using the MultiTest med. Int.
Insert tube
The following media can be tested:
O
2
, Air, CO
2
, N
2
O and N
2
.

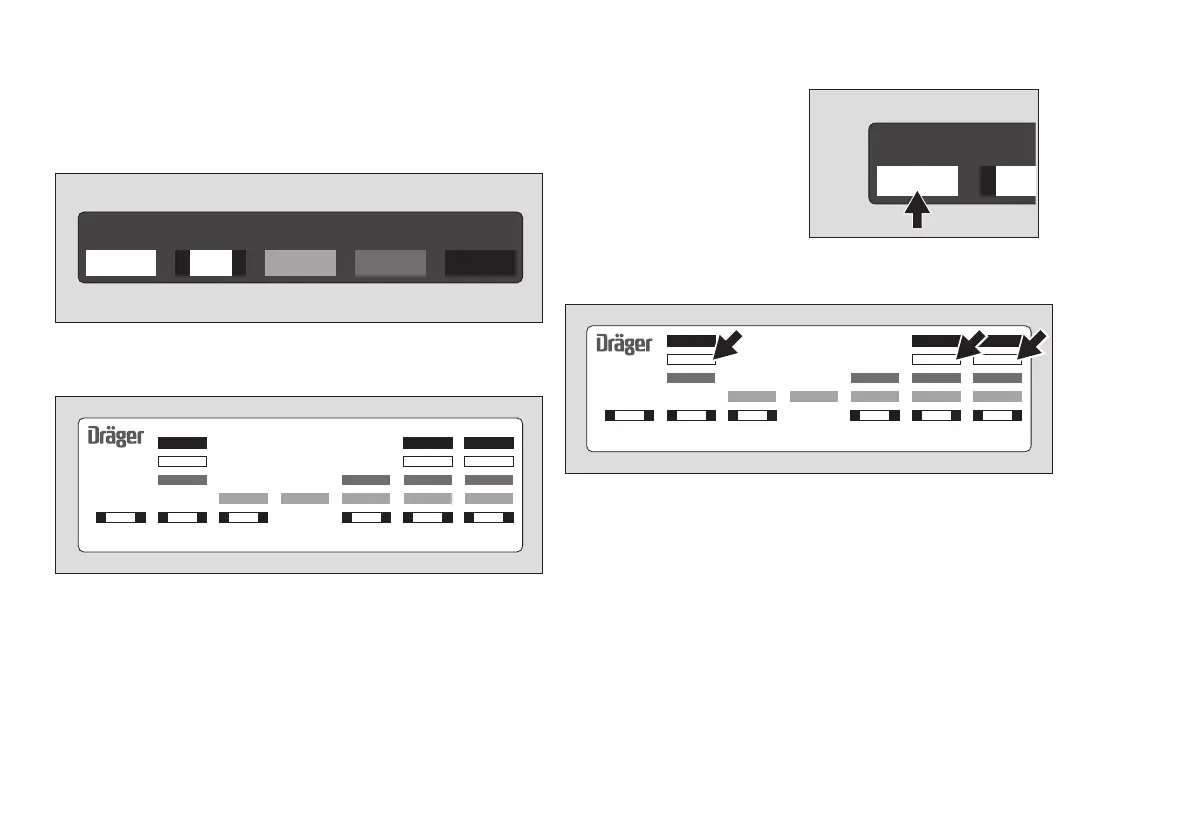

Two signs can be found on the measuring device:
Sign 1
Sign 1 specifies the media that can be tested. A colour can be found
under the testable media.
Sign 2
Sign 2 specifies the substances that can be detected. A sequence of
colours is located above each substance.
01321765.eps
O
2
Air CO
2
N
2
O N
2
01421765.eps
Oil CO
2
SO
2
H
2
S NO
x
CO H
2
O
Example:
Measuring the O
2
supply
Sign 1
– The colour white is shown
below the O
2
symbol.
● For test times, see the table
(see “Table of measurement
recommendations/limit
values for MultiTest” on
page 29).
Sign 2
● Fit the measuring device with the white test tube (here CO
2
, CO
and H
2
O).
● Break off the Dräger tubes as described, see “Prepare Dräger
tube” on page 25 and insert them in the Dräger tube holder in the
direction shown by the arrow.
● Pull on the bottom end of the Dräger tube container until the
Dräger tube can be completely inserted in the Dräger tube holder.
01521765.eps
O
2
Air
01621765.eps
Oil CO
2
SO
2
H
2
S NO
x
CO H
2
O
