RF Module pins
The Taranis, Turnigy 9x, and other RC transmitters with a removable RF module can be
connected using the RF module Pins. This is generally the simplest method of connection as
the RF module pins supply both power and signal to the DragonLink transmitter. If the "RF
Module cable" option was selected at the time of purchase, you should have received the

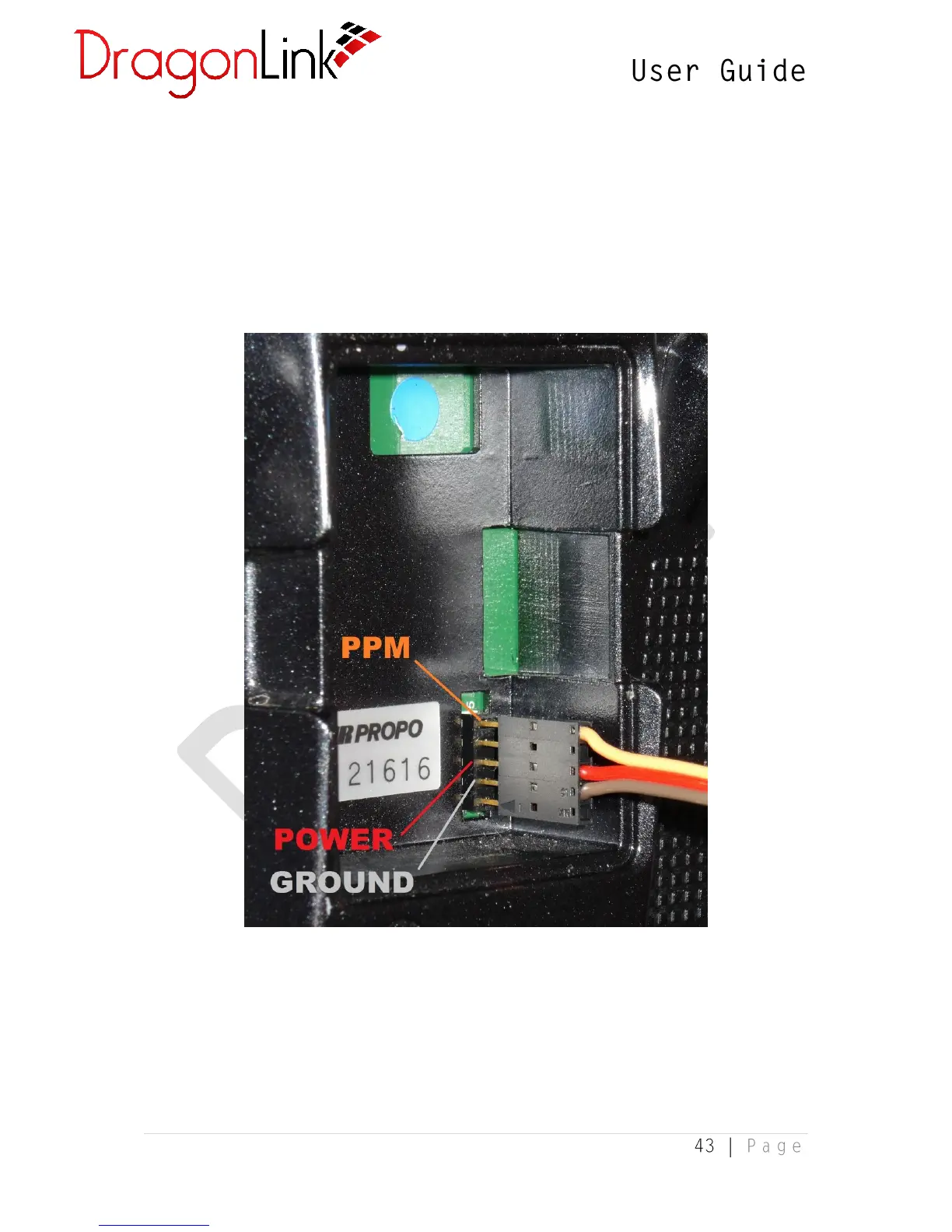

cable with one end having a plug matching the picture below. This can be connected directly
onto the RF module pins as shown. Ensure the cable is not connected to the module bay
pins in reverse.
3.5mm Jack Connector
This is the most common type of connection for Spektrum, JR, Walkera, Hitech, and other
brands of RC controllers. Two connections are required for the DragonLink Transmitter
when using this type of cable:
