FOAM PADDING
Compress
foam padding.
Side Channel
Mounting Hardware
(by others)
Side
Channel
6.
Place modified
Side Channel
into 'U' Channel
and secure it with
appropriate mounting
hardware, through
the center of Foam
Padding, through
'U' Channel, and
then into mounting
surface.
Please Note:
Install fasteners
no more than 24"
(610mm)
apart.
SIDE CHANNEL
(Left hand, outside view)
(Left hand, outside view)
Side Channel Cross Section
Angled leg of FABRIC RETAINER STRIP
must be oriented towards back
FOAM
CUSHION
FOAM
CUSHION

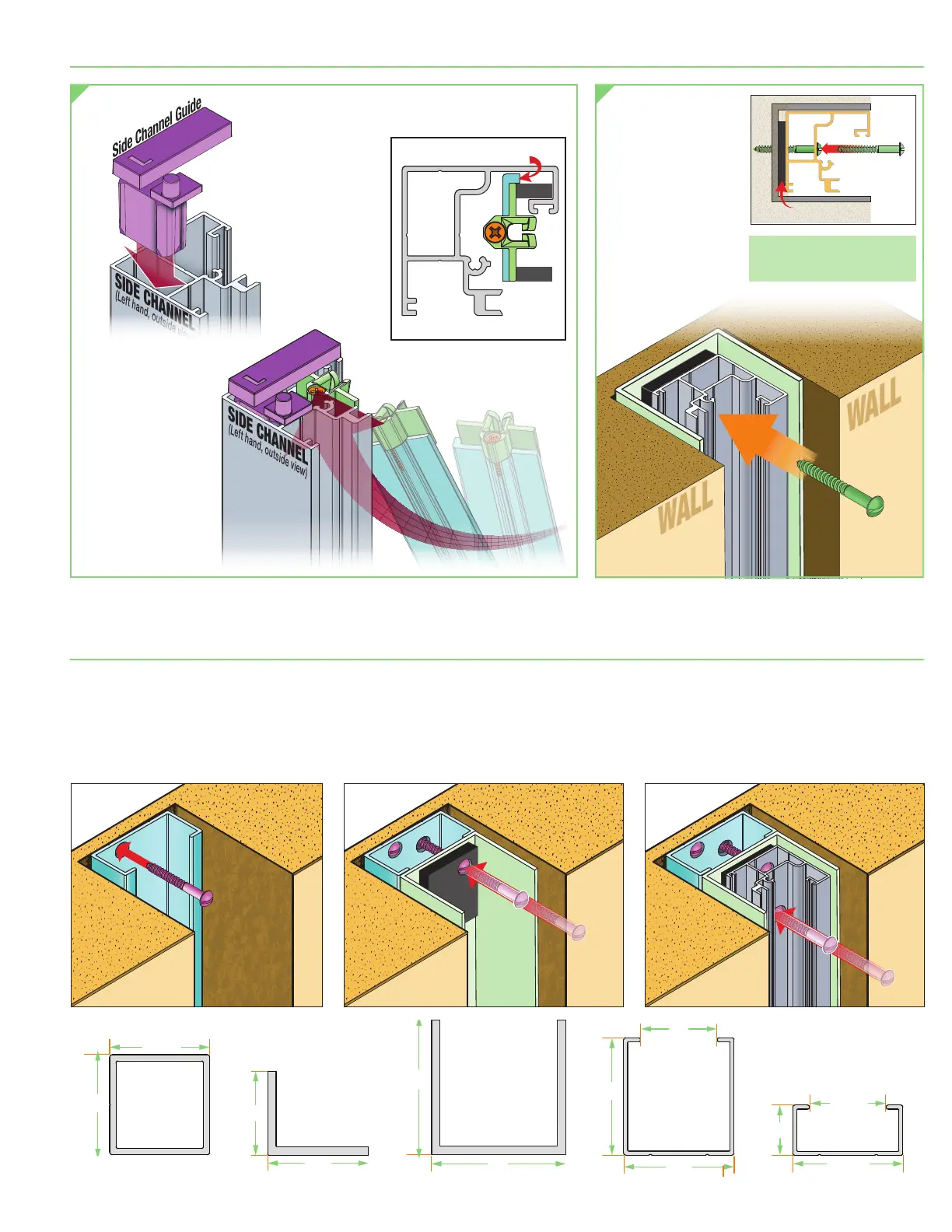

5.
A. Insert Side
Channel Guide
into Side
Channels.
B. Re-Insert Fabric
Retainers into
Side Channels.
1"
(29mm)
1"
(41mm)
"
¾
" Fur Out
1"
1"
L Angle
(29mm)
1"
"
1
¾
" Fur Out
1"
(38mm)
1"
(38mm)
1
½
" Tube
2"
2"
(51 mm)
2" U Channel
Section 9 - Channel Adaptors
(Optional Hardware)
If opening is not suitable for direct
mounting due to uneven surfaces,
stonework, trim, or other irregular
element, use Channel Adaptors to
build in or fur out an opening for Side
Channel or headbox attachment.
Channel Adaptors can provide a
mounting surface for both the Side
Channels and headbox. If necessary,
installer can "stack" a sufficient
number of tubes to bring the opening
flush from floor to ceiling.
Use and configuration of Channel Adaptors
is site dependent: Each installation may
require different adaptors or a combination of
adaptors. Installer is responsible for safely and
securely attaching Channel Adaptors to prepare
each opening for best installation of the product.
page 11 of 16
FlexShade
®
