3 "
(92mm)
3 "
(92mm)
FlexShade
®
ZIP 92
Square
Headbox
SECTION 5, PAGE 6: Direct Mounting to Ceiling or Wall
(Alternate Installation Method)
Please Note:
Refer to appropriate sections within this document for different installation options:
SECTION 2, PAGE 4: Mounting Headbox with Brackets
(Standard Installation Method)
Please Note:
Draper recommends that a team of at least TWO
(2)
people install this product.
Caution:
Before mounting shades, verify measurements on label provided with shade,
and ensure unit is installed at correct width.
Please Note:
Installer is responsible for selecting mounting hardware appropriate for site conditions.
1. Inspect all items prior to assembly:
a) Open cartons lengthwise and lay out all pieces.
b) Ensure that product is as ordered by checking
pieces against Page 1 of this document.
c) Arrange all pieces on flat surface in the general
manner they are to be installed.
2. Ensure mounting surface is strong enough to hold unit.
3. Look for any site conditions that could interfere with
installation or operation.
4. Verify unit measurements, ensuring it will fit in the
desired location.

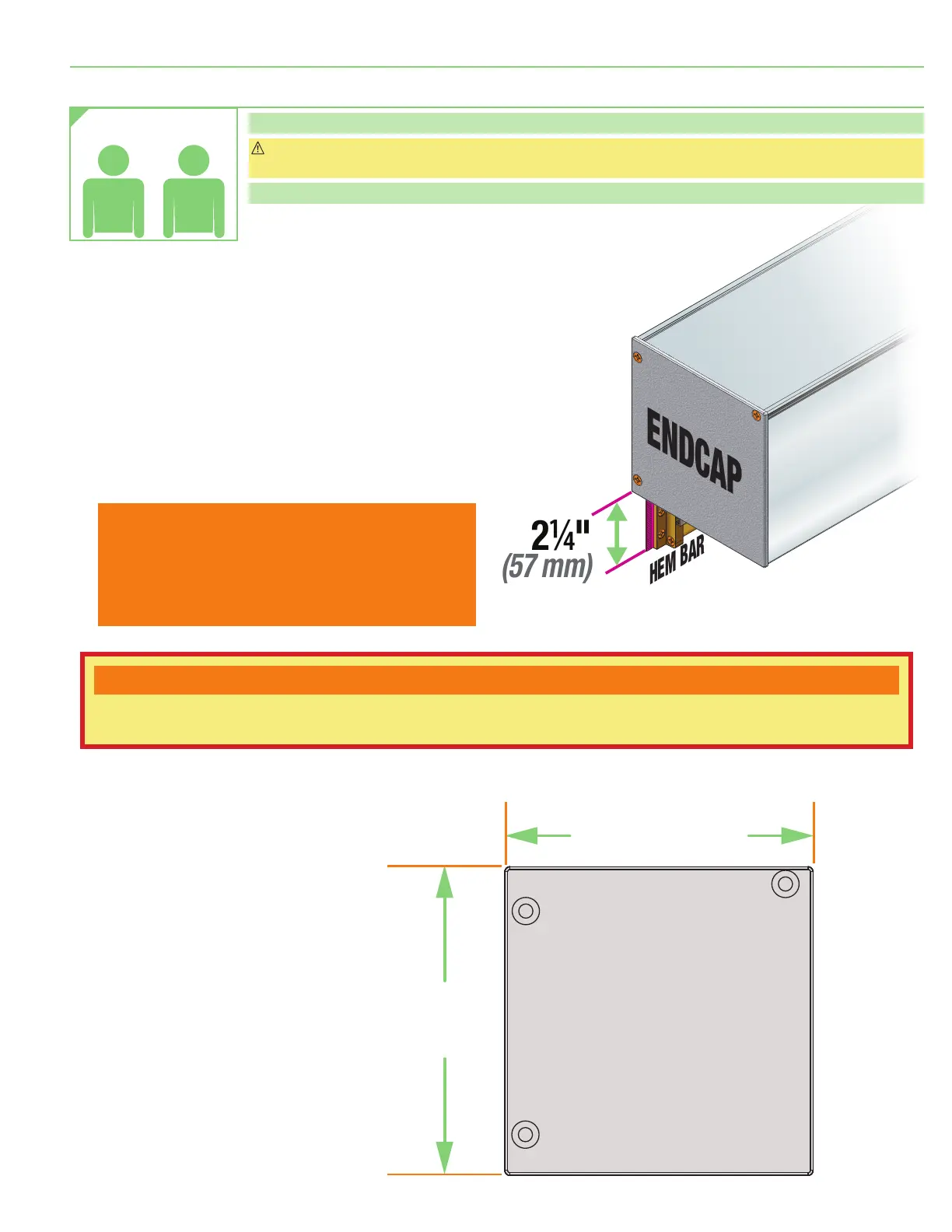

Please Note:
Hem Bar does
NOT
retract into the Headbox.
Provide at least 2
¼
"
(57mm)
clearance if mounting
over a swinging window or door. Refer to Section
16, P. 15 for Hem Bar dimensions and details to
determine adequate clearance.
21
RECOMMENDED
PERSONNEL
Section 1 - Site Preparation
ENDCAP
DIMENSIONS
page 3 of 16
FlexShade
®
Crank-Operated ZIP
To Next Page
