Draper FlexShade - Reinstalling Side Channel Covers; Hem Bar Liner (Optional); Anti-Insect Brush Seals

SIDE CHANNEL COVER
SIDE CHANNEL COVER
2.
Replace the screws
removed in
Sec. 4, Step 1.
Please Note:
Failure to use
provided fasteners
to re-attach Side
Channel covers
may result in
product failure in
high wind.

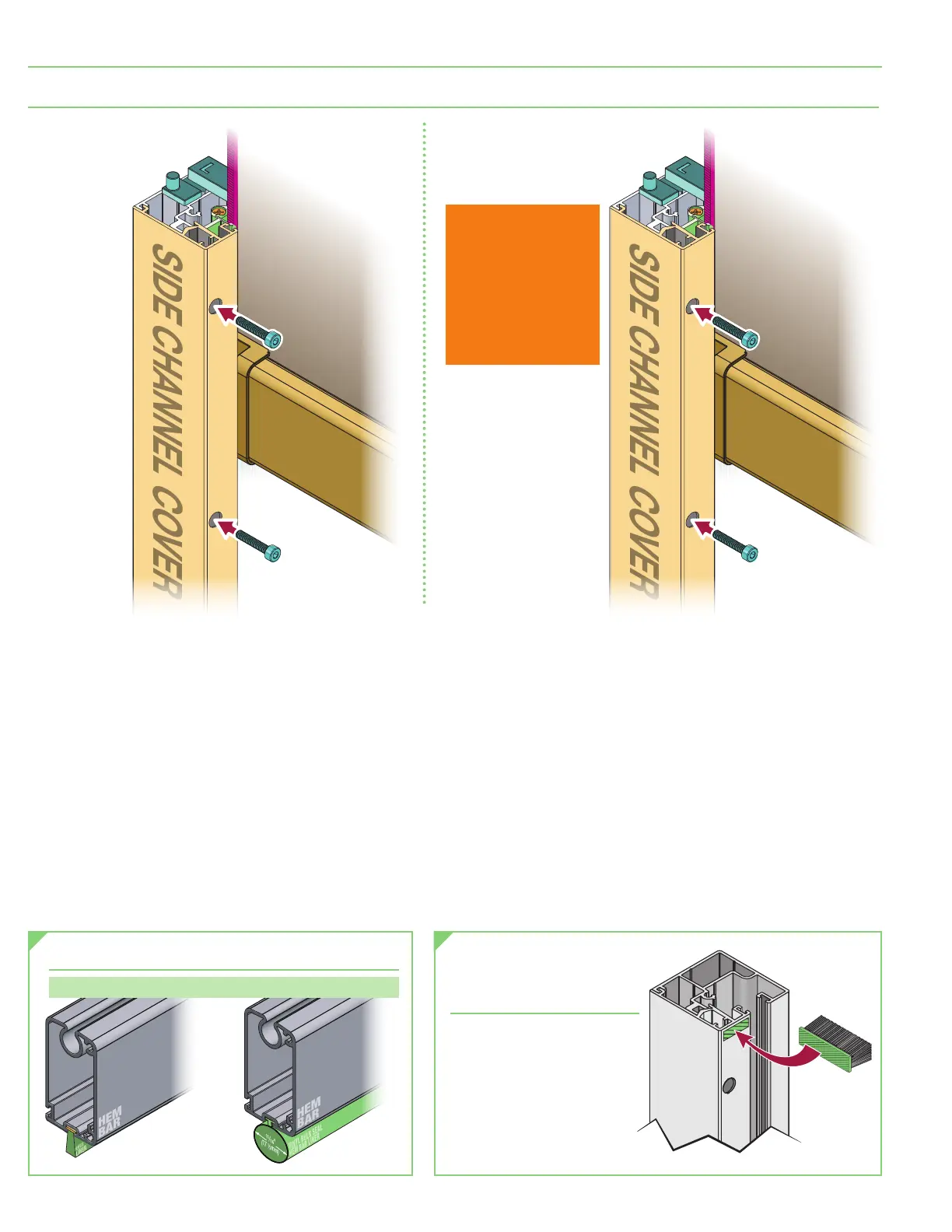

Section 10 - Reinstalling Side Channel Covers
1.
Re-attach
Side Channel
Covers.
HEM
BAR
VINYL BULB SEAL
HEM BAR LINER

(17 ½mm)
HEM
BAR
HEM BAR
LINER
Section 11 - Hem Bar Liner (Optional)
Please Note: Liner is factory installed (if ordered) .
TOP OF
SIDE
CHANNEL
Section 12 -
Anti-Insect
Brush Seals
Optional. If ordered, comes
pre-installed along the width
of the fascia. The brush seals
supplied for each of the side
channels need to be installed.
Remove the double-sided
tape and apply to the side
channels.
FlexShade
®
Crank-Operated ZIP
page 12 of 16
