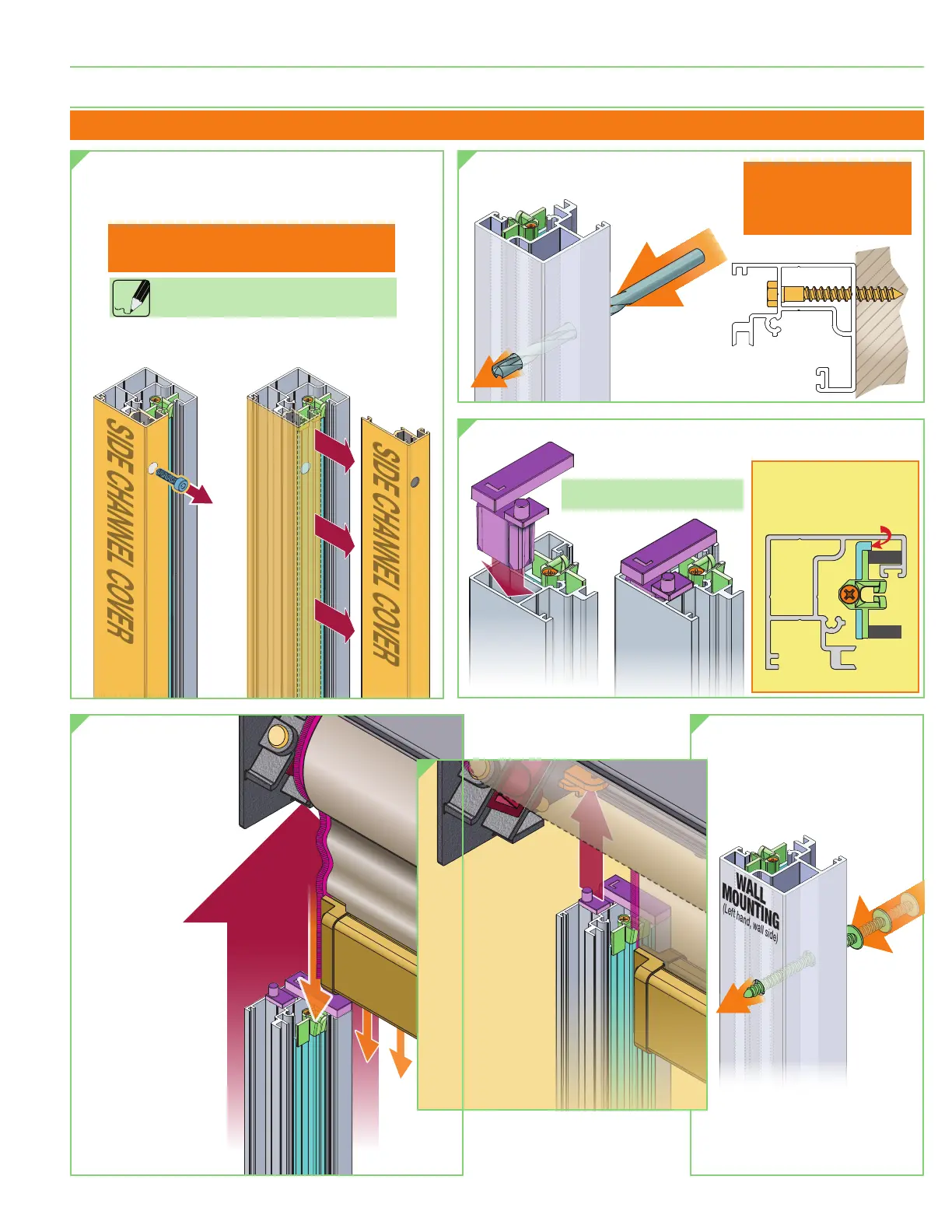

1.
Section 6 -
Installing Side Channels: Wall or Face Mounted Shade
NOTE:
Side Channels must be installed parallel, plumb, and square, with a tolerance of +/-
⁄
"
(3mm)
.
3.
Insert Side Channel Guide into
Side Channels.
Please Note:
Guides are labeled
" L"
(Left)
and "R"
(right)
.
5.
Move Side
Channel
into final position
while engaging
Side Channel
Guide with
locator tab on
the back side of
Endcap, behind
Roller.
4.
While bringing
Side Channel
into position,
insert shade
fabric Zipper on
one side of Hem
Bar into fabric
retainer in Side
Channels.
WARNING:
Do NOT remove the Bottom
Caps from Side Channels.
A. Use a 3mm Hex Wrench to remove screws
from Side Channels.
B. Remove Side Channel Covers.
2.
Mark and drill Side Channels
at desired mounting points.
Please Note:
REQUIRED attachment
of Side Channel to
structure: MINIMUM of
every 24"
(61cm)
.
6.
Attach Side Channels
to wall/structure. Use
appropriate fasteners
spaced MINIMUM of
every 24".
7.
Proceed to
Section
10 - Reinstalling
Side Channel Covers
(Page 12)
.
TIP:
Use a pencil to scribe "L"
(left)
and "R"
(right)
on inside of covers.
