UP
SIDE CHANNEL
(Left hand, outside view)
SIDE CHANNEL
(Left hand, outside view)
JAMB
MOUNTING
(Left hand, jamb side)
SIDE CHANNEL
(Left hand, outside view)
B
Side Channel Cross Section
Angled leg of FABRIC RETAINER STRIP
must be oriented towards back
FOAM
CUSHION
FOAM
CUSHION
Please Note:
Ensure foam
cushions are not pinched,
folded or deformed.
2.
Remove Fabric Retainer Strips
from Side Channels.

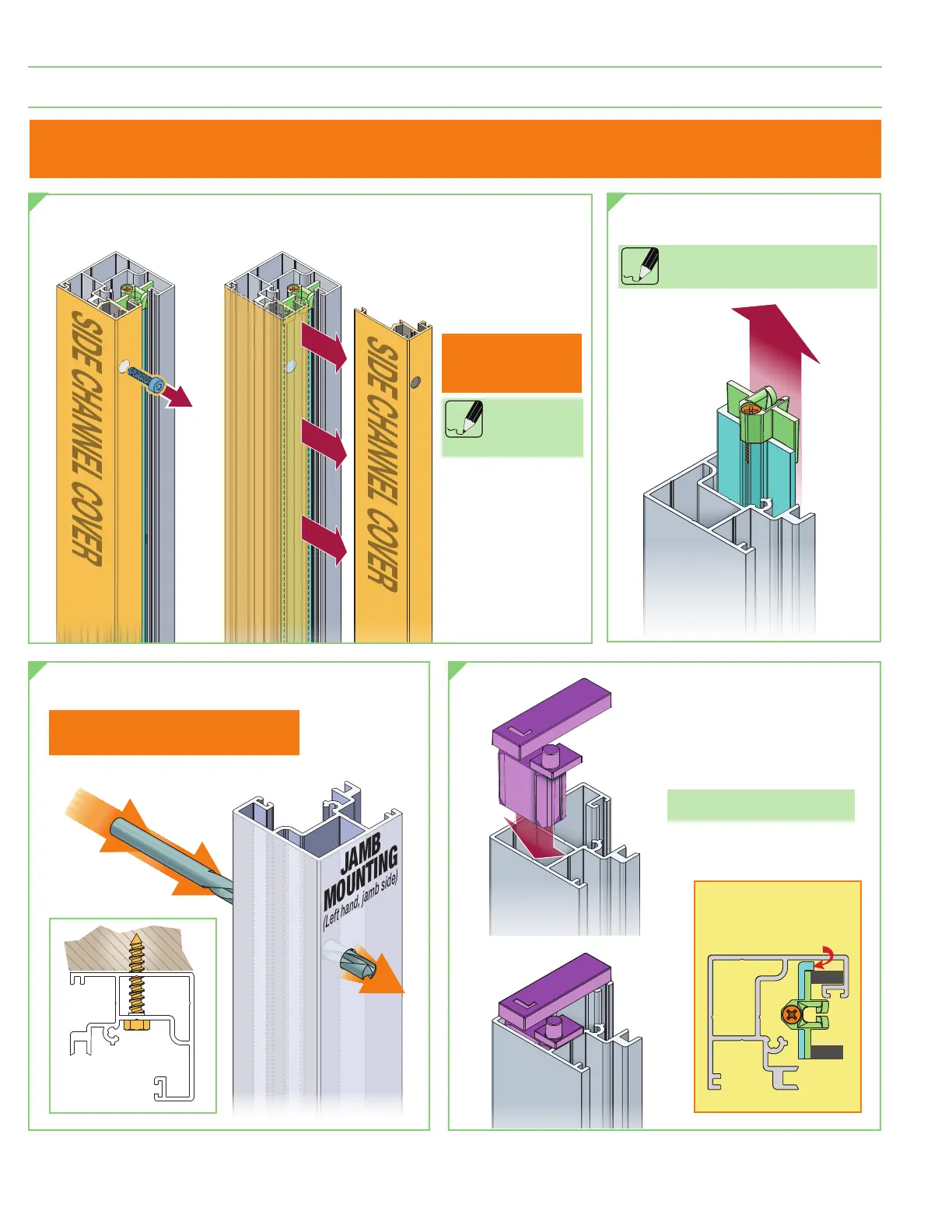

Section 7 - Installing Side Channels: Jamb Mounted Shade
1.
WARNING:
Do NOT remove the
Bottom Caps from
Side Channels.
A. Use a 3mm Hex Wrench
to remove screws from
Side Channels.
B. Remove Side
Channel Covers.
IMPORTANT:
Side Channels must be installed parallel, plumb, and square,
with a tolerance of +/-
⁄
"
(3mm)
.
3.
Insert Side Channel Guide
into Side Channels.
Please Note:
Guides are labeled
" L"
(Left)
and "R"
(right)
.
2.
Mark and drill Side Channels
at desired mounting points.
Please Note:
REQUIRED attachment of
Side Channel to structure: MINIMUM
of every 24"
(61cm)
.
TIP:
Use a pencil
to scribe "L"
(left)
and "R"
(right)
on
inside of covers.
TIP:
Use a pencil to scribe "L"
(left)
and "R"
(right)
on inside of covers.
FlexShade
®
Crank-Operated ZIP
page 8 of 16
