Draper FlexShade - Page 9

SIDE
CHANNEL
CHANNEL
GUIDE
5.
A.

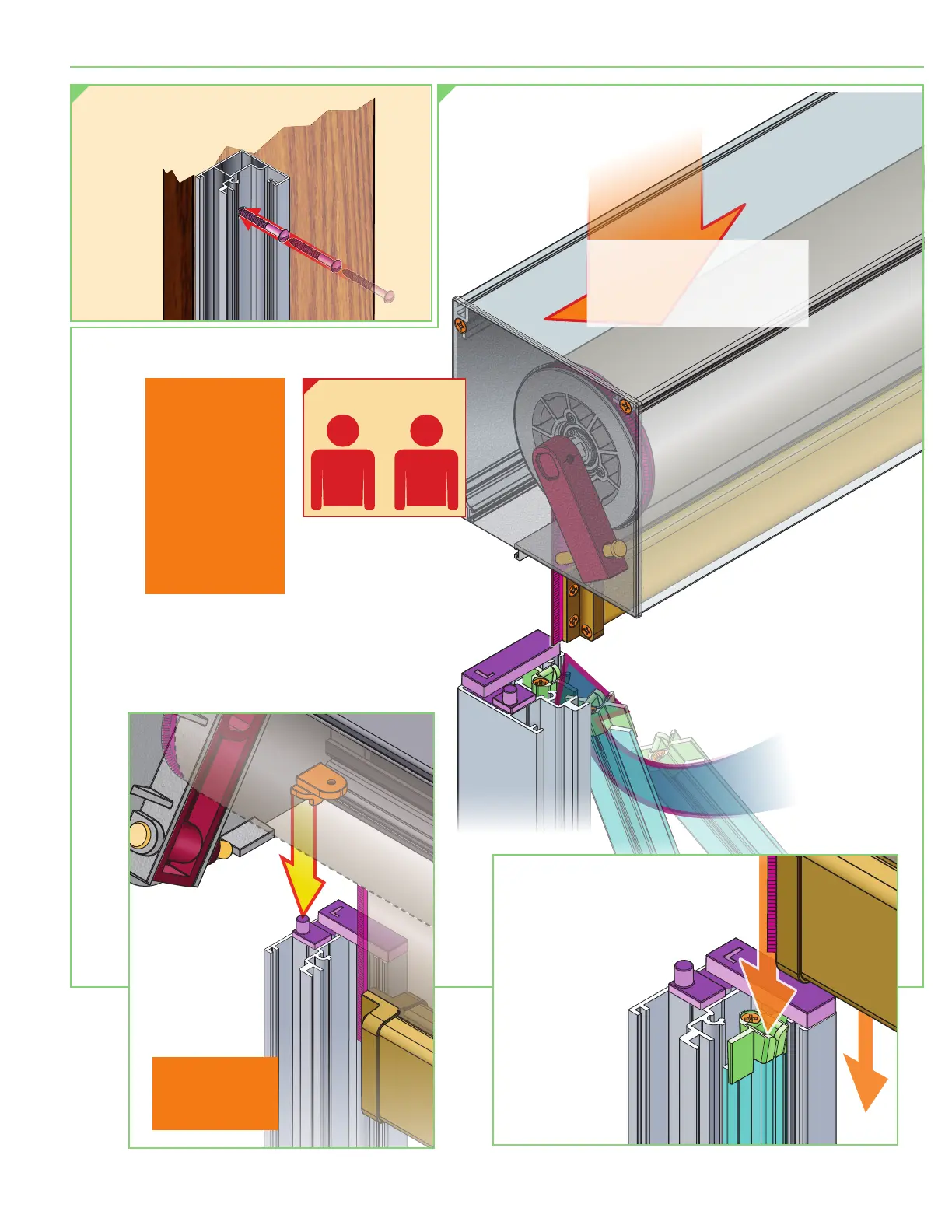

Carefully LOWER the
Headbox into position
and rest it on top of
Side Channels.
Please Note: At
least TWO (2)
installers are
required for
safe and proper
installation of
this product.
The following
4 steps must
happen AT THE
SAME TIME:
4.
Attach Side Channels
to mounting surface.
21
PERSONNEL
REQUIRED
C.
Insert Fabric Retainer Strip
into the Side Channels.
B.
While lowering Headbox, ensure that the
Side Channel Guide (shown in purple, at
right) engages with Locator Tab (shown in
orange, below) on the Endcap.
D.
Capture the Zipper with
the "funnel" piece at
the top of the Fabric
Retainer Strip.
Please Note:
Fascia and Shade
Roller not shown
for illustration
purposes ONLY.
page 9 of 16
FlexShade
®
Crank-Operated ZIP
