Draper FlexShade - Removing Fascia; Removing Shade Roller Assembly

FASCIA
HEM BAR
HEM BAR

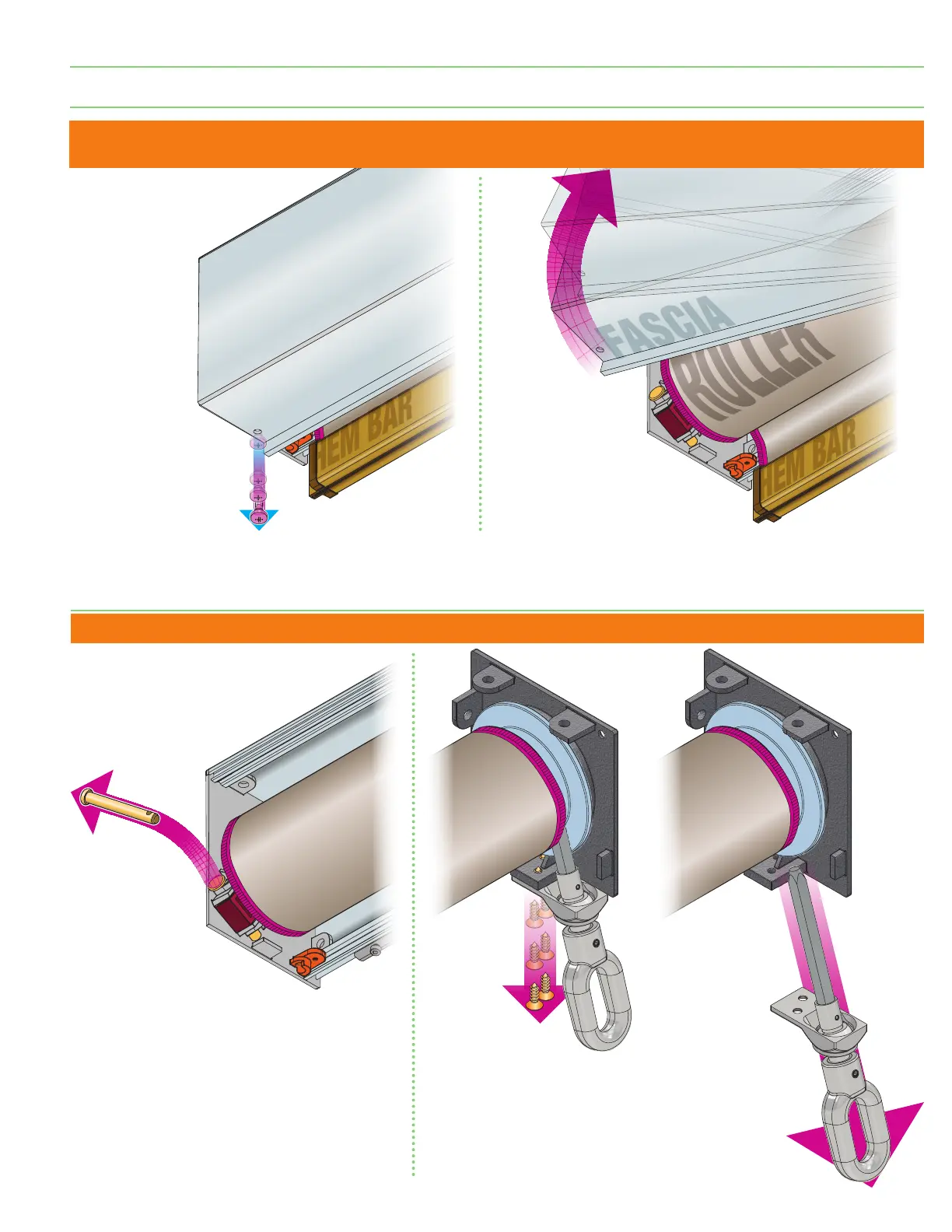

Section 3 - Removing Fascia (Optional Step)
Section 4 - Removing Shade Roller Assembly (Optional Step)
Please Note: Shade Roller O NLY requires removal if directly attaching shade to mounting surface (Section 5, Page 6) .
Please Note: Fascia ON LY requires removal if directly attaching shade to mounting surface (Section 5, Page 6) .
Removing fascia is OPTIONAL for all other methods of installation.
1.
Remove the
Quick Release Pin
from Idler End of
Roller Assembly.
1.
Remove Screws
from bottom
of Headbox.
2.
Remove
Fascia
and set
aside.
2.
Remove Crank Operator
and set aside.
3.
Remove the Roller Assembly,
Idler End first, and carefully
set aside.
page 5 of 16
FlexShade
®
Crank-Operated ZIP
