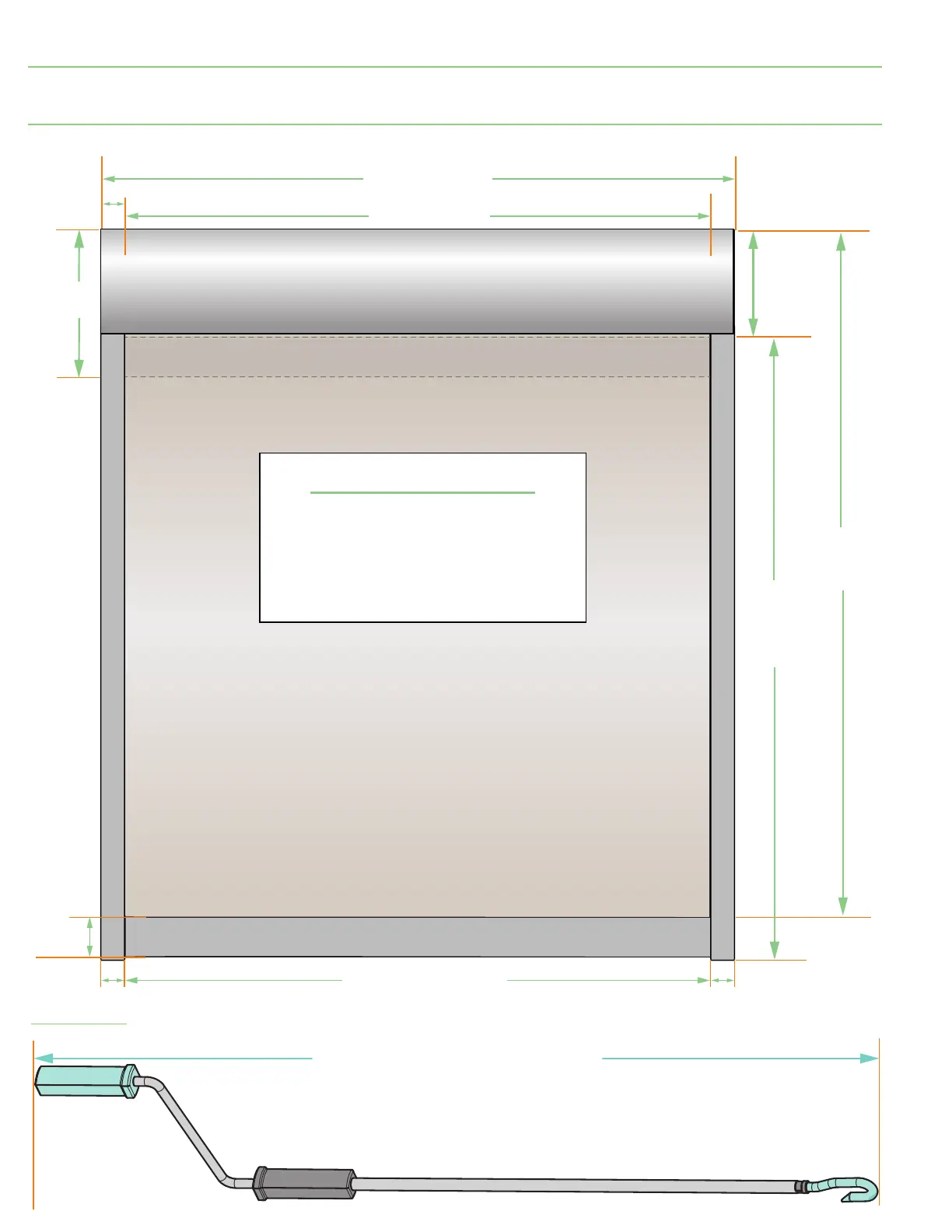

Draper FlexShade - Overall Dimensions

1  "
(30mm)
Shade Width
Shade
Height
Side
Channel
Length
Hem Bar Length
Fabric Width
B
2 "
(57mm)
A
1 
(41mm)
1 
(41mm)
Headbox
Height
A:
FOR ZIP 92
+ =
Hem
Bar
5
(149mm)
Headbox
Height
B:
=
3
(92mm)
Available Crank Handle Sizes:
48"
(122cm)
60" (152cm)
72" (183cm)
Crank Handle
Section 15 - Overall Dimensions
FlexShade
®
Crank-Operated ZIP
page 16 of 16
