Draytek Vigor300B User Manual

Vigor300B Series User’s Guide
2
D
D
e
e
s
s
c
c
r
r
i
i
p
p
t
t
i
i
o
o
n
n
f
f
o
o
r
r
L
L
E
E
D
D

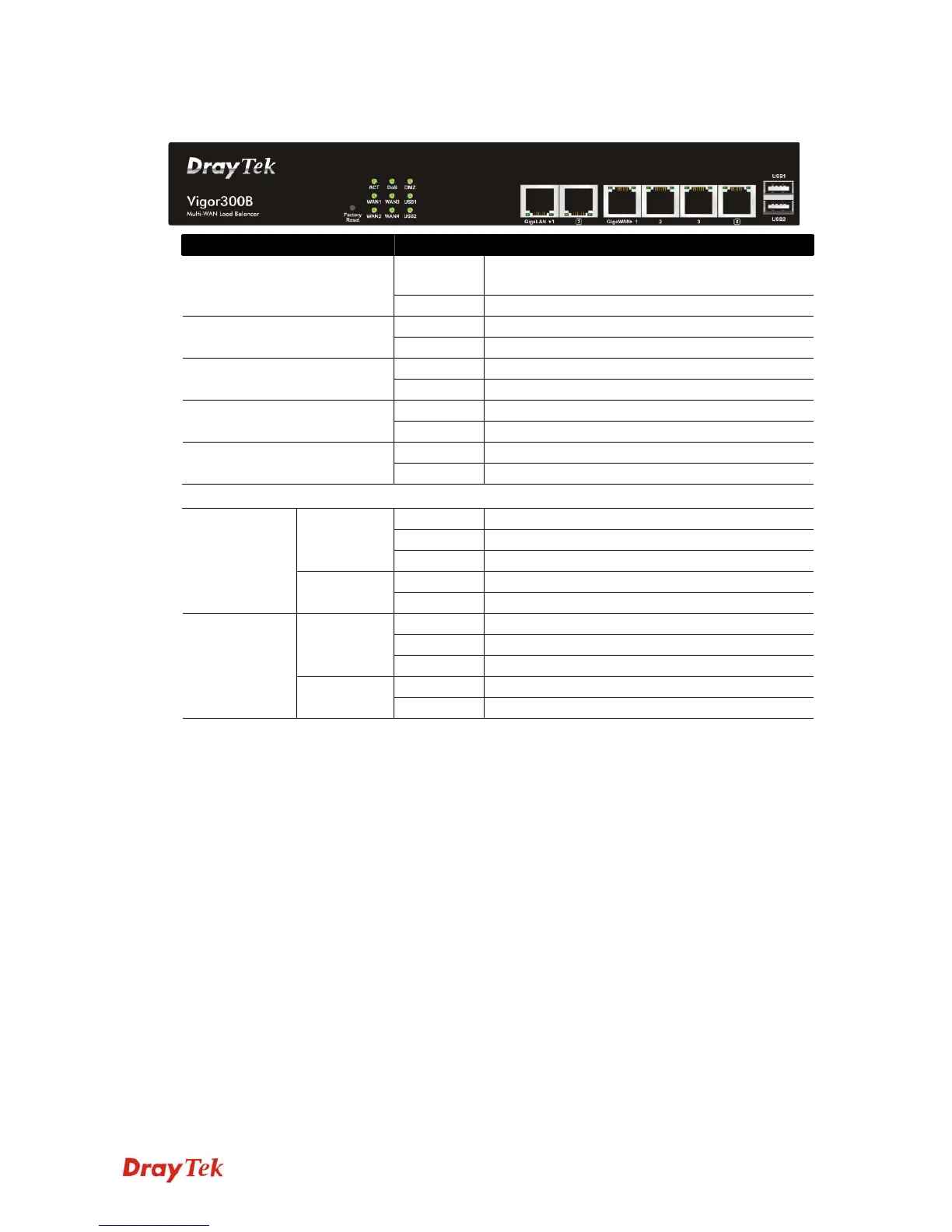

LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On The DoS/DDoS function is active. DoS
Blinking It will blink while detecting an attack.
On DMZ Host is specified in certain site. DMZ
Off DMZ Host is inactive.
On The WAN1 or WAN2 connection is ready. WAN1 ~ WAN4
Blinking It will blink while transmitting data.
On USB device is connected and ready for use. USB1 ~ USB2
Blinking The data is transmitting.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
LAN 1/2
(Giga)
Right LED
(Green)
Off The port is disconnected with 10/100Mbps.
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN 1/2/3/4
(Giga)
Right LED
(Green)
Off The port is disconnected with 10/100Mbps.
