Drive 15005LP - Assembly - 15005 LP Model; Parts Identification

12

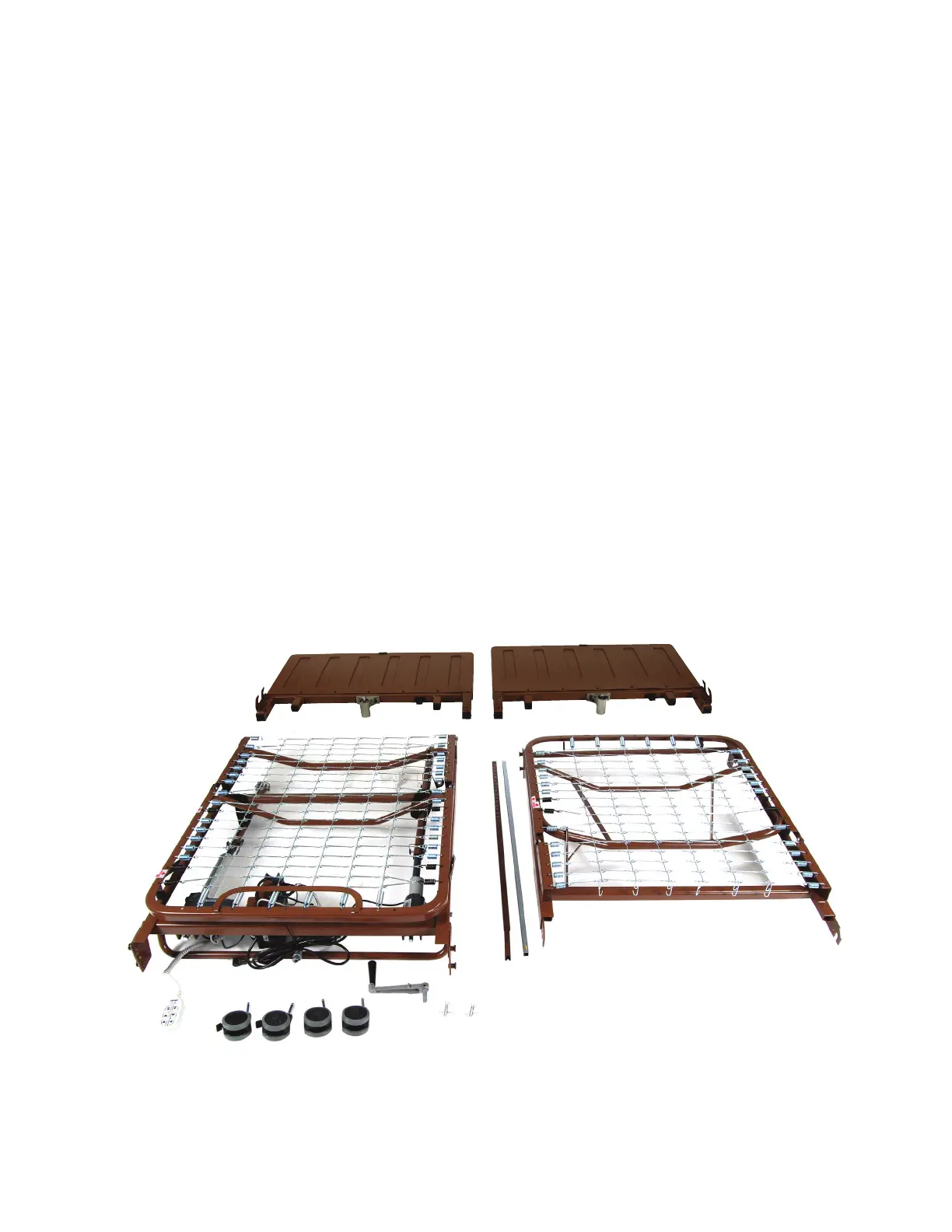

1 Conrm that all parts are present:
15005LP
A. Foot Spring w/
• 3 motor/actuators
• Junction Box
• Hand Pendant
• Power cord & plug
B. Head Spring
C. Low Height Head Board
D. Low Height Foot Board
E. Hi/Low Drive Shaft
F. Locking Pins (2)
G. Emergency Manual Hand Crank
H. Casters (4) – 2 locking, 2 non-locking
I. Head/Foot Pull Tube Transport Straps
A B
I
I
C
D
E
F
G
H
Caution: DO NOT attempt to operate bed controls until completion of assembly as damage to bed
components and/or personal injury may occur.
ASSEMBLY
15005LP
