40 | PACE Indicators Instruction Manual–English
Chapter 6. Reference
6.6.2.2 IEEE 488
Located on the rear panel an external IEEE 488 connection has the following configuration:
To configure the IEEE 488 connection:
1. Navigate to the supervisor communications configuration. Refer to Section 6.6.2.1,
“Navigating to Communications Menu,” on page 38.

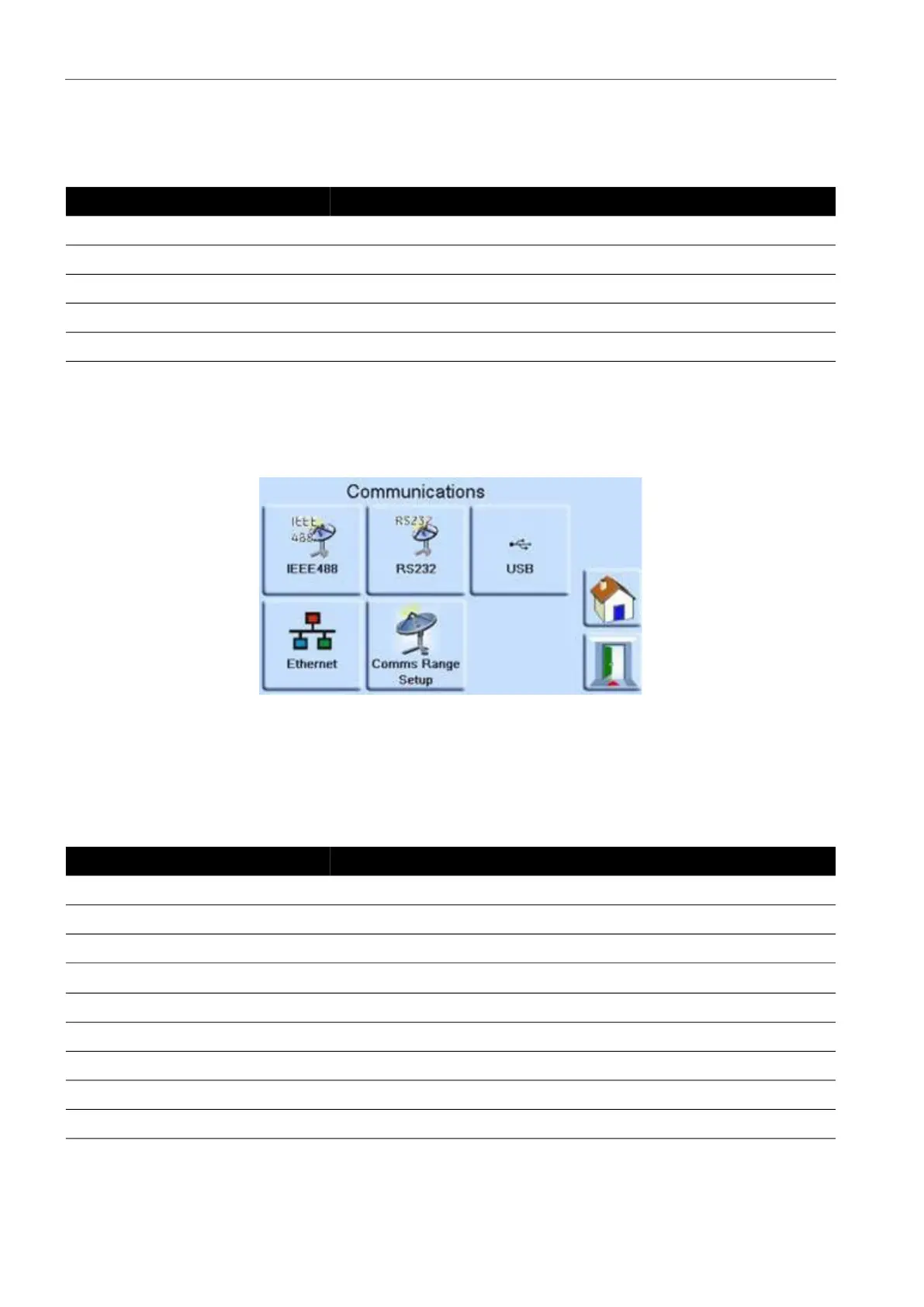

2. On the COMMUNICATIONS screen, select IEEE488.
3. On the IEEE488 PARAMETERS screen, use the Up and Down arrows to highlight and edit
the desired parameter.
6.6.2.3 RS-232
Located on the rear panel an external RS-232 connection has the following configuration:
Table 6-1: IEEE 488 Configuration Options
Item Description
Connector 24-way ‘D’ female wired as IEEE
488 standard.
Communications IEEE
488 GPIB
Default Address 16
Protocols SCPI
Heritage Emulation DPI 142/150, DPI 141
Table 6-2: RS-232 Configuration Options
Item Description
Connector 9-way ‘D’ female. For pin connections, refer to Table 2-3 on page 11.
Communications RS-232 point-to-point only. Daisy chain is not supported.
Baud Rate Power-up Default 9600, no parity, handshake = Xon/Xoff
Baud Rates Selectable
a
a. Selectable through the user interface.
2400, 4800, 9600, 19k2, 38k4, 57k6, 115k2
Parity None, Odd, Even
Flow Control None, Hardware, Xon/Xoff
Protocols SCPI
Heritage Emulation DPI 142/150, DPI 141
Terminator CR or LF or CR/LF
