Safety
Rear seat belts
Fastening
F Pull the strap, then insert the tongue in the
buckle.
F Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
F Press the red button on the buckle.
F Guide the seat belt as it reels in.
F On the outer seat belts, raise the bar to the
top of the backrest to prevent the tongue
from knocking against the side trim.

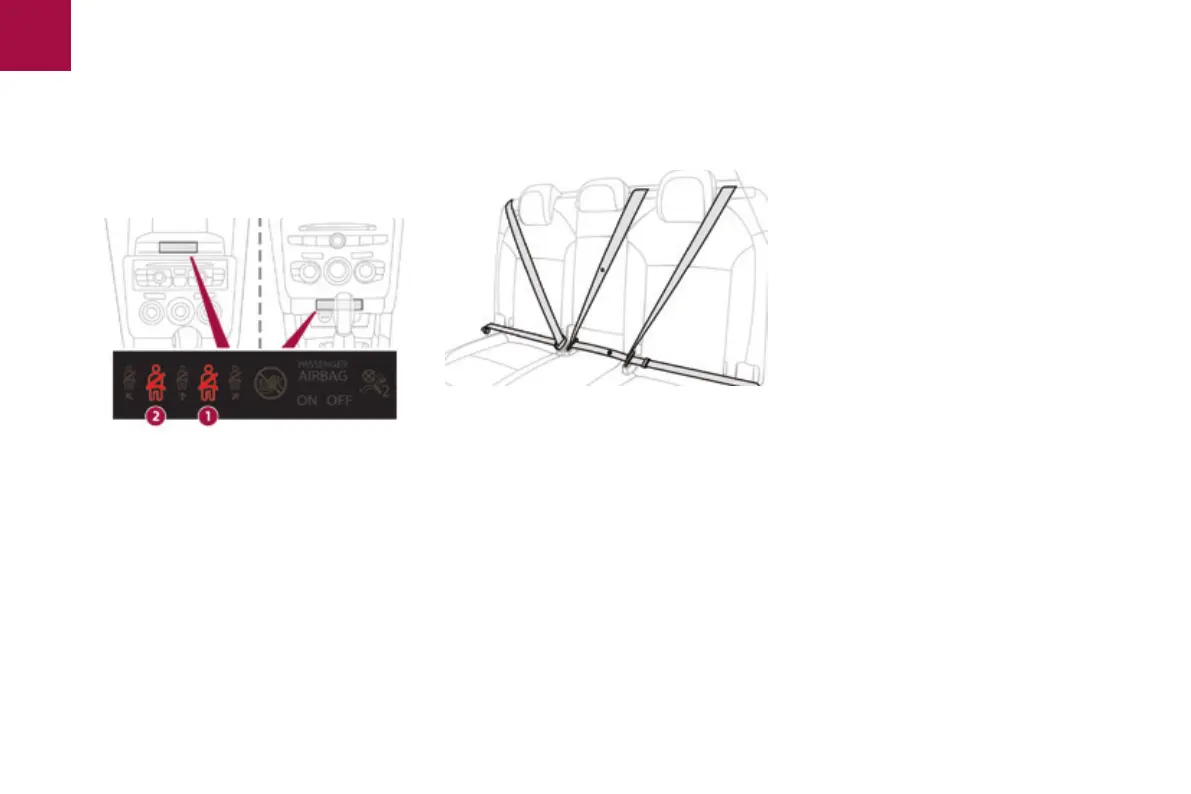

The rear seats are each fitted with a three-point
seat belt, with force limiter and, for the outer
seats, an effort limiter.
1. Driver's seat belt not fastened / unfastened
warning lamp.
2. Front passenger's seat belt not fastened /
unfastened warning lamp.
The corresponding warning lamp 1 or 2 comes
on in red on the seat belt and passenger's front
airbag warning lamps display, accompanied by
an audible signal and a message in the screen,
if the seat belt is not fastened or is unfastened.
Seat belt not fastened / unfastened
warning lamps display
