In the event of a breakdown

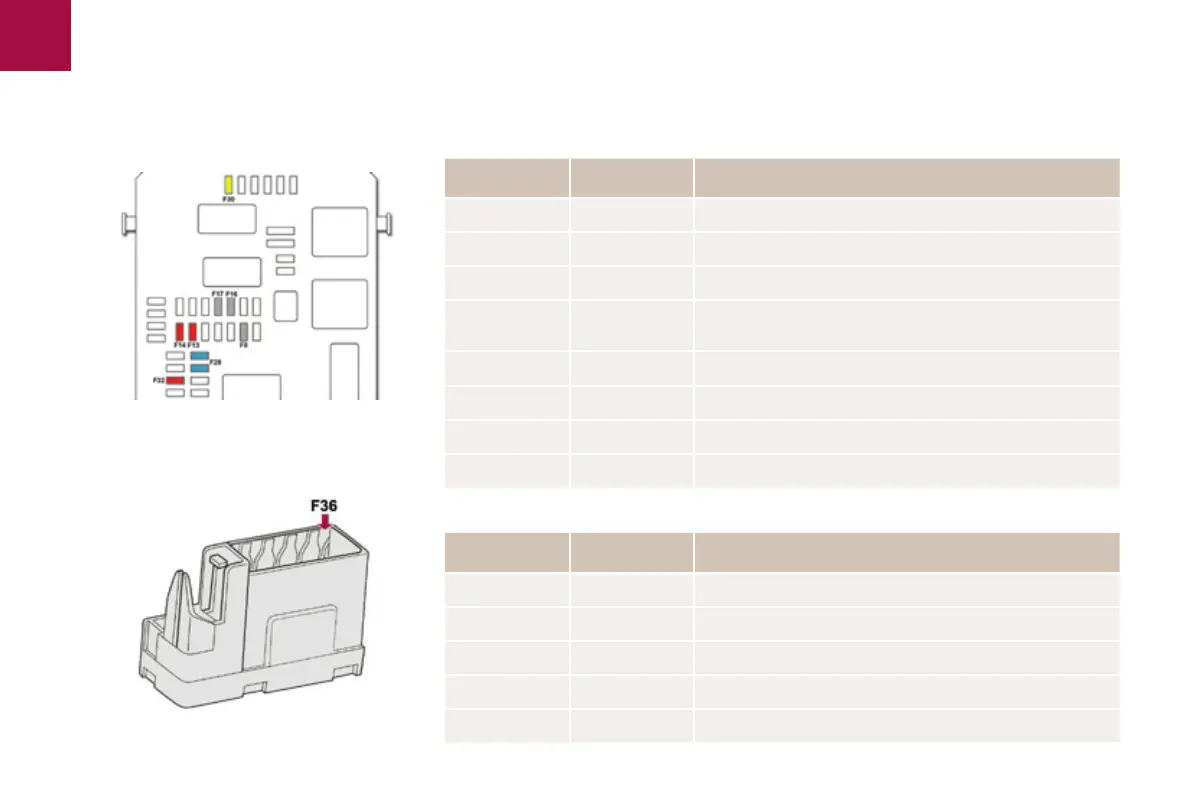

Fuse N° Rating Functions
F8 3 A Alarm siren, alarm ECU.
F13 10 A Cigarette lighter / Front 12 V socket.
F14 10 A 12 V socket in boot.
F16 3 A
Lighting for the large multifunctional storage unit, rear map
reading lamps, glove box illumination.
F17 3 A Sun visor illumination, front map reading lamps.
F28 15 A Audio system, radio (after-market).
F30 20 A Rear wiper.
F32 10 A Hi-Fi amplifier.
Fusebox 2
Fuse N° Rating Functions
F36 15 A Rear 12 V socket.
F37 - Not used.
F38 - Not used.
F39 - Not used.
F40 25 A 230 V / 50 Hz socket.
Fuse tables
Fusebox 1
