DSC GS3125 Series User Manual

GS3125/GS3105 9
GG
GG
G

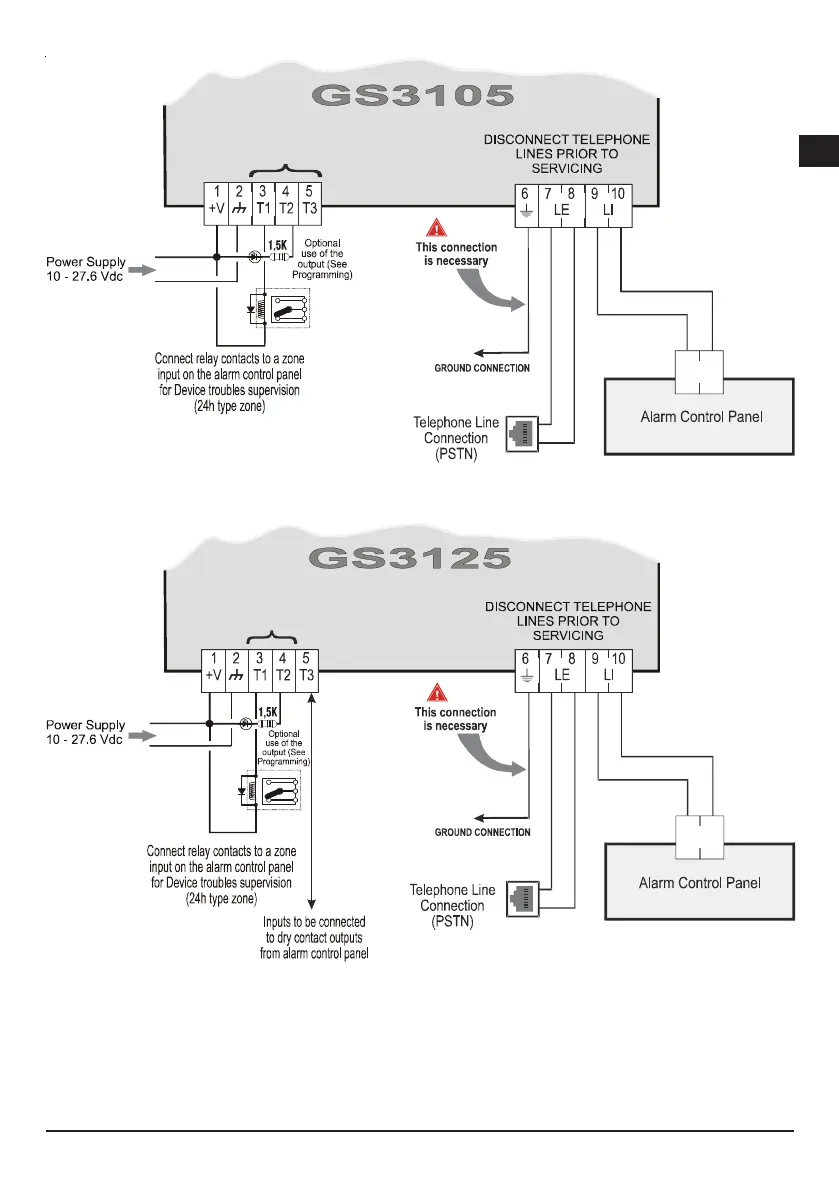

Fig. 3 - GS3105 and GS3125 wiring diagram
Open Collector Outputs
RJ-11
RJ-11
Relè
RM-1
Relè
RM-1
T
I
P
R
I
N
G
T
I
P
R
I
N
G
Example of the T1 and T2
programmed as
Open Collector Outputs
terminals
Term ina l T3
programmed
as Input Line
WARNING
Incorrect connections may result in FTC fault or improper operation. Inspect wiring and ensure connections are correct before applying power.
DO NOT route any wiring over circuit boards; maintain at least 1” (24.5 mm) separation. A minimum 1/4” (6.4 mm) separation must be
maintained at all points between Power Limited wiring and all other Non-Power Limited wiring.

DSC GS3125 Series Specifications

General

Brand	DSC
Model	GS3125 Series
Category	Cell Phone
Language	English
