DSE7200 / 7300 Series Operators Manual
117

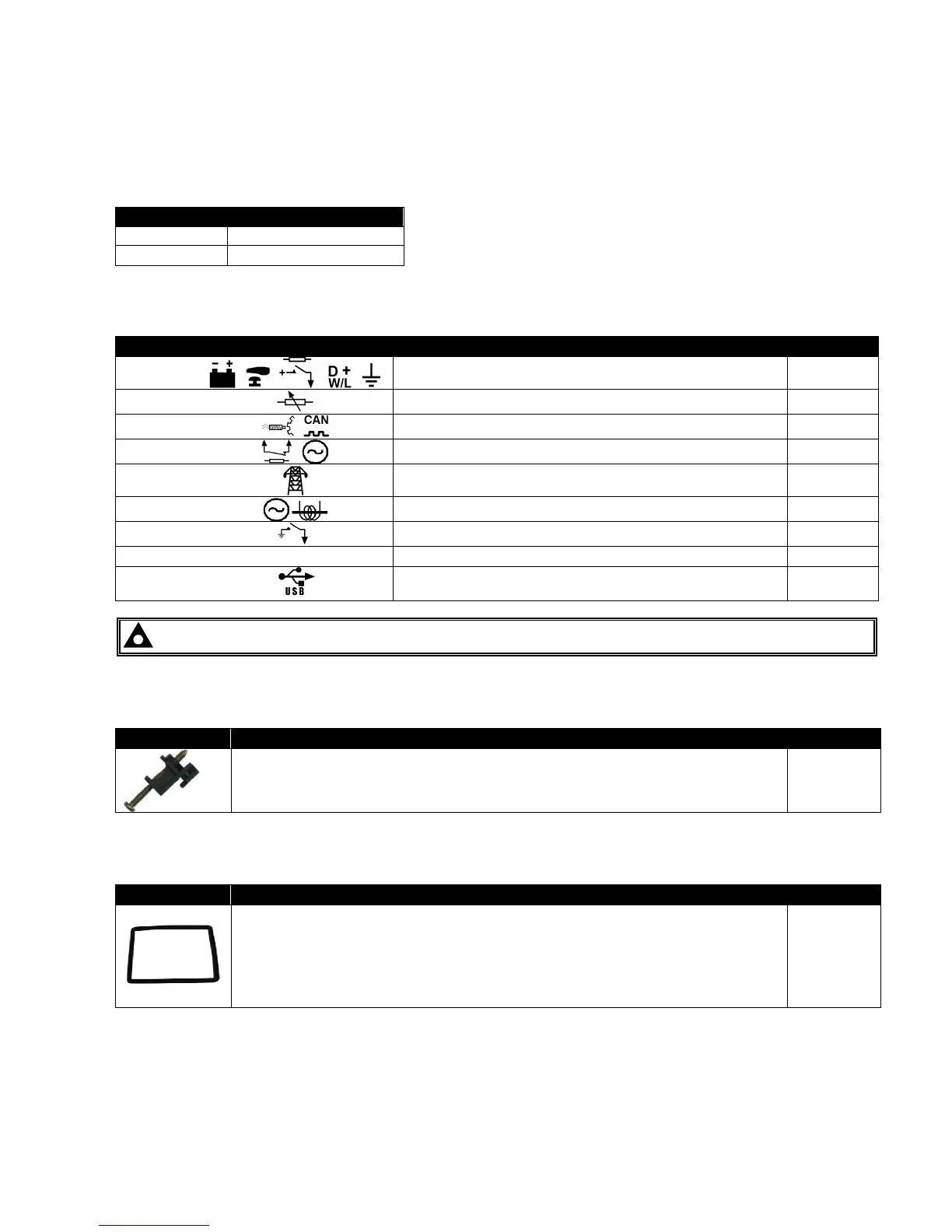

11.1.2 DSE7300 SERIES
If you require additional plugs from DSE, please contact our Sales department using the part numbers below.
11.1.2.1 PACK OF PLUGS
Module type Plug Pack Part Number
DSE7310 057-513
DSE7320 007-514
11.1.2.2 INDIVIDUAL PLUGS
7000 series terminal designation Plug description Part No.
1-11
11 way 5.08mm 007-451
15-19
5 way 5.08mm 007-445
22-30
9 way 5.08mm 007-167
39-46
8 way 7.62mm 007-454
47-50
4 way 7.62mm (Not fitted to DSE7310) 007-171
51-56
6 way 5.08mm 007-446
60-67
8 way 5.08mm 007-164
RS485
3 way 5.08mm 007-174
PC Configuration interface lead
(USB type A – type B)
016-125
NOTE:- Mains sensing (Terminals 47-50) is not fitted on DSE7310 autostart controller.
11.2 PURCHASING ADDITIONAL FIXING CLIPS FROM DSE
Item Description Part No.
7000 series fixing clips (packet of 4) 020-294
11.3 PURCHASING ADDITIONAL SEALING GASKET FROM DSE
Item Description Part No.
7000 series silicon sealing gasket 020-507
