DSE7200 / 7300 Series Operators Manual

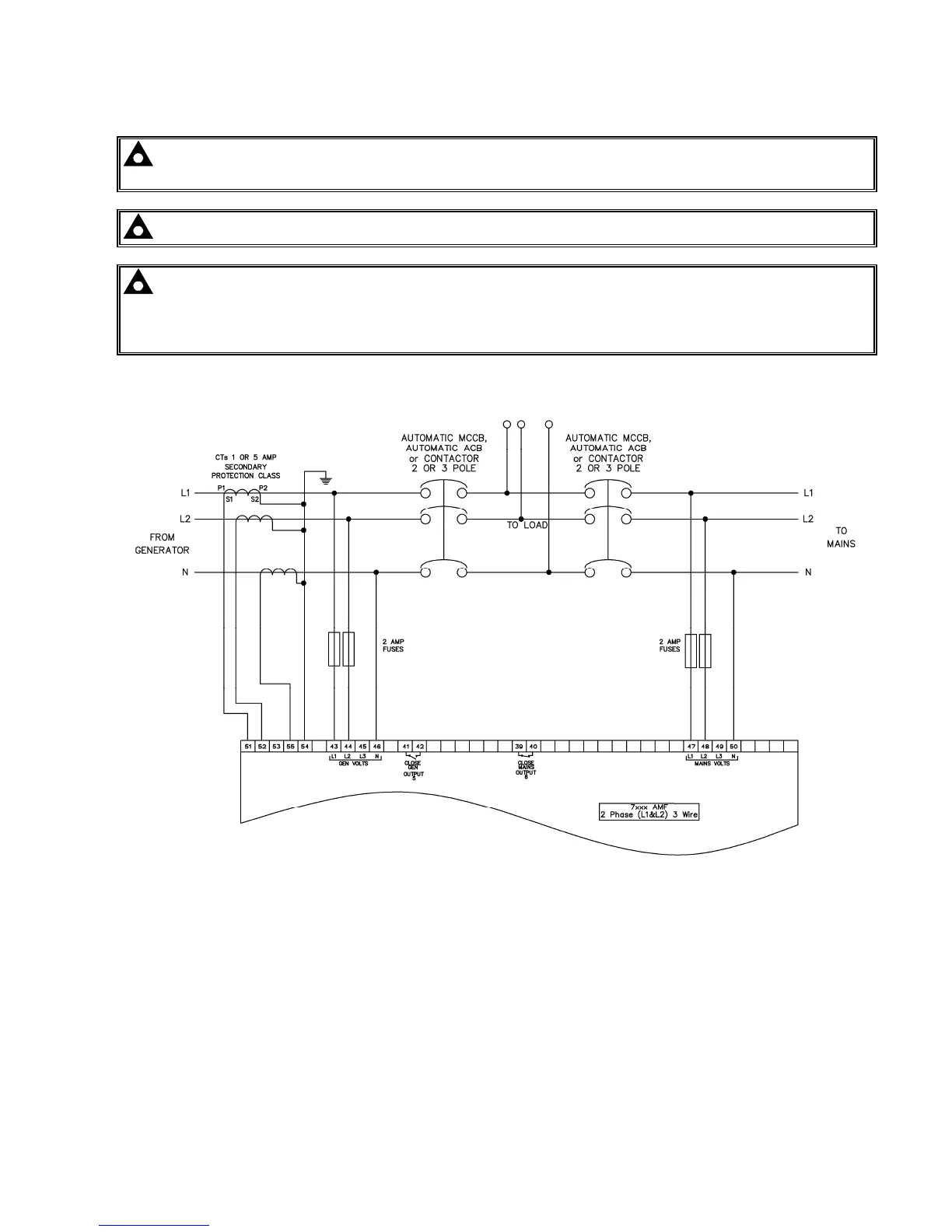

4.4.4 2 PHASE (L1 & L2) 3 WIRE WITH RESTRICTED EARTH FAULT

NOTE:- Earth fault protection alarm only available on 7300 series V2.0 and above controllers. 7300

series V1.x.x modules have Earth fault measuring only (no protection alarms).

NOTE:- Mains sensing (Terminals 47-50) is not fitted to DSE7210/ DSE7310 autostart controllers.

NOTE:- Earthing the neutral conductor ‘before’ the neutral CT allows the module to read earth faults

‘after’ the CT only (Restricted to load / downstream of the CT)

Earthing the neutral conductor ‘after’ the neutral CT allows the module to read earth faults ‘before’ the CT

only (Restricted to generator / upstream of the CT)
